PCD7.L310 Analogue module with 4 inputs each, Ni1000 and 0...10 VDC
Description
The RIO module was developed as a S-Bus data node for local switching tasks. Via a DDC of the type PCDx / PCS1 temperatures of -50°C to 150°C and/or voltages
of 0...10 VDC can be read. Two address switches (×1 / ×10) on the front panel allow module addressing and identification. Addresses can be set between 00 and 99.
Up to 100 RIO modules and a maximum of 3 PCD stations can be connected to one bus branch simultaneously. If the bus cycle time is critical, fewer than 30 slaves should be
operated in one segment.
Technical data
Bus system
S-Bus
Transmission rate
1200... 38400
Transmission mode
Parity / Data
Bus length max.
1200 m (without repeater)
Nominal voltage UN
18 VDC...32 VDC / 20 VAC...28 VAC
Current consumption
<20 mADC / <30 mAAC
Power consumption
0.5 W / 0.7 VA
Relative duty cycle
100 %
Reaction time
20 ms
(from receive data to
send data reaction)
Recovery time
< 3 s
Operating temperature range
0°C... +55°C
Storage temperature range
-25°C...+70°C
Protective wiring
Reverse battery protection of service voltage
Reverse battery protection of supply and bus
EMC according to DIN EN 61000-6-2
Function indicator
Green LED for bus activity
Status indicator
Red LED for bus error message
Signal inputs
Sensor types
4 x Ni1000, 2 wire measurement
Temperature range
-50°C..+150°C /according to HEVAC
(accuracy +/-0.1°C)
Voltage range
4 x 0...10 VDC (accuracy 10 mV)
Data range
0...1000 (2 comma stages)
Housing
Protection class
Housing IP50 / Terminals IP20
Humidity class
F (DIN 40040)
2
Connection cross-section
2.5 mm
Plug-in terminal
1.0 mm
2
Mounting position
any
Weight
95 g
Housing dimensions
W×H×D: 35 × 70 × 74 mm
Joined without spacing
After 15 modules have been joined in
sequence or a maximum supply current of 2 A (AC or DC)
per port on the powersupply, the external supply voltage must be reapplied.
Data transmission
All S-Bus instructions (level 1) are recognized. Instructions that have no function in the device are answered with <NAK>. The module has integral, automatic baud rate and
transmission mode recognition.
Display Register"
Register 1 to 4 and 11 to 14 can be called together
Adresse
Information
1
Temperature 1 (devided with 10 => Temp.)
2
Temperature 2 (devided with 10 => Temp.)
3
Temperature 3 (devided with 10 => Temp.)
4
Temperature 4 (devided with 10 => Temp.)
„Display Register"
Address
Information
5
Baud rate (plain text => kBit/s)
6
Module address
7
Status register
8
Bus timer
9
Current transmission mode (data / parity)
10
Bus error counter (divided into 4 bytes)
The following registers can be called together
(Display Register "x" to "y") 1 to 4 / 5 to 7 / 8 to 10 / 11 to 14
"Write Register"
Address
Value
Baud rate setting (Baud kbit/s)
5
4
1 200
5
2 400
6
4 800
7
9 600
8
19 200
9
38 400
Address
Value range
Meaning
8
2 <-> 20
20 <-> 200 ms
Bus timer (register 8)
The value displayed indicates how long the module waits until a telegram is complete. The time is shown in 10 ms steps (e.g.: value 20 => a time of 200 ms). The recommended
time is 100 ms, i.e. a register value of 10. If the time is reduced, modules will react faster to telegrams from the master. If there is a heavy load on the master station, a bus timer
setting that is too low may lead to lost telegrams. Times of less than 20 ms (value 2) are not permitted.
Times that reach the master station within 20 ms of the timeout will lead to lost connections. The value is stored in EEPROM and protected against voltage loss. ( Factory setting : 2)
"Write Register"
Address
Value
Meaning
9
1
Parity mode
2
Data mode
(factory setting)
Address
Value
Meaning
10
0
Reset of error
count register
Saia-Burgess Controls AG
Bahnhofstrasse 18
3280 Murten / Switzerland
T+ 41 026 580 30 00
www.saia-pcd.com

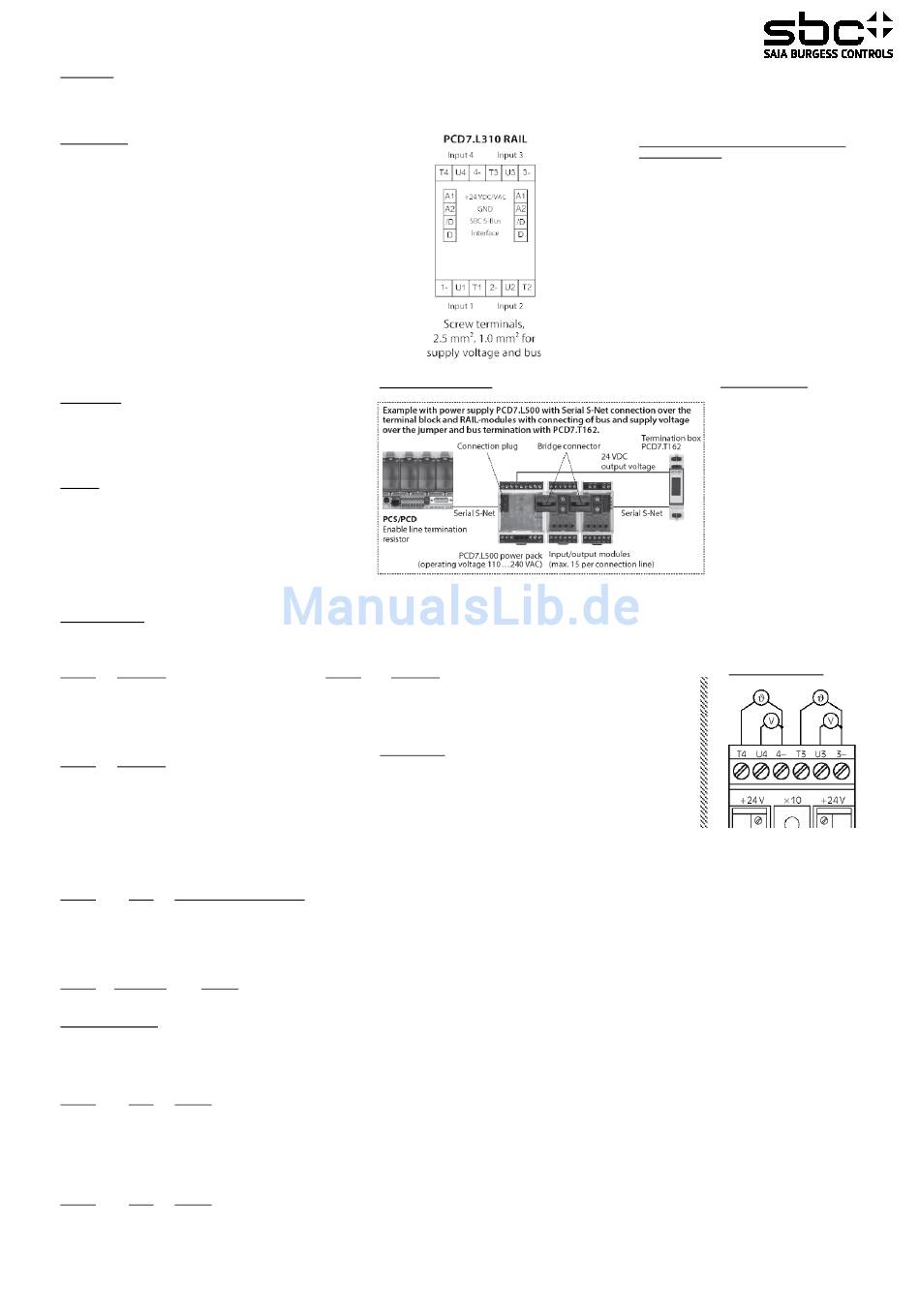

Supply and Bus concept
(terminals)
(screw-type)
Adresse
Information
11
Voltage 1 (devided with 100 => Voltage value)
12
Voltage 2 (devided with 100 => Voltage value)
13
Voltage 3 (devided with 100 => Voltage value)
14
Voltage 4 (devided with 100 => Voltage value)
Status register:
Bit 0:
Bit 1:
Bit 2:
Bit 3:
Bit 5:
Bit 8:
Bit 9:
Bit 10:
All other bits are reserved for factory tests.
"Write Output"
The write output instruction at address 255 is recognized as broadcast message.
Automatic baud function: "Write or Display output 255" (1 = autobaud active / 0 = autobaud inactive)
N.B:
After a power failure, the last baud rate set will be reinstalled.
The autobaud function must not be turned on permanently, but only on the commisioning. At the condition as
supplied to the customer, the autobaud is turned on, to adjust the device automatically to the system. But after the
commisioning it has to be switched-off via bus command.
For further information on the use of modules linked to S-Bus, including all restrictions,
see documentation 26/339 EN
1= Device recognized last transmission
0= Device did not recognize last transmission
1= Last transmission was a broadcast
0= Last transmission was not a broadcast
1= Last transmission came from master
0= Last transmission came from a slave
1= CRC of last message was correct
0= CRC of last message was incorrect
1= Device has executed an internal reset
0= Device function is OK
1= Internal bus to EEPROM is OK
0= Internal bus not working perfectly
1= EEPROM data memory is OK
0= EEPROM data memory is faulty
1= Baud rate uploaded from EEPROM
0= Baud rate is at default value (9600 Bd.)
Mounting and commissioning to be conform with
current regulations:
1.
Power-off the installation
2.
Place module onto 35 mm tophat rail and press
down to engage.
3.
Strip insulation from 7mm of cable (max. single
2
2
wire 4 mm
, fine strand 2.5 mm
, diameter
0.3 mm to 2.7 mm), insert into binding and
tighten with a screwdriver.
Connect supply voltage and field bus to plug-in screw
terminal.
Caution!!
Plug-in terminal has max. 1.0 mm
2
connection
cross-section. Check correct connection of bus
lines and supply.
Operational safety:
Please take care to following points
for a safety operation:
- Maximal cable length
- S-Bus member and segment
division
- Potential compensation by one
single grounding of power supply
- Termination of both network sides
- Cable shield grounding on one
side only.
Connection example
4764/899054-08
26-025 ENG05 04-2016
