Changing table
4. Assembling the changing table

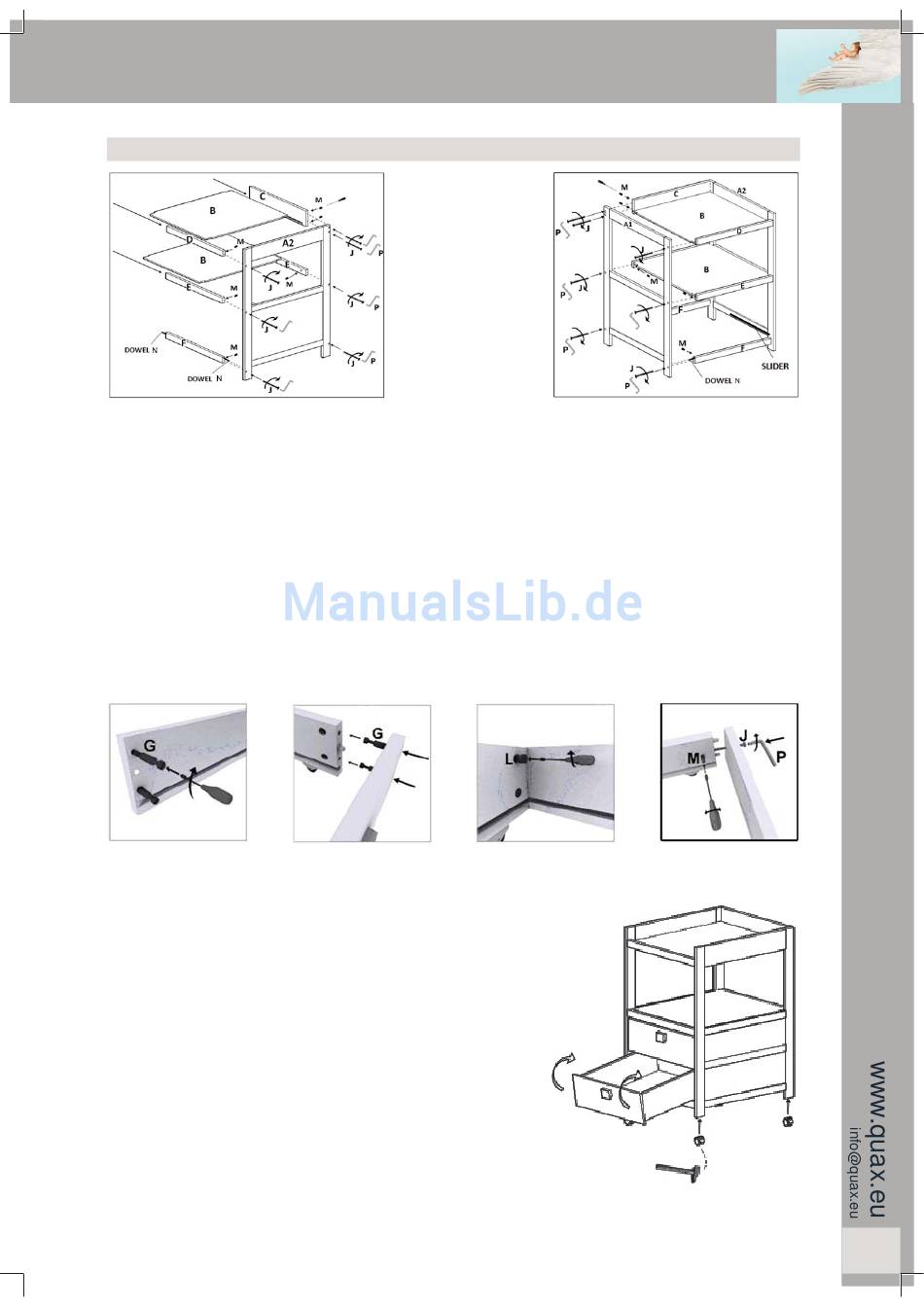

Step 1 : Use the right legframe A2, the shelves B, the back C, the crossbars D-E-F, seven bolts J, seven
cylindrical nuts M, four wooden dowels N and the hexagonal key P
Insert the cylindrical nuts (M) in the openings of the back (C) and the crossbars (D-E-F). Push the wooden
dowels (N) in the drillings at the ends of the crossbars (F). Push the bolts (J) in the drillings of the legframe
(A2) and connect the parts by means of the hexagonal key (P). Please note to align the opening in the
cylindrical nut with the bolt. Do not fully tighten the connections. Slide the shelves into the slots in the back
and crossbars.
Step 2 : Use the parts of step 1, the left legframe A1, seven bolts J, seven cylindrical nuts M and the hexa-
gonal key P
Insert the cylindrical nuts (M) in the openings of the back (C) and the crossbars (D-E-F). Push the bolts (J)
in the drillings of the legframe (A1) and connect the parts by means of the hexagonal key (P). Do not fully
tighten the connections.
Step 3 : Use the parts X1-X2-X3 and X4 for the drawer, the con-
nectors G, the eccentrics L, four bolts J, four cylindrical nuts M
and twelve wooden dowels N
Tighten the connectors (G) in the provided openings of the dra-
werfront (X1). Insert the eccentrics (L) in the drillings at the front
of the sides (X2). Push four wooden dowels (N) in the drillings at
the back of the sides (X2) and two at the front. Insert the cylindrical
nuts (M) in the openings of the sides. Slide the bottom (X4) into
the slots in the sides and the front. Push the back (X3) over the
wooden dowels, insert the bolts (J) and tighten with the hexagonal
key. Insert the drawer by integrating the slider parts. Now tighten
all connections.
Step 4 : Use the parts of step 3 and the 4 wheels O
Insert the adapters for the wheels in the provided openings at the
bottom of the legframes (A1 and A2) and push the wheels (O) into
place.
