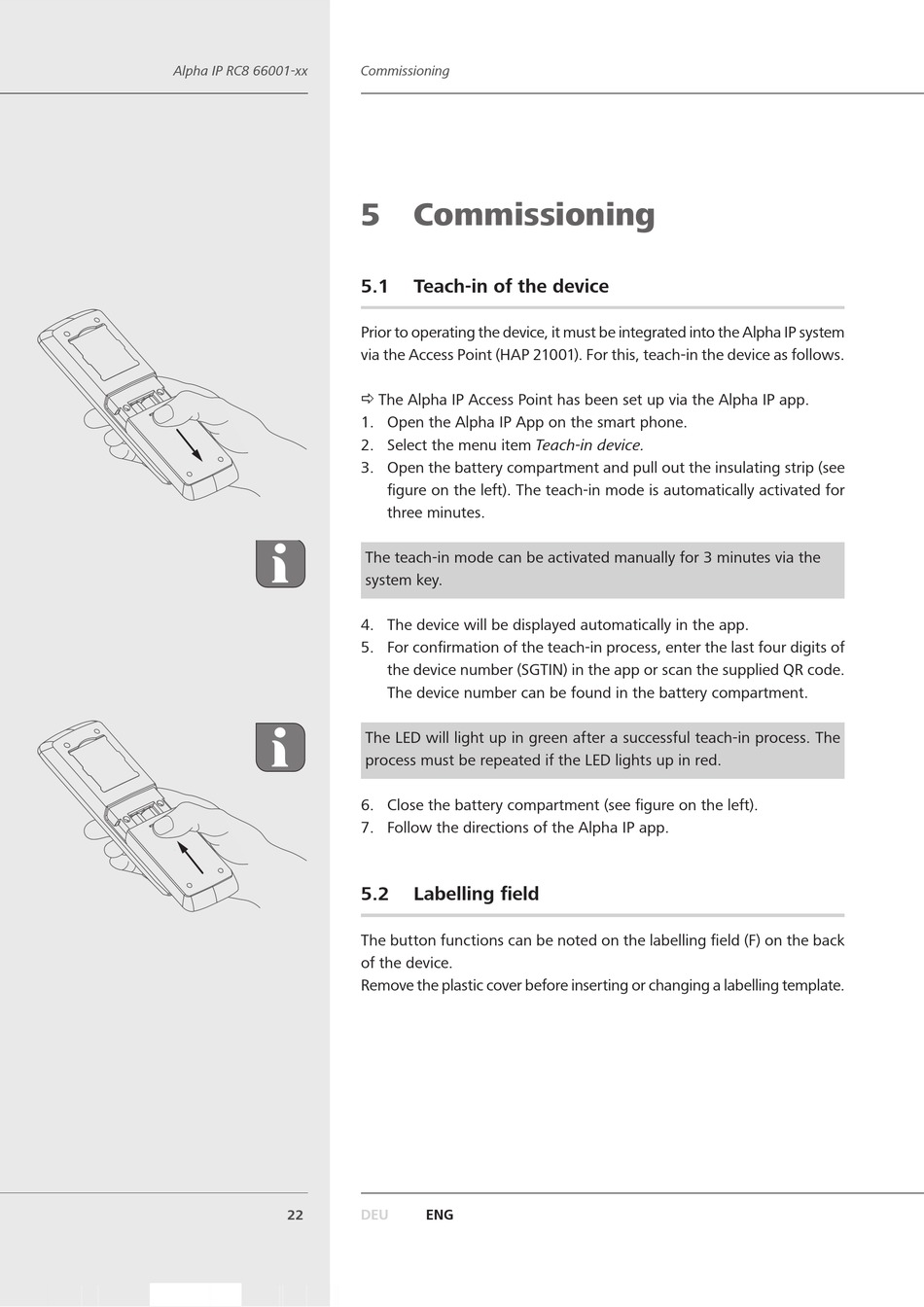

Commissioning

5 Commissioning
5.1

Teach-in of the device

Prior to operating the device, it must be integrated into the Alpha IP system
via the Access Point (HAP 21001). For this, teach-in the device as follows.
Ö The Alpha IP Access Point has been set up via the Alpha IP app.
1. Open the Alpha IP App on the smart phone.
2. Select the menu item Teach-in device.
3. Open the battery compartment and pull out the insulating strip (see
fi gure on the left). The teach-in mode is automatically activated for
three minutes.
The teach-in mode can be activated manually for 3 minutes via the
system key.
4. The device will be displayed automatically in the app.
5. For confi rmation of the teach-in process, enter the last four digits of
the device number (SGTIN) in the app or scan the supplied QR code.
The device number can be found in the battery compartment.
The LED will light up in green after a successful teach-in process. The
process must be repeated if the LED lights up in red.
6. Close the battery compartment (see fi gure on the left).
7. Follow the directions of the Alpha IP app.
5.2 Labelling fi eld
The button functions can be noted on the labelling fi eld (F) on the back
of the device.
Remove the plastic cover before inserting or changing a labelling template.
