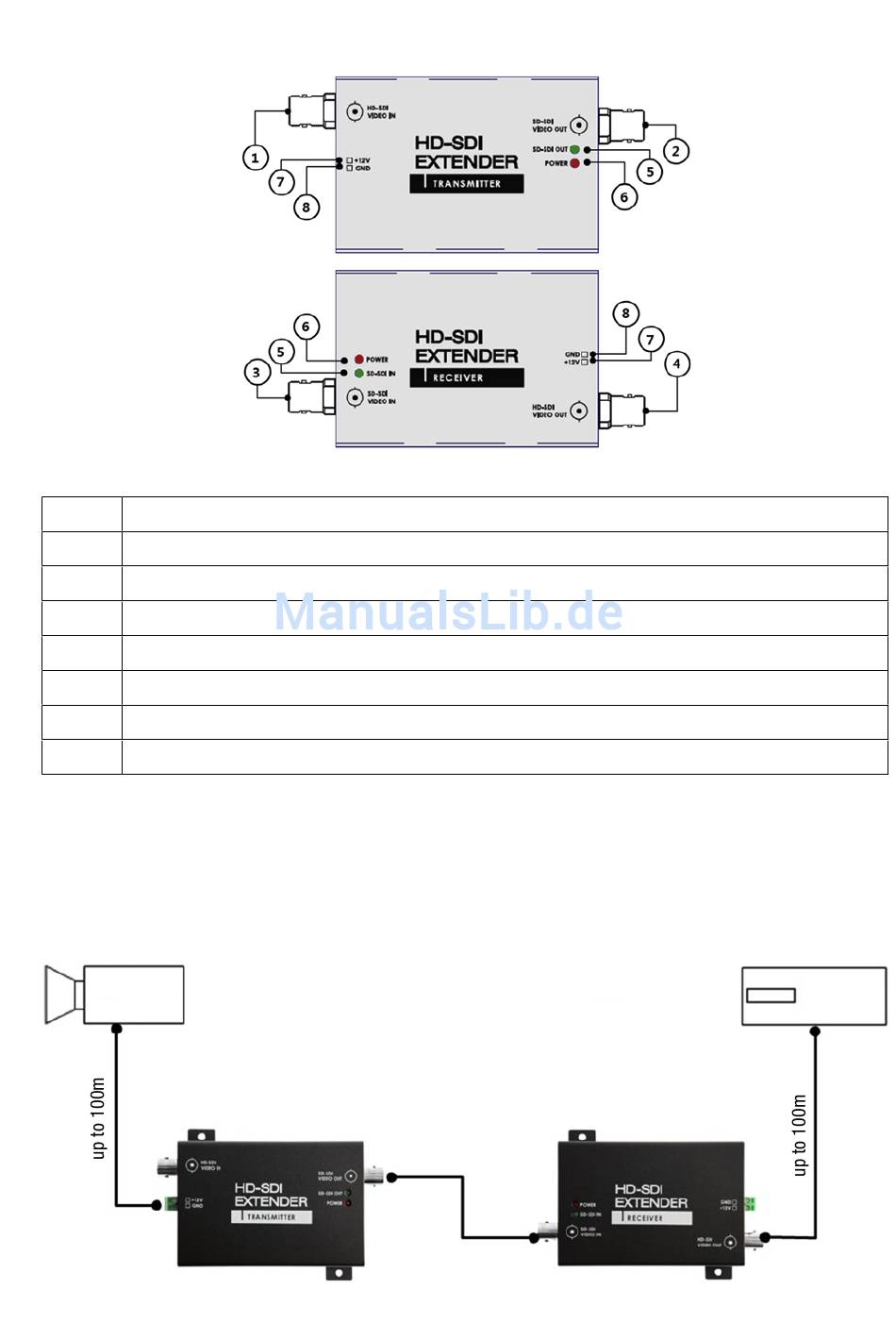

3. Hardware Overview
1
HD SDI signal in (720P, 1080P)
2
Converted analogue signal out
3
Converted analogue signal in
4
HD SDI signal out (720P, 1080P)
5
Green lamp on when the input cable connected
6
Red lamp on when power on
7
Power DC 12V + input
8
Power DC 12V – (ground) input
4. Extender Configuration
HD-SDI
Camera
up to 300m
HD-SDI
DVR
