2.3 Digital display

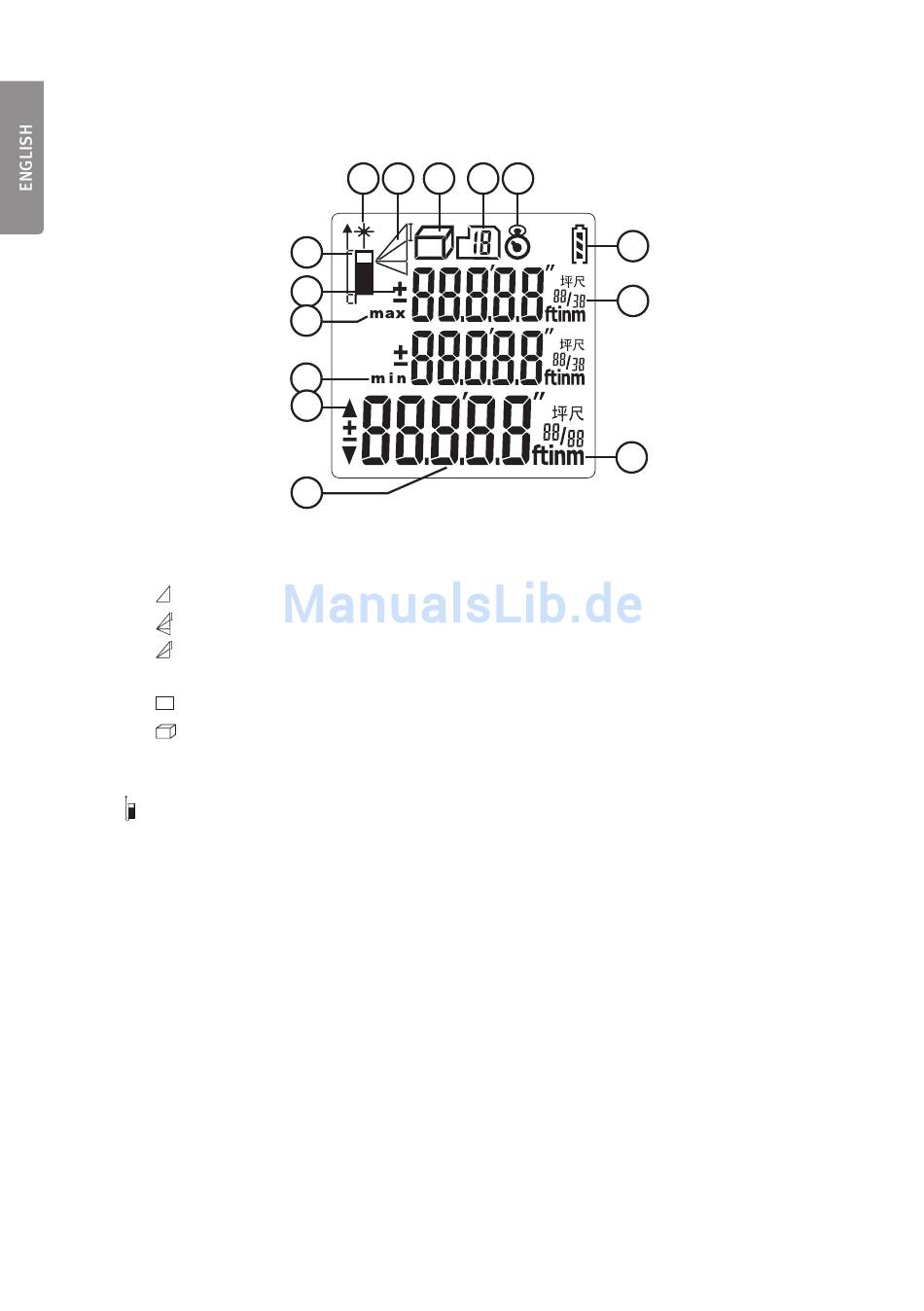

The chosen function is shown on the display.
15. The laser icon will be displayed if the laser pointer is on.
16. Indirect measurement.
• Pythagoras theorem measurement.
• Sum of two Pythagoras theorem measurements.
• Subtracting one Pythagoras measurement from another.
17. Measuring functions
• Area measurement
• Volume measurement
18. Number of saved readings.
19. Timer set measurement
20. Selected measuring reference point.
21. Shows any result added or subtracted from the previous measurement.
22. Max display for continuous measurement.
23. Min display for continuous measurement.
24. Displays the measuring direction between studs.
25. Main screen which displays both measurement results and units.
26. Battery status, battery symbol shows empty when it needs changing.
27. Upper display area shows measuring results and units.
28. Displays the selected unit of measurement.
