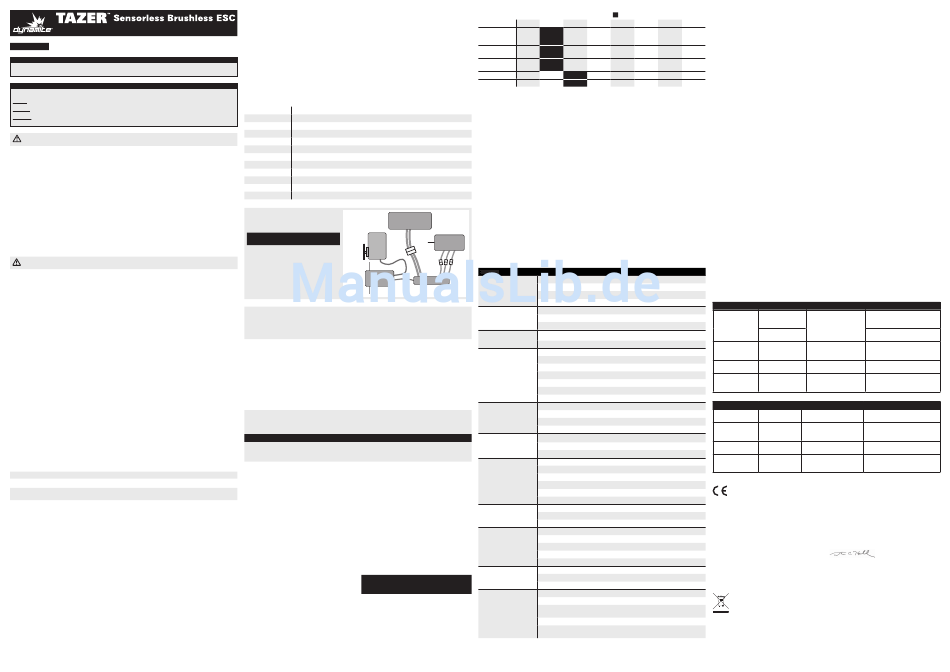

English
notice
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-
date product literature, visit horizonhobby.com and click on the support tab for this product.
Meaning of Special language
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
notice: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
caution: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WarninG: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR
create a high probability of superficial injury.
WarninG: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure
to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is
not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment
product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is
essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and
avoid damage or serious injury.
age recommendation: not for children under 14 years. this is not a toy.
Waterproof coMponent
Your new Horizon Hobby ™ Dynamite ® Tazer ™ Sensorless Brushless ESC has been designed and built to allow you to operate the product in
many "wet conditions", including puddles, creeks, wet grass, snow and even rain.
While waterproof, this component has not been designed to be immersed in water for long periods of time and should NOT be treated like a
submarine. In addition, most metal parts, including any screws and nuts, as well as the contacts in the electrical cables, will be susceptible to
corrosion if additional maintenance is not performed after running in wet conditions.
To maximize the long-term performance of your Dynamite Tazer Sensorless Brushless ESC and to keep the warranty intact, it should only be
used as described in the "Usage Conditions" section of this manual. Additionally, the procedures described in the "Wet Conditions Mainte-
nance" section must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and
maintenance required, then you should not operate your vehicle in those conditions.
caution: Failure to exercise caution while using this product and comply with the following precautions could result in product
malfunction and/or void the warranty.
General precautionS
• Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your
Dynamite Tazer Sensorless Brushless ESC.
• Do not operate your Dynamite Tazer Sensorless Brushless ESC where it could come in contact with salt water (ocean water or water on
salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.
uSaGe conditionS
Your Dynamite Tazer Sensorless Brushless ESC will operate successfully in any of the following, individual-usage scenarios:
• 2 hours continuous operation in dew-covered (damp) grass or vegetation.
• 2 hours continuous operation in heavy fog (95% humidity, saturated air, condensing water).
• 1 hour continuous operation in light rain (< 0.10 in/2.5mm per hour).
• 15 minutes continuous operation in heavy rain (> 0.30 in/7.6mm per hour).
• 1 hour continuous operation in light sleet (< 0.10 in/2.5mm per hour).
• 1 hour continuous operation in light snow (< 0.25 in/6.35mm per hour).
• 45 minutes continuous operation in standing or running fresh water (the water level should always remain below the vehicle frame), or
constant splashing water, without any immersion of waterproof component(s).
• 5 minutes continuous operation in standing or running fresh water (the water level should never rise higher than 0.5 in (about 10 mm)
above the vehicle frame), constant splashing water, or frequent, intermittent immersion of waterproof component(s).
• 1 hour continuous operation in damp sand, dirt, mud or snow (the material level should always be below the vehicle frame), constant splat-
ter without any immersion or coverage of waterproof component(s).
Furthermore, when appropriate maintenance procedures (as described below) are performed promptly following exposure, the Dynamite Tazer
Sensorless Brushless ESC will remain best protected from corrosion or other long-term, water-related damage.
Wet conditionS Maintenance
• Gently rinse the mud and dirt off the Dynamite Tazer Sensorless Brushless ESC with a garden hose.
• Remove the battery pack(s) and dry the contacts.
• If you have an air compressor or a can of compressed air available, blow off the Dynamite Tazer Sensorless Brushless ESC to help remove
any water that may have gotten into small crevices or corners. Dry any water that may be inside a recessed connector housing.
• Let the Dynamite Tazer Sensorless Brushless ESC air dry before you store it. Water may continue to seep or evaporate out of tight areas for
a few hours.
notice: Never use a pressure washer to clean your vehicle.
this eSc is waterproofed for use in wet conditions. Make sure the other components in your vehicle are waterproof or
waterresistant before driving in wet conditions.
Thank you for choosing the Dynamite ® brand. We know that you, the customer, are the reason we are in business. Your satisfaction is our
number one priority. With this in mind, we have produced this product to be of the highest quality, performance and reliability, and at a "value
packed" price. We hope it provides you with hours of enjoyment in your next RC project.
DYN4940
featureS
• Compatible with Ni-Cd/Ni-MH and Li-Po/Li-Ion batteries
• Pre-wired with bullet-style motor connectors, EC3 ™ battery connector and a universal receiver plug that fits most popular radio systems
• Designed to operate with sensorless brushless motors
• Basic set up and programming through the SET button
• Designed for on-road and off-road use
• High-precision speed and power control
• High-power, built-in BEC system for stable receiver and servo power supply
• Forward and reverse function
• Adjustable settings in the ESC for fine control of vehicle operation
• Multiple protection systems: battery low voltage cutoff, overheating, radio signal loss, stuck or locked motor or driveline
SpecificationS
Type Sensorless/Waterproof
Constant/Peak 45A/290A
Resistance 0.0012 Ohm
Function Forward/Brake-Forward/Brake Reverse
Vehicle Type 1/10 Buggy or Truggy/1/10 on-road and off-road
Operation Proportional forward, proportional reverse with braking delay
Battery Type/Input Voltage 2–3 cell Li-Po/Li-fe or 4–9 cell Ni-MH/Ni-Cd
Motor Type 2S Li-Po up to 6000Kv on-road/4000Kv off-road; 3S Li-Po up to 4000Kv on-road/2500Kv off-road
BEC Output 6V/3A
Overload Protection Thermal
Dimensions (LxWxH) 48mm x 35.2mm x 35.2mm
Weight 74 g with wires
MountinG the Speed control
WirinG diaGraM—
1. Mount the ESC in the location specified by your
BruShleSS MotorS
Motor Battery
vehicle's instruction manual. Use double-sided foam
tape to secure the speed control in position.
tip: Ensure all wiring connections can be reached prior
to mounting.
Steering
Servo
2. Use double-sided foam tape to secure the switch to a
convenient location in the vehicle.
CH1
Receiver
CH2
Quick Start Guide
The quick start setup guide will get you running quickly using the 3. Connect the ESC receiver lead to CH2 on your receiver.
ESC's default settings. 4. Ensure the ESC switch is OFF.
1. Mount the ESC and motor in the car.
2. Connect the ESC to the motor.
eSc led StatuS audiBle WarninG toneS
• No ESC LEDs will glow when there is no throttle input from the 1. Input voltage: The ESC checks the input voltage when it is pow-
transmitter ered on. If a voltage problem is detected, the ESC continuously
• The red ESC LED glows when there is any throttle input from the sounds 2 beeps with a 1 second pause (xx-xx-xx). Power off the
transmitter ESC and ensure the connections are secure and that the battery
power is not too low for safe operation.
2. Radio connection: The ESC checks radio signal input when it
is powered on. If a problem is detected, the ESC continuously
sounds 1 beep with a 2 second pause (x--x--x). Power off the
ESC and ensure the radio system is operating correctly.
connectinG the eSc
1. Connect the ESC terminal A to the motor's terminal A.
2. Connect the ESC terminal B to the motor's terminal B.
3. Connect the ESC terminal C to the motor's terminal C.
tip: If the motor turns in the wrong direction, reverse the connection of any 2 motor wires.
notice: Always disconnect the battery from the ESC when you have finished operating your vehicle. The ESC's switch only controls power
to the receiver and servos. The ESC will continue to draw current when connected to the battery, resulting in possible damage to the bat-
tery through over discharge.
eSc caliBration procedure eSc proGraMMinG procedure
Ensure proper ESC function by calibrating the ESC to your Programming is accomplished using the SET button on the on/off
transmitter inputs. switch.
1. Power off the ESC.
Programming the ESC:
2. Ensure your transmitter is powered on, the throttle is not
1. Connect a fully charged battery to the ESC.
reversed, the throttle trim is neutral and the throttle travel range is
2. Power on the ESC using the ESC switch.
at 100%. Disable any special functions such as ABS, etc.
3. Hold the SET button for 1 second until the green LED blinks, then
3. Press the SET button while powering on the ESC. Release the
release the SET button to enter programming mode.
button as soon as the red LED starts to flash.
4. Press and release the SET button as needed to get to the desired
4. Calibrate the throttle points by pressing the SET button once after
menu option (the Green LED will blink corresponding to the menu
each step.
item number).
• N eutral point (1 flash)—leave the throttle at rest, untouched
5. When at the desired menu item, press the SET button for 3
• F ull throttle (2 flashes)—pull the throttle fully back
seconds until the red LED blinks.
• F ull brakes/reverse (3 flashes)—push the throttle fully forward
6. Press the SET button to move among the settings based on
5. The motor will run 3 seconds after the last step is completed.
how many times the red LED blinks (Refer to the table for more
eSc functionS and ModeS information).
The ESC includes programming options so you can adjust the way 7. Save the setting by pressing the SET button for 3 seconds.
your vehicle performs. Refer to the included settings table to adjust 8. Power off the ESC switch and repeat the instructions above to
the ESC for your driving conditions. change other settings.
tip: If desired, the ESC programming can be returned to default
settings by powering on the ESC switch and pressing the SET
button for 5 seconds.
Programmable Value
Programmable Items 1 2 3 4
1 Running Mode Forward Forward/
with Brake Reverse
with Brake
2 Drag Brake 0% 5% 10% 15%
Force
3 Low Voltage non- 2.6V/Cell 2.8V/Cell 3.0V/Cell
Cutoff Threshold protection
4 Start Mode Level 1 Level 2 Level 3 Level 4
5 Max Brake Force 25% 50% 75% 100%
deScriptionS
1 running Mode
Forward Only with Brake
Intended for competition use, this mode allows only forward and brake controls.
Forward/Reverse with Brake
This mode is the basic all-around mode, allowing forward, reverse and brake controls. To engage reverse while moving forward, apply the
brake until the vehicle has come to a complete stop, release brake, then apply the brake again. While braking or in reverse, engaging the
throttle will result in the vehicle immediately accelerating forward.
2 drag Brake force
Adjusts the amount of brake automatically applied when the throttle is returned to the neutral position. This simulates the engine braking effect
of a full-scale vehicle, allowing improved turn-in and your vehicle's general response to controls.
3 low Voltage cutoff
This function helps to prevent battery over-discharge. The ESC continuously monitors the battery's voltage. If the voltage falls below the voltage
threshold for 2 seconds, the output power shuts off and the red LED flashes twice repeatedly.
The cutoff threshold calculation is based on individual Li-Po cell voltage. For Ni-MH batteries, if the voltage battery pack is higher than 9.0V,
it will be treated as a 3-cell Li-Po battery pack; if it is lower than 9.0V, it will be treated as a 2-cell Li-Po battery pack. Example: for a 8.0V
Ni-MH battery pack used with a 2.6V/cell threshold, it will be treated as a 2-cell Li-Po battery pack and the low-voltage cut-off threshold will
be 5.2V (2.6x2=5.2). Using the optional Digital Program Box (DYN3748), you can adjust the custom values for the cutoff threshold. Unlike the
preset values, custom cutoff values are for the total battery voltage, not individual cell voltage.
4 Start Mode (punch)
Sets the initial throttle punch when the car accelerates. Level 1 gives a very soft initial acceleration and level 4 gives a stronger initial ac-
celeration.
5 Max Brake force
Brushless
Adjusts the maximum braking force. A higher value provides stronger braking, but can also cause the wheels to lock, resulting in loss of
Motor
control of the car.
trouBleShootinG Guide
SyMptoM Solution
Recharge or replace battery
Speed Control
ESC switch powered on, but no
Ensure all connections are secure
motor function and no audible
Repair or replace ESC switch or ESC
tone
Ensure ESC programming for battery is correct for your battery
ESC switch powered on, but Ensure connections between ESC and receiver are secure
no motor function and ESC
Ensure transmitter is bound to the receiver
continuously sounds 1 beep
between 2 second pauses Ensure receiver antenna is not damaged
Change connections of any 2 motor wires to the ESC and ensure motor turns in the correct direction
Motor turns in the wrong direction
Change motor direction programming in the ESC
When red ESC LED flashes, recharge or replace battery
When green LED flashes, let motor and ESC cool, changing set up or gearing to avoid overheating
Ensure ESC programming is correct for voltage and battery
Motor stops Disconnect battery and let ESC cool
Ensure ESC programming is not causing overheating
Replace gearing
Ensure gearing is not causing overheating
Replace with a high-power battery
Replace battery
Motor accelerates irregularly
Replace damaged wiring
Adjust or replace gearing
Replace wiring or motor
Motor does not turn continuously
Ensure good reception between transmitter and receiver
in response to throttle
Replace ESC
Ensure all ESC programming matches your installed systems requirements for safety
Ensure all receiver connections are correct and secure
Test the motor apart from the vehicle system and repair or replace motor as needed
Steering servo operates but the
motor does not run
Recharge or replace batteries
Ensure all motor connections are secure
Adjust throttle travel or other throttle settings on the transmitter and the ESC
Ensure all connections to receiver are correct and secure
Steering and motor do not
Refer to manufacturer's instructions to repair or replace transmitter
function
Recharge or replace batteries
Recharge or replace batteries
Ensure ESC programming is correct for voltage and battery
Vehicle does not operate at full
Adjust transmitter settings, such as trim, throttle travel, etc.
speed
Ensure ESC settings are correct for system
Calibrate throttle control to ESC
Adjust transmitter settings, such as trim, throttle travel, etc.
Motor slows but will not stop Ensure ESC settings are correct for system
Calibrate throttle control to ESC
Repair or replace system antennas
Repair or replace damaged motor, wiring and electrical parts
Move receiver or adjust antenna location so that no metal parts are between the antenna and the
Decreased transmitter range transmitter
Recharge or replace batteries
Refer to receiver and transmitter manufacturer's instructions to adjust reception or change to a free
and open radio frequency
liMited Warranty
Default Settings
What this Warranty covers - Horizon Hobby, Inc. ("Horizon")
5 6 7 8 warrants to the original purchaser that the product purchased (the
"Product") will be free from defects in materials and workmanship at
the date of purchase.
What is not covered - This warranty is not transferable and does
not cover (i) cosmetic damage, (ii) damage due to acts of God, acci-
dent, misuse, abuse, negligence, commercial use, or due to improper
20% 25% 30% 40%
use, installation, operation or maintenance, (iii) modification of or to
any part of the Product, (iv) attempted service by anyone other than
3.2V/Cell 3.4V/Cell
a Horizon Hobby authorized service center, (v) Product not purchased
from an authorized Horizon dealer, or (vi) Product not compliant with
applicable technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES
NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DIS-
CLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETER-
MINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIRE-
MENTS OF THE PURCHASER'S INTENDED USE.
purchaser's remedy - Horizon's sole obligation and purchaser's
sole and exclusive remedy shall be that Horizon will, at its option,
either (i) service, or (ii) replace, any Product determined by Horizon
to be defective. Horizon reserves the right to inspect any and all
Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of purchase is
required for all warranty claims. SERVICE OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE
AND EXCLUSIVE REMEDY.
limitation of liability - HORIZON SHALL NOT BE LIABLE FOR
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN
ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR
ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no
event shall the liability of Horizon exceed the individual price of the
Product on which liability is asserted. As Horizon has no control over
use, setup, final assembly, modification or misuse, no liability shall
be assumed nor accepted for any resulting damage or injury. By the
act of use, setup or assembly, the user accepts all resulting liability. If
you as the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to
return the Product immediately in new and unused condition to the
place of purchase.
Law - These terms are governed by Illinois law (without regard to
conflict of law principals). This warranty gives you specific legal
rights, and you may also have other rights which vary from state to
state. Horizon reserves the right to change or modify this warranty
at any time without notice.
Warranty SerViceS
Questions, assistance, and Services - Your local hobby store
and/or place of purchase cannot provide warranty support or
service. Once assembly, setup or use of the Product has been
Warranty and SerVice contact inforMation
Country of Purchase Horizon Hobby
Horizon Service Center
(Electronics and engines)
United States of America
Horizon Product Support
(All other products)
United Kingdom Horizon Hobby Limited
Horizon Technischer
Germany
Service
France Horizon Hobby SAS
partS contact inforMation
Country of Purchase Horizon Hobby
United States of America Sales
United Kingdom Horizon Hobby Limited
Germany Horizon Hobby GmbH
France Horizon Hobby SAS
coMpliance inforMation for the european union
declaration of conformity (in accordance with ISO/IEC 17050-1)
No. HH2012060802
Product(s): Tazer brushless ESC
Item Number(s): DYN4940
The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of
the European EMC Directive 2004/108/EC:
en55022:2010
en55024:2010
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
June 08, 2012
instructions for disposal of Weee by users in the european union
This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment
by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.
©2012 Horizon Hobby Inc.
Dynamite and Tazer are trademarks or registered trademarks of Horizon Hobby, Inc.
Created 06/12
started, you must contact your local distributor or Horizon directly.
This will enable Horizon to better answer your questions and service
you in the event that you may need any assistance. For questions
or assistance, please visit our website at www.horizonhobby.com,
submit a Product Support Inquiry, or call 877.504.0233 toll free to
speak to a Product Support representative.
inspection or Services - If this Product needs to be inspected
or serviced and is compliant in the country you live and use the
Product in, please use the Horizon Online Service Request submis-
sion process found on our website or call Horizon to obtain a Return
Merchandise Authorization (RMA) number. Pack the Product securely
using a shipping carton. Please note that original boxes may be in-
cluded, but are not designed to withstand the rigors of shipping with-
out additional protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Horizon is not responsible
for merchandise until it arrives and is accepted at our facility. An
Online Service Request is available at http://www.horizonhobby.com/
content/_service-center_render-service-center. If you do not have
internet access, please contact Horizon Product Support to obtain
a RMA number along with instructions for submitting your product
for service. When calling Horizon, you will be asked to provide your
complete name, street address, email address and phone number
where you can be reached during business hours. When sending
product into Horizon, please include your RMA number, a list of the
included items, and a brief summary of the problem. A copy of your
original sales receipt must be included for warranty consideration. Be
sure your name, address, and RMA number are clearly written on the
outside of the shipping carton.
notice: do not ship lipo batteries to horizon. if you have
any issue with a lipo battery, please contact the appropriate
horizon product Support office.
Warranty requirements - for Warranty consideration, you
must include your original sales receipt verifying the proof-
of-purchase date. Provided warranty conditions have been met,
your Product will be serviced or replaced free of charge. Service or
replacement decisions are at the sole discretion of Horizon.
non-Warranty Service - Should your service not be covered
by warranty, service will be completed and payment will
be required without notification or estimate of the expense
unless the expense exceeds 50% of the retail purchase cost.
By submitting the item for service you are agreeing to payment of
the service without notification. Service estimates are available upon
request. You must include this request with your item submitted for
service. Non-warranty service estimates will be billed a minimum
of ½ hour of labor. In addition you will be billed for return freight.
Horizon accepts money orders and cashier's checks, as well as Visa,
MasterCard, American Express, and Discover cards. By submitting
any item to Horizon for service, you are agreeing to Horizon's Terms
and Conditions found on our website http://www.horizonhobby.com/
content/_service-center_render-service-center.
notice: horizon service is limited to product compliant in the
country of use and ownership. if non-compliant product is
received by horizon for service, it will be returned unserviced
at the sole expense of the purchaser.
Address Phone Number/Email Address
877-504-0233
Online Repair Request: visit
4105 Fieldstone Rd
www.horizonhobby.com/service
Champaign, Illinois, 61822 USA
877-504-0233
productsupport@horizonhobby.com
Units 1-4 , Ployters Rd, Staple Tye,
+44 (0) 1279 641 097
Harlow, Essex, CM18 7NS, United
sales@horizonhobby.co.uk
Kingdom
Christian-Junge-Straße 1 +49 (0) 4121 2655 100
25337 Elmshorn, Germany service@horizonhobby.de
14 Rue Gustave Eiffel
+33 (0) 1 60 47 44 70
Zone d'Activité du Réveil Matin
infofrance@horizonhobby.com
91230 Montgeron
Address Phone Number/Email Address
4105 Fieldstone Rd 800-338-4639
Champaign, Illinois, 61822 USA sales@horizonhobby.com
Units 1-4, Ployters Rd, Staple Tye
+44 (0) 1279 641 097
Harlow, Essex, CM18 7NS, United
sales@horizonhobby.co.uk
Kingdom
Christian-Junge-Straße 1 +49 (0) 4121 2655 100
25337 Elmshorn, Germany service@horizonhobby.de
14 Rue Gustave Eiffel
+33 (0) 1 60 47 44 70
Zone d'Activité du Réveil Matin
infofrance@horizonhobby.com
91230 Montgeron
Steven A. Hall
Executive Vice President and Chief Operating Officer
International Operations and Risk Management
Horizon Hobby, Inc.
35124
