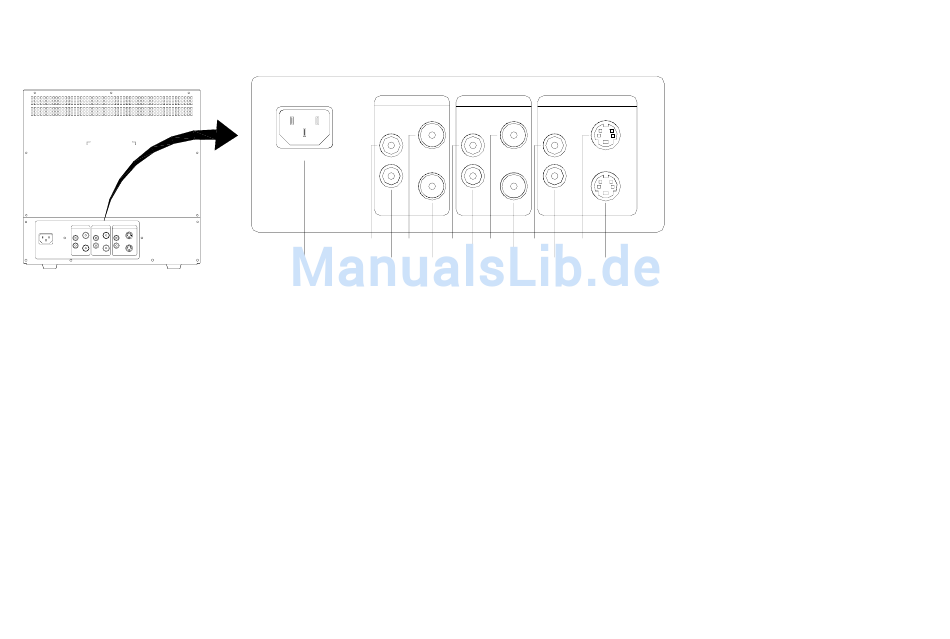

REAR PANEL CONTROLS & CONNECTIONS for TV8141 & TV8153 & TV8154
AUDIO
VIDEO A
AUDIO
VIDEO B
AUDIO
Y/C
OUT
OUT
OUT
OUT
OUT
OUT
AC INPUT
IN
IN
IN
IN
IN
IN
1.
~AC INPUT (inlet) connector
Connect the AC power cord (supplied) to the AC input connector and wall outlet.
2.
Channel A AUDIO OUT connector (RCA jack)
Loop-through output of the audio in connector.
Connect to the audio input connector of a VCR or another monitor.
3.
Channel A AUDIO IN connector (RCA jack)
Connect to the audio output connector of a VCR or another equipment.
4.
Channel A VIDEO OUT connector (BNC-type)
Loop-through the video in connector. Then connect video input.
5.
Channel A VIDEO IN connector (BNC-type)
Connect to the video output connector of video equipment, such as a VCR or a color video camera.
AUDIO
VIDEO A
AUDIO
OUT
OUT
OUT
AC INPUT
IN
IN
2 4
6
1
3
5
7 9
30
VIDEO B
AUDIO
Y/C
OUT
OUT
OUT
IN
IN
IN
IN
10
12
8
11
13
