Operating instructions

Alarm siren

Item no. 1662136
Intended use
This product generates a loud sound when switched on (100 Hz, 85 dB/1m) that can be uses
for signalling certain events in a workshop or a production-area (for example for break signals,
warning signals, etc.).
The sound is made when connected to the supply voltage (230 V/AC, 50 Hz) (activation for
example controlled externally, a relay, etc.).
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in
bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged.
In addition, improper use can cause hazards such as short circuiting, fire, electric shock etc.
Read the instructions carefully and keep them. Make this product available to third parties only
together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Alarm siren
• Operating instructions
Latest operating instructions
Download the latest operating instructions via the link www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.
Explanation of symbols
The lightning symbol inside a triangle is used when there is a potential risk of
personal injury, such as electric shock.
An exclamation mark in a triangle indicates important instructions in this operating
manual that absolutely have to be observed.
The arrow symbol indicates specific tips and advice on operation.
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• The structure of the product complies with safety class II. The product can only be
operated with a supply voltage of 230 V/AC, 50 Hz.
• When connected work can be carried out at the supply voltage. If you are not
an expert who is able to make this connection and installation, you should let a
specialist (electrician) do this for you. With improper work at the supply voltage,
you not only endanger yourself but also others - danger through an electric shock!
• Make sure the insulation of the whole product is neither damaged nor destroyed.
• The product should not be used in immediate surrounding of a bath, a pool or a
shower.
• Never install the product in areas where there is a danger of explosion or high
dust exposure.
• Don't use the product in tropical climate but only in moderate climate.
• The product can only be used when the housing cover is fixed and fully installed.
• The maximum switched on time is 10 minutes. The signal siren must cool down for
at least 10 minutes after that.
• If this is not respected, the inductor in the signal siren overheats. Not only the
signal siren is damaged, but there is also danger of fire.
• The high volume (acoustic pressure 85 dB/1m) can lead to hearing damages if the
product is placed close to persons.
• Make sure that the cables are not folded or squeezed and that there is no
short-circuit when installing this product.
• The following unfavourable conditions are to be avoided at the location of the
device or during transport:
- wetness or too high air humidity
- extreme coldness (< -10 °C) or heat (> +50 °C), direct sunlight
- dust or flammable gases, fumes or solvents
- strong vibrations, shocks, impacts
- strong magnetic fields such as near machines or loudspeakers
• Never use the product immediately after it has been brought from a cold into a
warm room. Condensation that forms might destroy your device. There is danger
of a life-threatening electric shock!
• Leave the product switched off and wait until it has reached room temperature.
This can sometimes take several hours.
• In industrial facilities the accident prevention regulations of the association of the
industrial Accident Prevention & Insurance Association have to be take note of for
electric installations and equipment.
• In schools, training facilities, hobby and self-help-workshops, the operation of
electric appliances is to be supervising by trained personnel.
• Consult an expert when in doubt about operation, safety or connection of the
device.
• Maintenance, modifications and repairs are to be performed exclusively by an
expert or at a qualified shop.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.

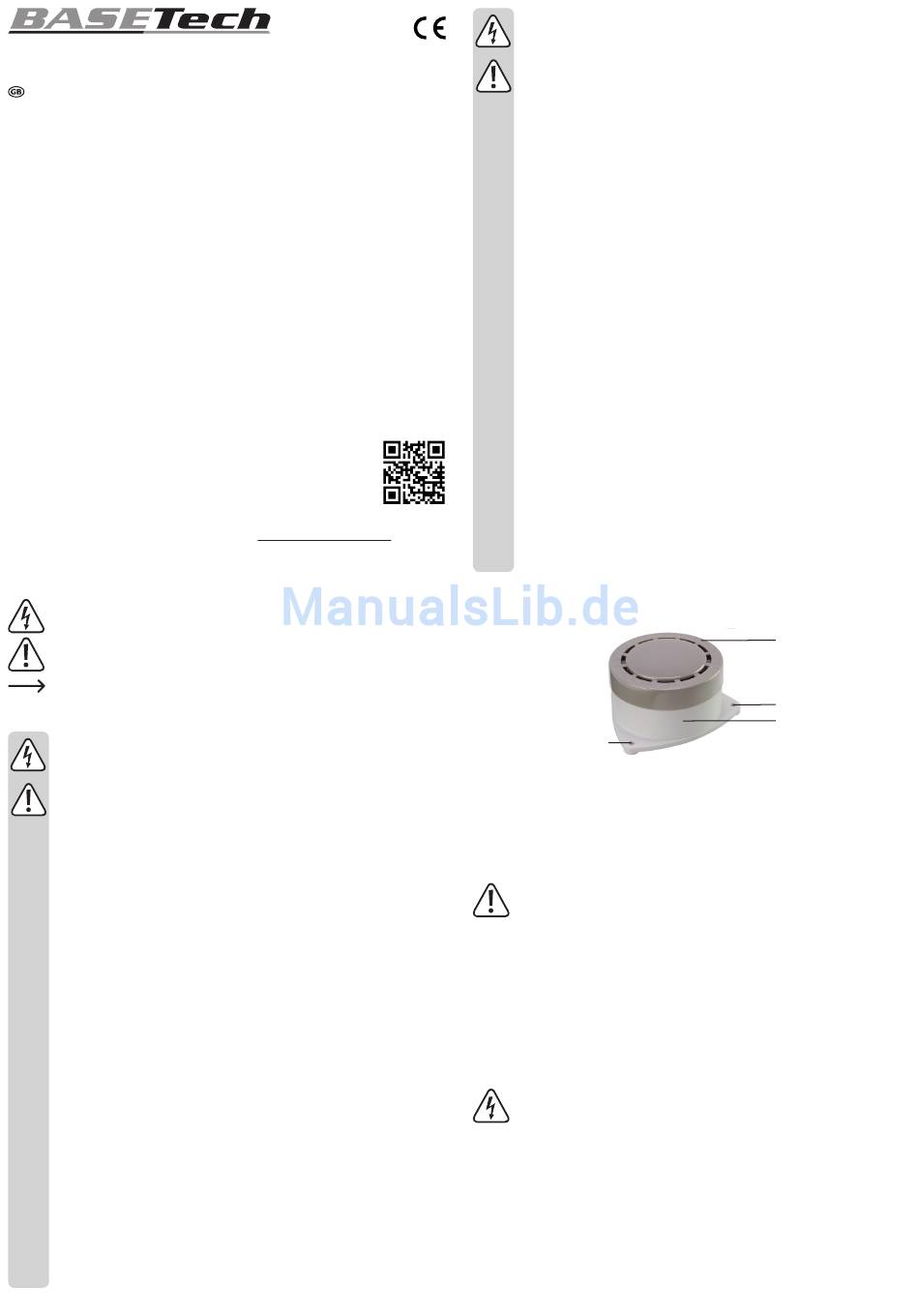

Operating controls
A
A Fixation hole for installation (total: 3x)
B Screw cap, top half casing with hole for the sound
C Lower half casing
Installation and connection
• Install the signal siren with the three fixation holes (A) on a surface that is suitable for it.
Make sure that no cables, electric leads, gas or water pipes are damages when
drilling or screwing!
Do not tighten the screws forcibly otherwise the casing of the signal siren is
damaged. The screws should not be screwed too loosely as they can come off
through vibrations.
• The screw cap (B) is to be unscrewed anti-clockwise from the lower casing-half (C).
• The two white cables are to be connected through a bipolar screw clamp (not included
in delivery) to the supply voltage (the allocation of the two white cables to "N" or "L" is
unimportant).
As a connection cable, a plastic cable is to be used 3x 0.75 mm
earth conductor/protection contact (yellow/green wire) is not needed. The wire-end is to be
secured with insulating tape or with another single-pole screw clamp.
Attention!
When connected work can be carried out at the supply voltage. If you are not
an expert who is able to make this connection and installation, you should let a
specialist (electrician) do this for you. With improper work at the supply voltage, you
not only endanger yourself but also others - danger through an electric shock!
Before the product is installed and connected you have to switch it off at the control
that causes the signal siren to go on; secure it against unintended operation (for
example with warnings).
Danger to life through an electric shock!
B
A
C
(H03W-F/NYLHY-J). The
