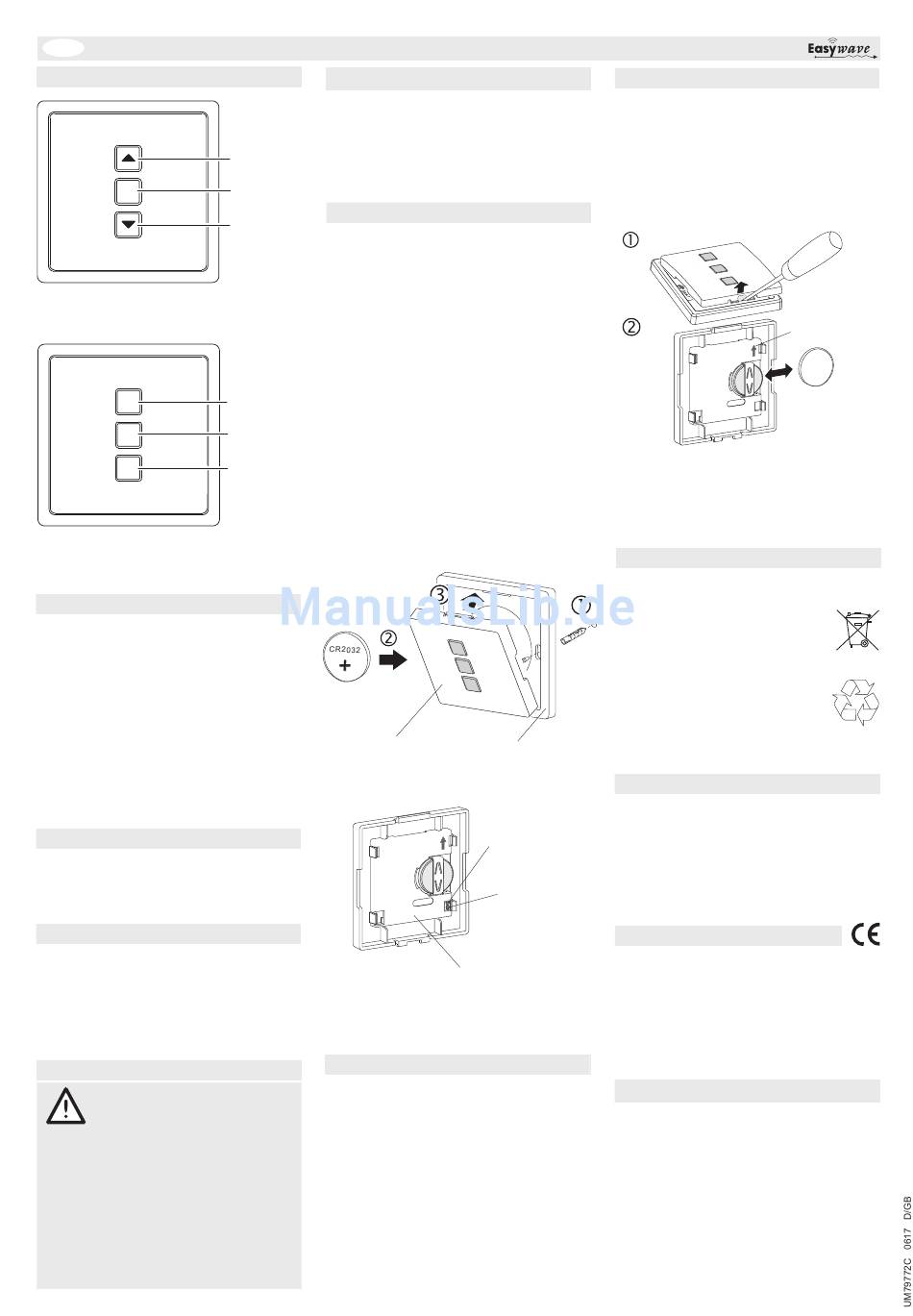

Wall Switch RTS13
GB
Model
RTS13E5001-01
1x OPEN/STOP/CLOSE
3 button operation.
RTS13E5003-01 3x PULSE
1 button operation
Technical Data
Technische Daten
Frequency: 868.3 MHz
Radiated power: 0.13 mW
Modulation: FSK
Coding: Easywave
Power supply: 1x 3-V-battery, CR2032
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
buildings: approx. 30 m
Degree of protection: IP30
Dimensions: 80 x 80 x 10 mm
Weight: 47.0 g incl. battery
Package Content
Transmission module, 1x battery CR2032,
mounting frame, attachment set, op. instruc-
tion
Intended Use
Only use the Wireless Wall Switch RTS13 in
dry rooms to switch Easywave wireless
controls.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Safety Advice
Before using the Radio Wall Switch,
carefully read through the operating
instructions!
Note also the operating instructions of the
radio control(s)!
The Radio Wall Switch should only be
operated within sight of the devices to be
controlled! Otherwise persons could be
placed in danger!
Have faulty Radio Wall Switches checked by
the manufacturer!
Do not make any unauthorized alterations or
modifications to the Radio Wall Switch!
Function
The RTS13 is a wireless switch transmitter
for surface mounting in dry rooms.
The Easywave code is transmitted by
pressing the switch and the connected
OPEN
(A)
Easywave wireless control switched.
STOP
(C)
Start-Up
CLOSE
(B)
1. Screw or stick the mounting frame to the
installation site with the help of the screws
and dowels or the adhesive pads.
Caution: Make sure that there is no inter-
ference with the wireless connection. Do
not mount the device in a distribution box,
metal casings, in direct proximity to large
metal objects, on the floor or close to it
2. Insert the enclosed battery.
Make sure the Polarity is correct!
A
3. First snap the transmission group in on
the top and then on the bottom of the
C
mounting frame. The arrow on the back
of the transmission module must point
B
upwards.
4. Register the transmission code with the
wireless control.
rating instructions supplied with the radio
controls.
transmission
module front
Troubleshooting
If the wireless control does not react to the
Radio Wall Switch
- Exchange the battery.
- Check that the wireless connection at the
installation site is not impaired between the
wireless wall switch and the wireless
control.
- Re-register the transmission code with the
wireless control.
- Other wireless devices using the same
frequency or working in direct proximity
may interfere with the device.
For this read the ope-
mounting frame
LED
learning button
PTx
transmission module
back
:
Replacing the Battery
1. Carefully lever off the transmission group
out of the mounting frame on the bottom
edge.
2. Replace the battery. Only use batteries of
the type CR2032. Make sure the polari-
ty is correct!
3. Re-insert the transmission group into the
mounting frame.
Note: The transmitter's coding is preserved
even if there is no voltage supply. You do not
need to re-register the code with the wireless
control after a battery change.
Disposal
Waste electrical products and batteries not
be disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Dispose of used batteries in a
recycling bin for batteries or via the
specialist trade.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by repair or
replacement any product defects arising from
material or production faults.
Any unauthorized tampering with, or
modifications to, the product shall render this
warranty null and void.
Conformity
Hereby, ELDAT GmbH declares that the radio
equipment type RTS13 is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of confor-
mity is available at the following internet
address: www.eldat.de
For use in: EU/CH/FL/IS/N
Customer Service
If, despite correct handling, faults or mal-
functions occur or if the product was da-
maged, please contact your retailer or the
manufacturer.
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-mail: info@eldat.de
Direction of
arrow must be
upward!
C R 2 0 3 2
+
