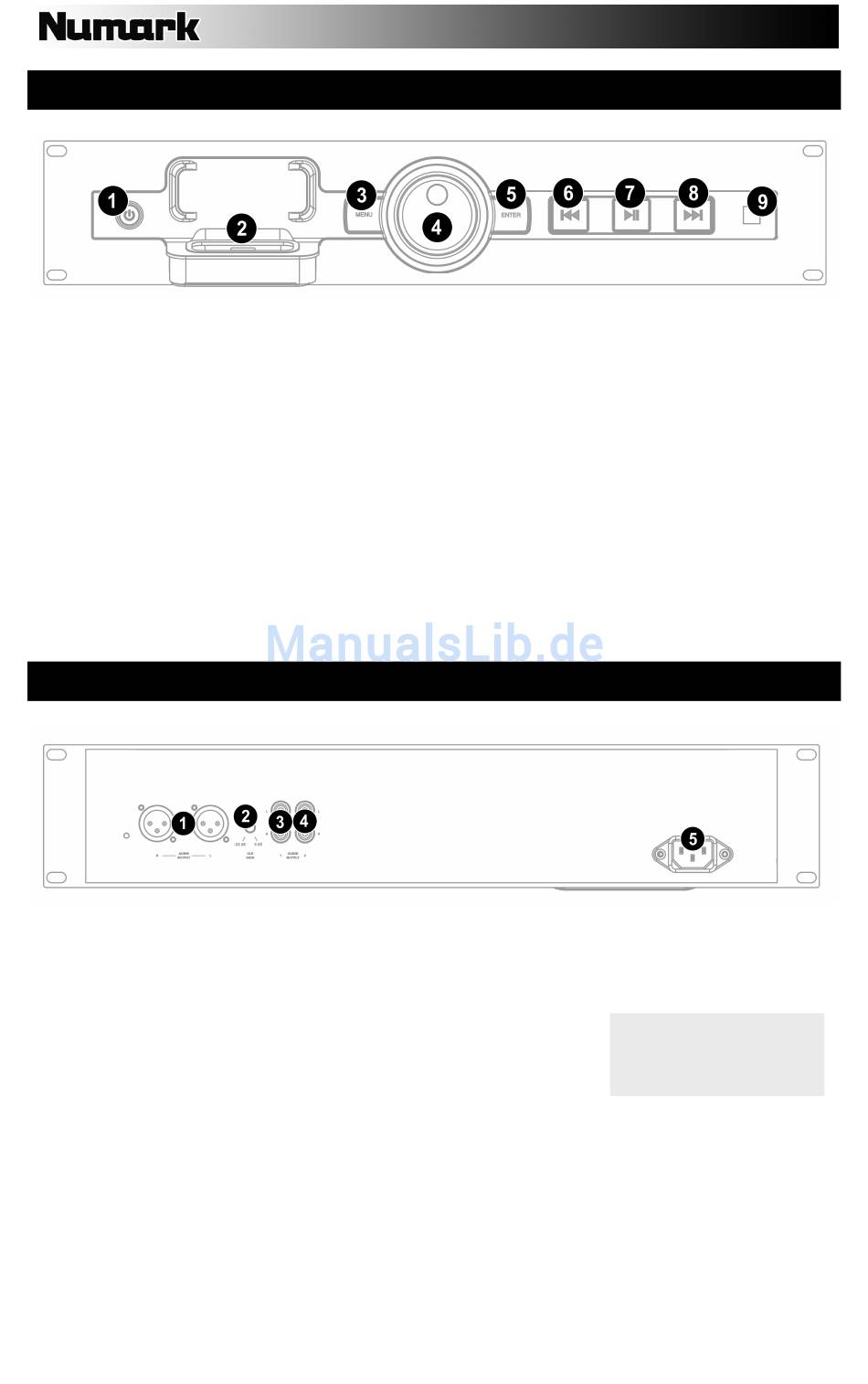

FRONT PANEL OVERVIEW

1. POWER – This button turns the unit on and off. Power off the unit when not in use for extended
periods of time.
2. iPod DOCK – Dock your iPod in this slot. Make sure that your iPod fits snuggly over the connector but
do not force it. When docked, your iPod will be charging at all times.
3. MENU – This buttons functions as the 'MENU' button of your iPod.
4. JOG WHEEL – This wheel functions as the touchwheel control of your iPod.
5. ENTER – This button functions as the 'ENTER' command of your iPod.
6. |<< - This button functions as the '|<<' button of your iPod.
7. >|| - This button functions as the '>||' button of your iPod.
8. >>| - This button functions as the '>>|' button of your iPod.
9. REMOTE CONTROL SENSOR – This sensor detects commands from the included remote control.

REAR PANEL OVERVIEW

1. AUDIO OUTPUT (XLR) – These balanced XLR outputs should be connected to a power amplifier,
mixer, or speakers system.
2. XLR GAIN – This knob can be used to make adjustments to the gain of the XLR audio outputs.
3. AUDIO OUTPUT 1 (RCA) – Use a stereo RCA cable to connect
these outputs to a power amplifier, mixer, or speaker system.
4. AUDIO OUTPUT 2 (RCA) – Use a stereo RCA cable to connect
these additional outputs to a power amplifier, mixer, or speaker
system.
5. POWER INPUT – Use the included power cable to connect this input to a power source.
2
Please note that both the
XLR and RCA connections
will output the same audio
signal from your iPod.
