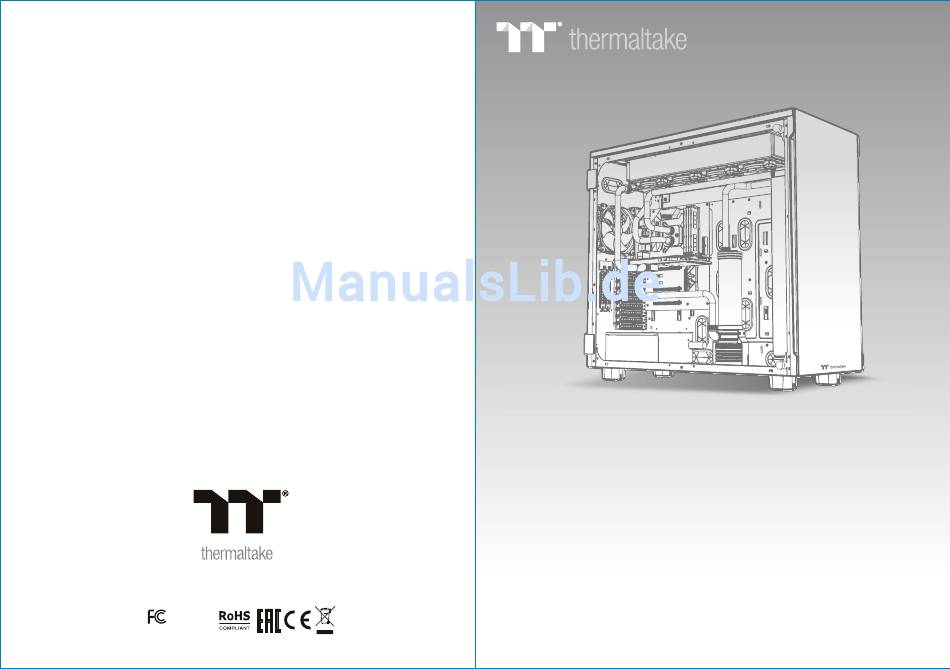

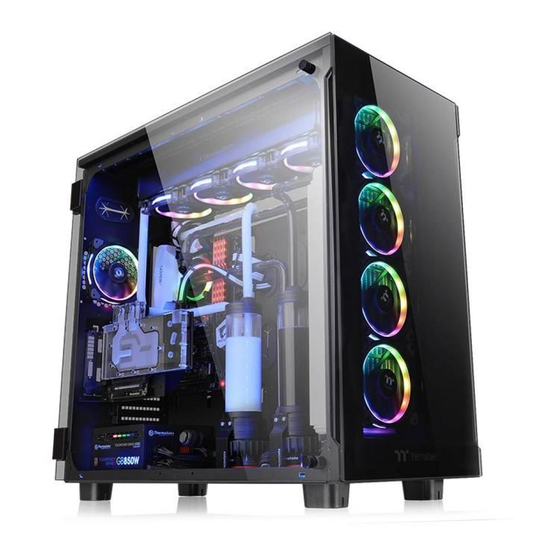

- Seite 1 Manuale dell’utente Manual do Utilizador 安裝說明書 用戶手冊 ユーザーズマニュアル Руководство пользователя © 2018 Thermaltake Technology Co., Ltd. All Rights Reserved. 2017.12 All other registered trademarks belong to their respective companies. www.thermaltake.com kullanıcı elkitabı (EEE Yönetmeliğine Uygundur) Tested To Comply With FCC Standards คู...
- Seite 2 LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
-
Seite 3: Inhaltsverzeichnis
Specification Dimension (H*W*D) 691 x 344 x 645 mm (27.2 x 13.5 x 25.4 inch) Side Panel 5mm Tempered Glass x 3 (Left & Right & Front) Contents Drive Bays - Accessible 12 x 3.5’’ or 2.5’’ (HDD Cage) - Hidden 6.7”... -
Seite 4: Warning And Notice
Warning and Notice Atenção!! Limite de altura para o dissipador do CPU: O limite de altura para o dissipador do CPU é 200 mm (7,9 polegadas). Limite de comprimento para VGA (placa gráfica): O limite de comprimento para VGA (placa gráfica) é 470 mm (18,5 polegadas). 警告！！... -
Seite 5: Side Panels Disassembly
Power Supply Unit (PSU) Installation Side Panels Disassembly English / Place the PSU in proper location. Deutsch / Platzieren Sie das Netzteil in der richtigen Position. Français / Placez l’alimentation dans la position appropriée. Español / Instale la PSU en la ubicación correcta. Italiano / Posizionare la PSU in modo corretto. -
Seite 6: Motherboard Installation
Motherboard Installation 3.5" & 2.5" HDD Installation 3.5” HDD 2.5” HDD Secure 2.5 HDD from the Secure 3.5 HDD from both bottom of the HDD by side of the HDD tray by screws. locking clips. Type A English / 繁體中文 / 1.Lay down the chassis. -
Seite 7: Remove Hdd Cage
Remove HDD Cage English / 繁體中文 / 1. Pull the HDD tray out. 1. 將硬碟托盤取出 2. Place the 2.5” or 3.5” hard drive on the tray 2. 將2.5”或3.5”硬碟放置在硬碟托盤上，用螺絲固 and secure it with screws. 定硬碟 3. Slide the HDD tray back to the HDD cage. 3. -
Seite 8: Pci Card Installation
PCI Card Installation Air Cooling Installation In front of M/B Tray Type A 120mm x 4 140mm x 3 200mm x 2 Back (Optional) Extend installing to Motherboard Type B 140mm x 1 120mm x 1 Front 140mm x 3 140mm x 3 120mm x 4 120mm x 3... - Seite 9 Behind M/B Tray 12: for 120mm fan Right UNLOCK LOCK 14: for 140mm fan 20: for 200mm fan 120mm x 4 140mm x 4 120mm Fan(x4) x 16 200mm x 3 140mm Fan(x4) 120mm x 4 x 16 140mm x 4 200mm Fan(x3) 200mm x 3 x 12...
-
Seite 10: Liquid Cooling Installation
Liquid Cooling Installation Liquid Cooling Installation - Right side Right 480mm 420mm 400mm Back Note: 140mm 480mm 120mm 420mm Front Bottom 280mm 420mm 120mm 480mm... -
Seite 11: Pump Installation
Pump Installation Maximum Radiator Installation Notice Top Radiator Installation Notice * Please consult radiator & memory height for proper installation 安裝前請參考水冷排與記憶體高度 Radiator(Top): 480 x 64mm Type A Radiator(Front): 360 x 64mm 480mm x 64mm Note: Radiator(Top): 480 x 64mm Type B Radiator(Right): 360 x 64mm 480mm x 64mm... -
Seite 12: Case Led Connection
Leads Installation Français English Guide d'installation des fils Connexion des voyants du boîtier / Sur la face avant du boîtier, vous trouverez plusieurs voyants et les fils des Leads Installation Guide boutons. S'il vous plaît consultez le guide d'utilisateur du fabricant de votre carte mère, puis connectez ces fils aux Case LED Connection / On the front of the case, you can find some LEDs and switch leads. - Seite 13 Italiano 繁體中文 Guida di installazione dei contatti 線材安裝說明 Connessione del LED del case / Nella parte anteriore del case, sono presenti alcuni contatti per interruttori e LED. 機殼LED連接方式 / 在機殼前方的面板後面，可以找到一些LED與開關線材（POWER Switch….），請參考主機板使用說明書， Consultare il manuale utente del produttore della scheda madre, quindi connettere i contatti alla parte superiore del 並將機殼上的線材正確地連接到主機板上，這些線材通常都會印有標籤在上面，如果沒有的話，請找出機殼前方面板上線材原...
- Seite 14 Türkçe 日 本 語 Ara Kablo Kurulum Kılavuzu リード線の取り付けガイド Kasa ışık bağlantısı / Kasanın ön kısmında bazı ışıklar ve anahtar ara kabloları görebilirsiniz. Lütfen anakart üreticinizin ケース LED の接続 / ケース前面には、LEDとスイッチリード線があります。 マザーボードメーカーのユーザーマニュアル sağladığı kullanım kılavuzuna bakın ve daha sonra, bu ara kabloları, anakart üzerindeki panel bağlantı noktalarına bağlayın. を参照し、これらのリード線をマザーボードのパネルヘッダに接続してください。...
