Seite 1

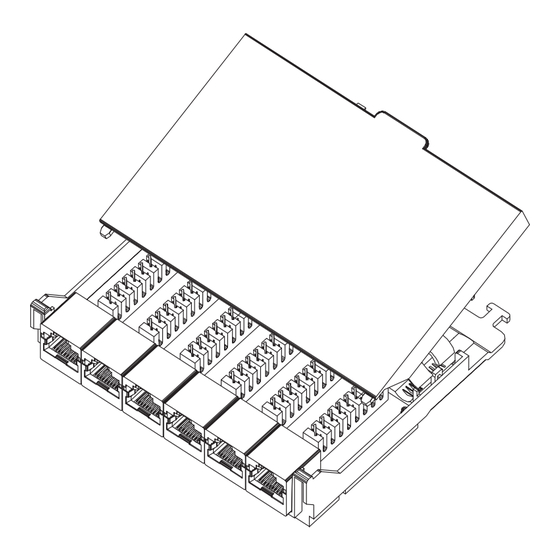

Montageanleitung Termination Instructions System 24 x8(8) Cat.6 Patchfeld modular 24x8(8) Cat.6 modular Patch Panel 6x8 1HE Modul Cat.6 6x8 3HE Modul Cat.6 BTR NETCOM GmbH Tel. +49 7702 533-0 Im Tal 2 Fax +49 7702 533-433 78176 Blumberg / Germany www.btr-netcom.com...
Seite 2
Kabelkonfektion Kabelmontage Cable Preparation System Cable Termination System Schritt 1 / Step 1 Schirmanschlussschelle auf- Schritt 2 / Step 2 setzen und festschrauben. Attach the shield connection Krone LSA PLUS ® Kunststoffmantel clamp and screw it down. Anlegewerkzeug weiß/white ca.
Seite 3
Zubehör Beschaltungshinweise System Pin / Pair Assignment System Accessories Montagehalter/Mounting Bracket Beschriftungsbogen/Label Sheet Schaltbild einer Anschlusseinheit Wiring Diagram for one Jack nach ISO/IEC 11801 according to ISO/IEC 11801 Patchfeld Montagehalter Beschriftungsbogen 210 x 294 mm Art.-Nr. 817149-E für DIN A4 Drucker Art.-Nr.
