2

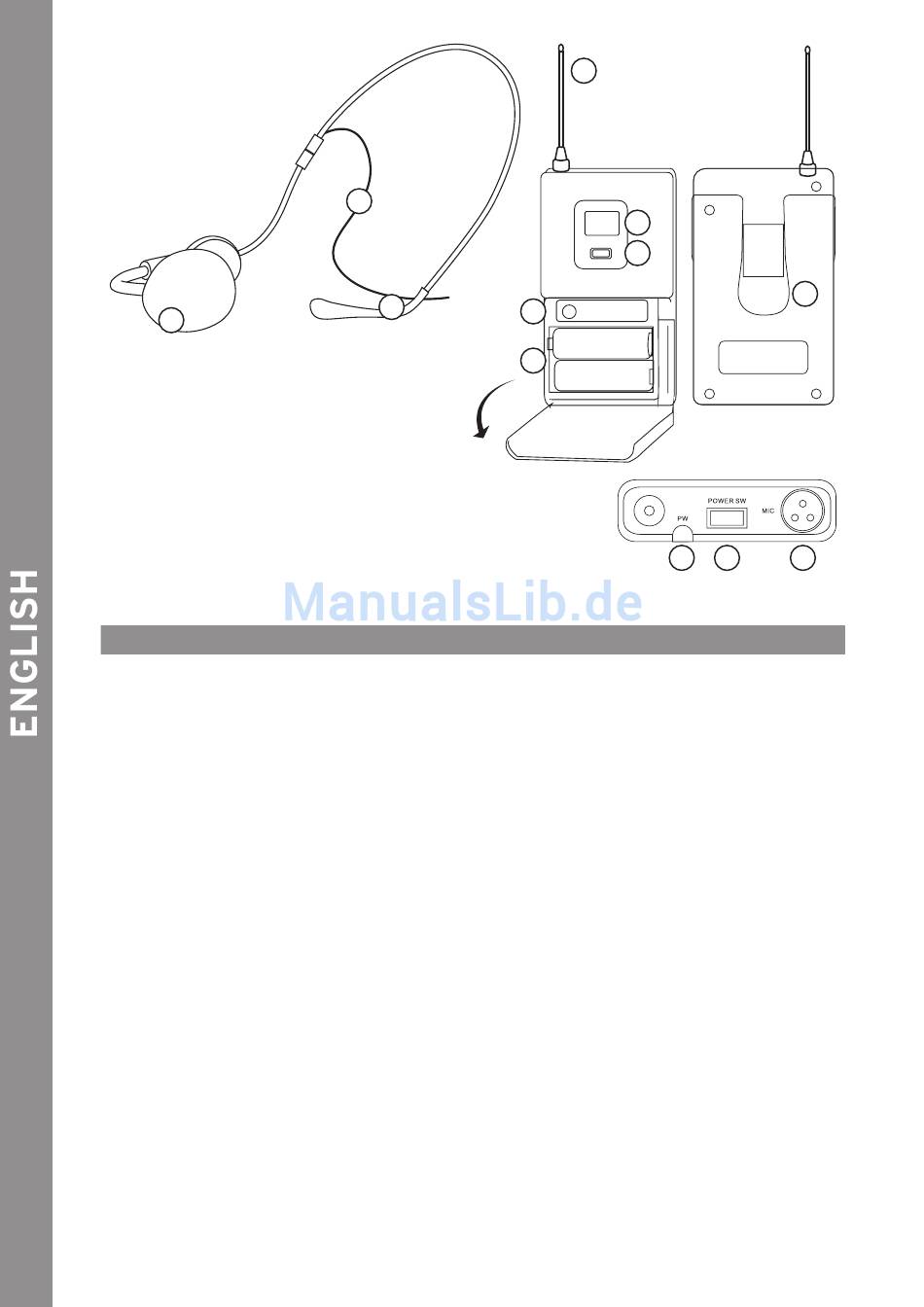

RUF-10 HS Headset
1. Cable with 3-pin plug
2. Microphone
3. Bracket
Bodypack Transmitter
1. Antenna
2. LCD: Groups/Channel No., Battery Display
3. Select: manual adjustment of radio channel
4. IR Port
5. Battery Cover
6. Status LED: green: ready; orange: mute on; blinking: connection is being carried out
7. On/Off/Mute: press 2 seconds to turn on/off; Press briefly for mute on/off
8. 3-pin Microphone Input
9. Belt Clip
RUF-10 HH/HS opeRATIon
operating a System
Connect the included antennaes by turning them towards the corresponding receiver connection -8-.
Connect the receiver to the mains cable.
Turn the device on via the power switch -1-.
Receiver's Automatic Frequency Search:
1. Turn on the receiver.
2. Press Menu -5- and then Select -4-.
The receiver will now automatically search for a free channel.
Automatic Transmitter Adjustment:
After the receiver has found a channel please turn on the transmitter.
Open the microphone's Battery Cover -6- (Bodypack -5-) and insert two AA-Mignon 1.5 volt batteries. Please make sure to observe the correct
polarity. Keep the battery compartment open to ensure a free antenna.
1. Turn on the microphone via the On/Off Switch -4- (Bodypack -7-). The Status LED -2- is illuminated green.
2. Point the handheld mic's IR Port -7- (Bodypack -4-) to face the receiver IR -4-. Then press the Sync Button -6- at the receiver.
3. The status LED will briefly blink orange; after the connection is complete it will turn to green.
Close the battery compartment.
operating Several Systems:
Repeat these steps.
Make sure that only the IR port of the handheld mic or belt pack that needs to be set up is exposed.
When you start operating a second receiver, the first one has to remain turned on.
Manual Receiver Select channel/groups
General:
Manual groups (pre-programmed frequency sets) and channels respectively, can be of help when several microphones have to be adjusted or
different systems are in use.
Manual Groups:
1. Press Menu -5- three times. The display will show ‚Group Select'.
2. Repeatedly press Select -4- until the desired group number is displayed.
3. When the desired group is being displayed, either wait 5 seconds until the display goes out or press Sync -6-.
Manual Channels:
1. Press Menu -5- twice. The display will show ‚Channel Select'.
2. Repeatedly press Select -4- until the desired channel number is displayed.
3. When the desired channel is being displayed, either wait 5 seconds until the display goes out or press Sync -6-.
8
1
3
4
5
1
2
3
6 7
9
8
