opeRATIng enVIRonMenT
The products must be operated and stored in a dry environment only! Splash water, rain, humidity, fog may cause serious damage. The limit value
for relative humidity is 50% at 45°C.
The products must be operated at a temperature range of between 5 °C and 35 °C only. Protect the products against direct exposure to sunlight
or other heat, such as from radiators!
If the products are taken from a cold environment into a warm environment they must only be taken into operation once they have reached ambi-
ent temperature, since the condensation created by the difference in temperature may destroy the products!
Protect the products against dust!
opeRATIon

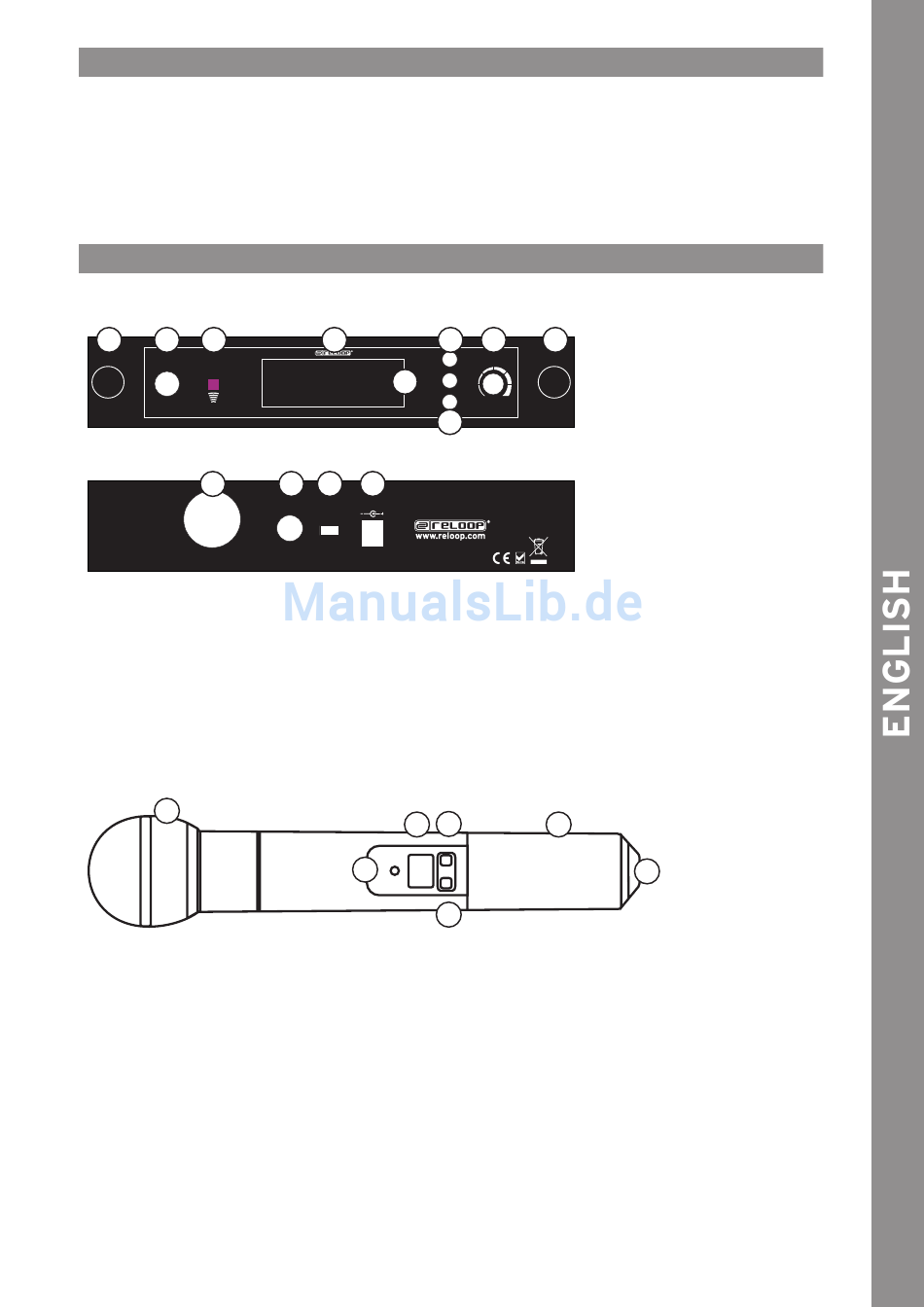

controls
Front side UHF receiver RUF-10 HH, RUF-10 HS
8
1
2
RU F-10 HH
POWER
IR
Rear panel UHF receiver RUF-10 HH, RUF-10 HS
9
BALANCE DA
1.
ON/OFF Button
2.
IR Signal Display
3.
LCD (Group & Channel; RF & AF Display)
4.
Select Button: selects between the various display modes
5.
Menu Button: selects the menu layer
6.
Sync Button: connects receiver and transmitter
7.
Volume: adjusts volume level
8.
Aerial Terminal: connection for the included aerials
9.
Individually balanced XLR output
10. 6.3mm Jack Connection
11.
Mic/Line Select Switch
12. Connection for Power Supply
RUF-10 HH Handheld Microphone
1
1.
Exchangeable Microphone Head
2.
Status LED: green: ready; orange: mute on; blinking: connection is being carried out
3.
LCD: Groups/Channel No.; Battery Display
4.
On/Off/Mute: press 2 seconds to turn on/off; press briefly for mute on/off
5.
Select: manual adjustment of radio channel
6.
Battery Protection: revolvable
7.
IR Port
3
5
MENU
4
SELECT
SYNC
6
10
11
12
LINE
MIC
F OU T
DC 12 V
5
3
2
4
7
8
VOLU ME
6
7
7
