8. Pulse generator function
A pulse generator is integrated into the hand-held pendant station. This function is
operated using two keys that can be chosen as required. The keys are defined on the
Configuration menu (Konfiguration) (section 5.1.4).
The default setting is the
Configuration (Konfiguration) menu.
The default setting is: "Activated" ("Aktiviert").
The operator can send counter pulses to the control system by actuating one of the
two keys. An RS422 driver module is used as the output stage; this contains the output
signals A, /A, and B, /B (see technical data).
If the
key is pressed (or the key as defined by
customer) briefly, then 1 clockwise (CW) counter
pulse is sent.
If the
key is operated (or the key defined by the
customer) 1 counter clockwise (CCW) counter
pulse is sent.
If one of the two keys is pressed for longer than the delay set (switch over from single
pulse to continuous sequence of pulses), then when this period has elapsed a counter
frequency in the corresponding direction is output. The value for this period and
the frequency are set on the Configuration (Konfiguration) menu (section 5.1.4).

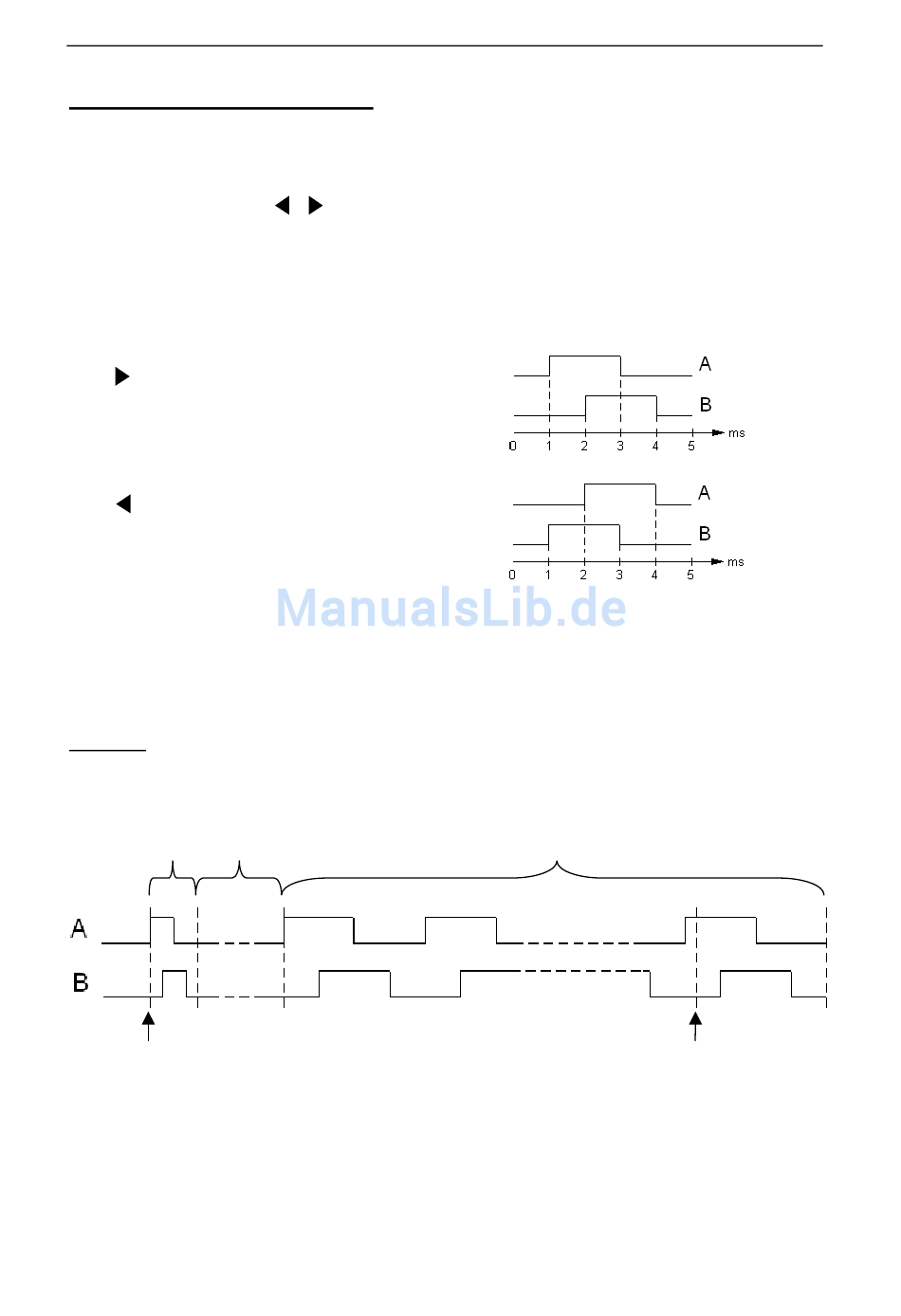

Example: Key for CW is operated for approx.2 seconds.
Delay set = 500ms, counter frequency set = 80 Hz.
Delay
Single
500ms
pulse
4ms
Key
pressed
095640-02-02/06
Hand-Held Pendant Station
keys. The pulse generator is also enabled on the
Counter frequency 80Hz
Subject to technical modifications
HBAS-094594
1500ms
Key
released
Page 22 / 40
