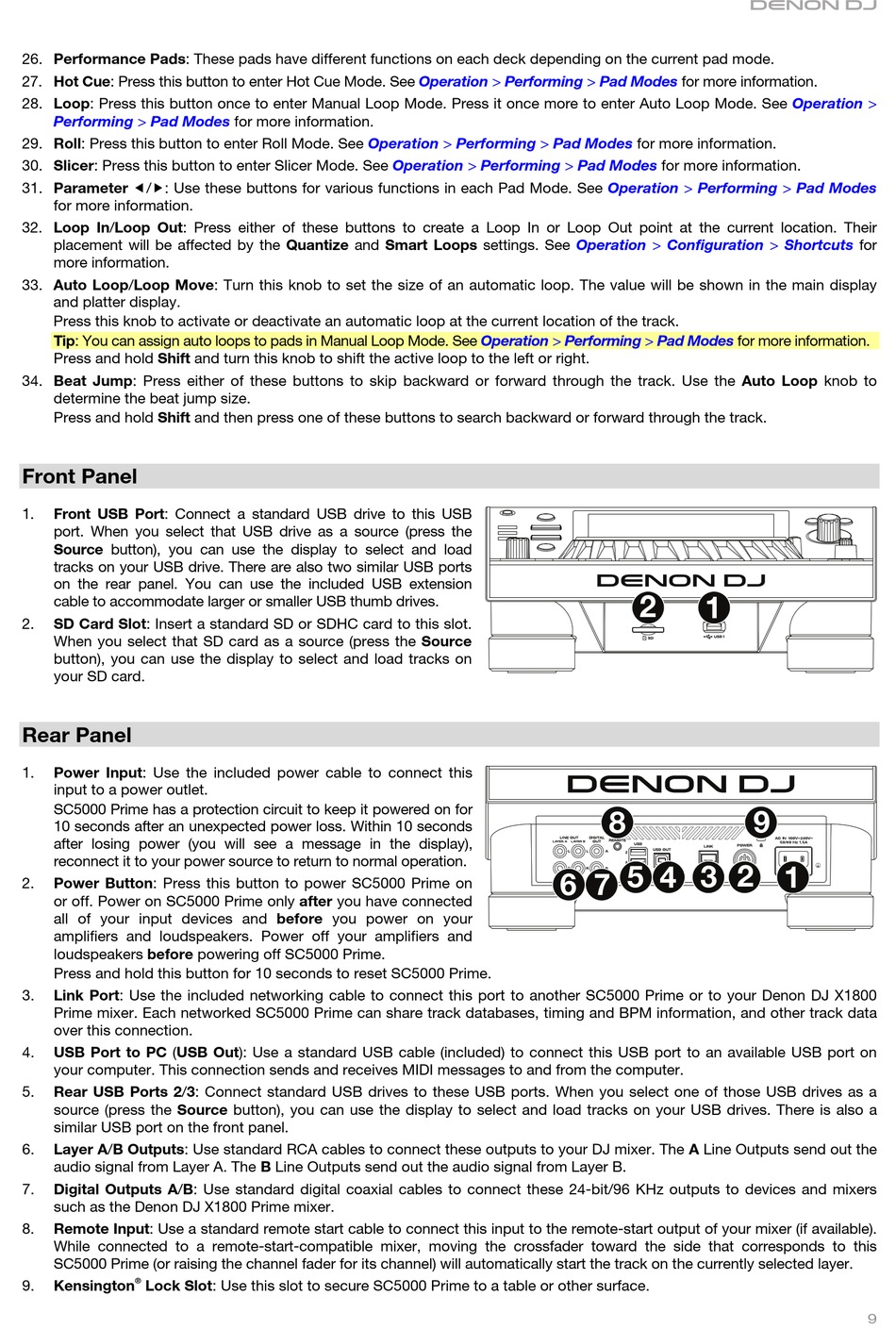

Front Panel; Rear Panel - Denon DJ SC5000 Prime Benutzerhandbuch

26. Performance Pads: These pads have different functions on each deck depending on the current pad mode.
27. Hot Cue: Press this button to enter Hot Cue Mode. See
28. Loop: Press this button once to enter Manual Loop Mode. Press it once more to enter Auto Loop Mode. See
Performing > Pad Modes
29. Roll: Press this button to enter Roll Mode. See
30. Slicer: Press this button to enter Slicer Mode. See
31. Parameter /: Use these buttons for various functions in each Pad Mode. See
for more information.
32. Loop In/Loop Out: Press either of these buttons to create a Loop In or Loop Out point at the current location. Their
placement will be affected by the Quantize and Smart Loops settings. See
more information.
33. Auto Loop/Loop Move: Turn this knob to set the size of an automatic loop. The value will be shown in the main display
and platter display.
Press this knob to activate or deactivate an automatic loop at the current location of the track.
Tip: You can assign auto loops to pads in Manual Loop Mode. See
Press and hold Shift and turn this knob to shift the active loop to the left or right.
34. Beat Jump: Press either of these buttons to skip backward or forward through the track. Use the Auto Loop knob to
determine the beat jump size.
Press and hold Shift and then press one of these buttons to search backward or forward through the track.

Front Panel

1. Front USB Port: Connect a standard USB drive to this USB
port. When you select that USB drive as a source (press the
Source button), you can use the display to select and load
tracks on your USB drive. There are also two similar USB ports
on the rear panel. You can use the included USB extension
cable to accommodate larger or smaller USB thumb drives.
2. SD Card Slot: Insert a standard SD or SDHC card to this slot.
When you select that SD card as a source (press the Source
button), you can use the display to select and load tracks on
your SD card.

Rear Panel

1. Power Input: Use the included power cable to connect this
input to a power outlet.
SC5000 Prime has a protection circuit to keep it powered on for
10 seconds after an unexpected power loss. Within 10 seconds
after losing power (you will see a message in the display),
reconnect it to your power source to return to normal operation.
2. Power Button: Press this button to power SC5000 Prime on
or off. Power on SC5000 Prime only after you have connected
all of your input devices and before you power on your
amplifiers and loudspeakers. Power off your amplifiers and
loudspeakers before powering off SC5000 Prime.
Press and hold this button for 10 seconds to reset SC5000 Prime.
3. Link Port: Use the included networking cable to connect this port to another SC5000 Prime or to your Denon DJ X1800
Prime mixer. Each networked SC5000 Prime can share track databases, timing and BPM information, and other track data
over this connection.
4. USB Port to PC (USB Out): Use a standard USB cable (included) to connect this USB port to an available USB port on
your computer. This connection sends and receives MIDI messages to and from the computer.
5. Rear USB Ports 2/3: Connect standard USB drives to these USB ports. When you select one of those USB drives as a
source (press the Source button), you can use the display to select and load tracks on your USB drives. There is also a
similar USB port on the front panel.
6. Layer A/B Outputs: Use standard RCA cables to connect these outputs to your DJ mixer. The A Line Outputs send out the
audio signal from Layer A. The B Line Outputs send out the audio signal from Layer B.
7. Digital Outputs A/B: Use standard digital coaxial cables to connect these 24-bit/96 KHz outputs to devices and mixers
such as the Denon DJ X1800 Prime mixer.
8. Remote Input: Use a standard remote start cable to connect this input to the remote-start output of your mixer (if available).
While connected to a remote-start-compatible mixer, moving the crossfader toward the side that corresponds to this
SC5000 Prime (or raising the channel fader for its channel) will automatically start the track on the currently selected layer.
®
9. Kensington Lock Slot: Use this slot to secure SC5000 Prime to a table or other surface.
