Portable Floor Screen
User Manual

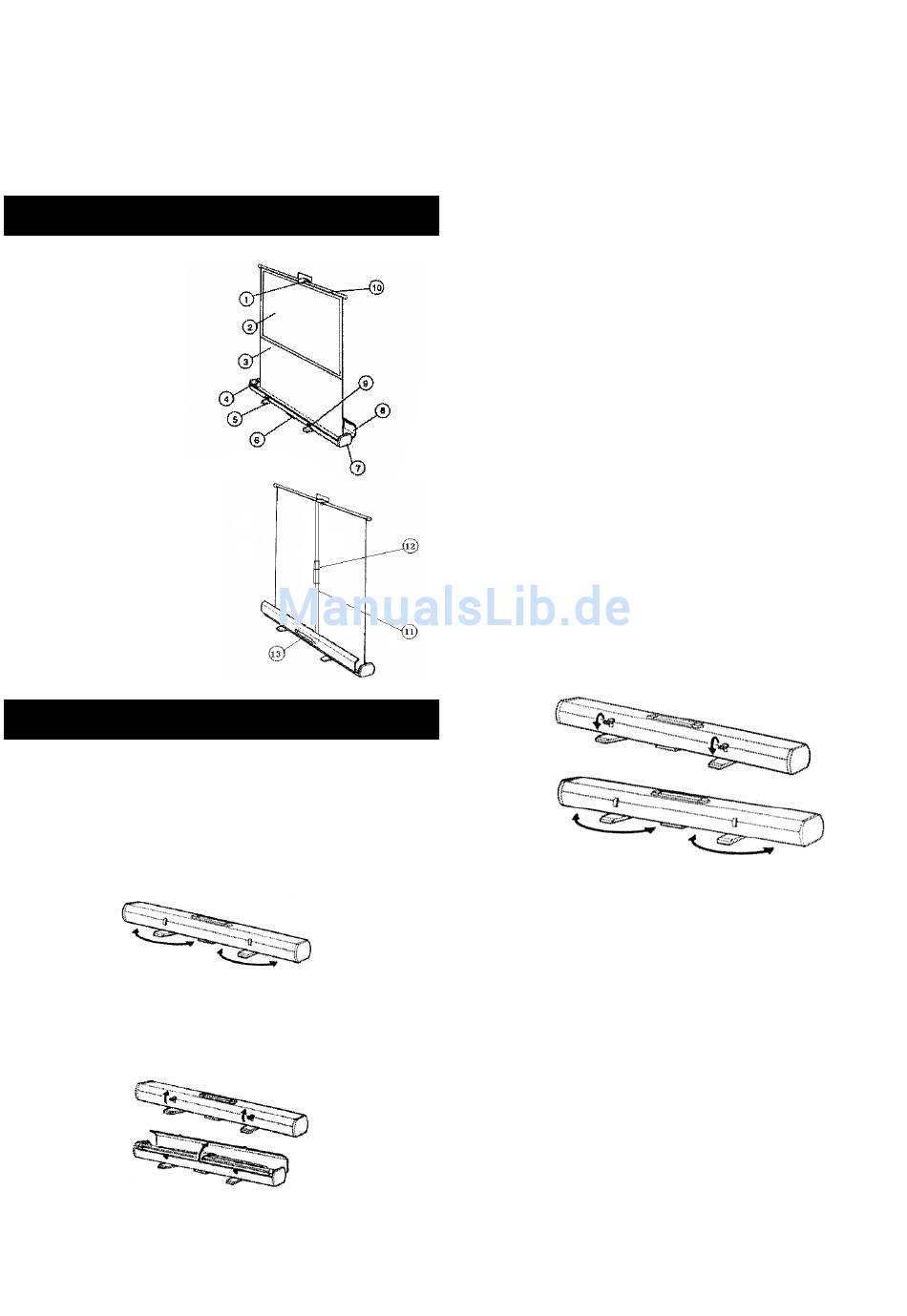

Parts Identification

1. Handle
2. Screen fabric
3. Skirt film
4. Left end cap
5. Rotating foot
6. Bottom case
7. Right end cap
8. Case cover
9. Case latch
10. Top bar
11. Vertical support pole
12. Lock nut
13. Case hand
Screen Operation
Setting up the screen:
1. Place the screen on the floor in the desired position
and rotate the feet so that they are perpendicular to
the case.
2. Release the latches and open the case cover.
Note: Push down lightly on the center of the case lid
to release the catches.
3. Pull the screen fabric up by using the handle on the
top slat making sure it stays horizontal.
4. Loosen the locking nut on the vertical support and
extend it to the desired height. Make sure the
locking nut is tightened securely afterwards.
Note: When setting up the screen, position it so that
when fully raised the audience can see the whole
screen.
Storing the screen:
1. Loosen the locking nut on the vertical support pole
and retract the pole to its original length. Securely
tighten the locking nut.
2. Use the handle on the top rail to lower the screen
fabric back into its case. Do not let go of the handle
until the screen fabric is fully retracted, doing so may
damage the screen.
3. Take out the vertical support pole and take back into
its case.
4. Close the case cover and secure the latches. It may
be necessary to press down on the top of the case to
get the latches to engage properly.
Note:
● Before carrying the case rotate the feet so that
they are in line with the case and out of the way.
● Make sure the upper slat keep horizontal when
retract the fabric back into the casing.
3
