Field of application and product discription:
The SAA 80-0x is intended for the reception of satellite signals and only for use
in domestic environments. It is not suitable for installation on structures prone
to vibration.
 It is essential that you observe the information on the maximum wind load
in the technical data. If this load is exceeded, parts may break loose!
The SAA 80-0x is suitable for use with a LNB for receiving signals from one
satellite position. By using a multifeed bar (SZU 85-0x) it is possible to receive
several satellite positions. The LNB as well as the multifeed bar are not part of
the delivery scope.
 Do not use the SAA 80-0x for any other purpose than the one mentioned
in this manual! Any other use voids the statutory and manufacturer's
warranty. In particular, you must never alter any parts or use parts
other than those specifically intended for use with the antenna by the
manufacturer. Failure to comply with this may cause the antenna to be no
longer sufficiently stable and safe!
Grounding, lightning protection and
equipotential bonding:
Grounding and lightning protection must only be undertaken by
trained electricians!
 Never execute any grounding and lightning protection work if you are not
a trained professional with the relevant skills! These printed instructions
are not to be construed as an encouragement for laypersons to execute
grounding and lightning protection work on their own initiative. Their
purpose is to provide additional information to trained technicians!
 The antenna must be installed and grounded according to the DIN
EN 60728-11 standard.
 For grounding purposes, the mast must be connected to the lightning
protection system of the building, using the shortest possible way and a
suitable grounding conductor. If the building has no lightning protection
system, it must be connected to the grounding point of the building.
Connections to the lightning protection system may only be made by a
qualified lightning protection technician.
 Antenna cables and grounding conductors must not be routed through
rooms that are used to store easily inflammable materials (such as hay or
straw) or that are prone to the formation of explosive atmospheres (such as
gases and vapors).
 If the parabolic aerial is used in antenna systems (e.g. installation with
distribution), the grounding measures must be implemented in such a way
that the ground protection remains effective in case individual units are
removed or exchanged.
 Hazards may not only arise from thunderstorms (lightning strike) but also
from static electricity or short-circuits in connected devices. For this reason,
an equipotential bonding conductor from copper with a section of 4 mm² is
a general safety requirement for all antenna systems.
 The cable shields of all coaxial antenna downlink cables must be connected
to the mast with an equipotential bonding conductor.
Grounding is not mandatory for only such antennas that are installed more
than 2 m below the edge of the roof and, at the same time, less than 1.5 m
from the building.

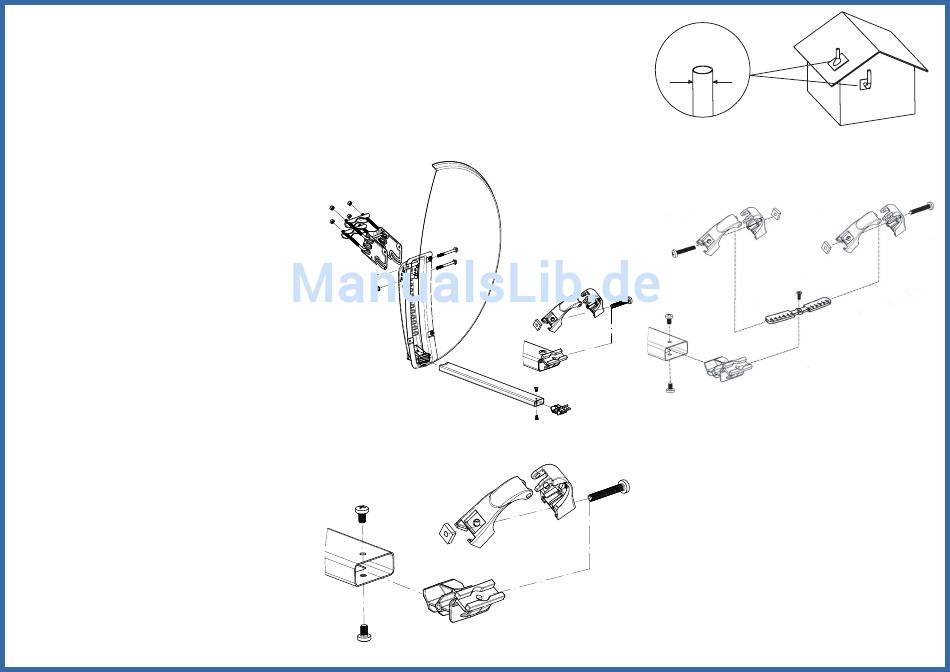

Mounting:
 Use the mounting screws included in the delivery and the mounting holes of
the devices.
 Mount the antenna on a properly installed vertical mast. The mast diameter
should be between 30 and 60 mm (recommended minimum diameter
48 mm). Masts and wall brackets can be found in the AXING product range
(SZU 85-0x).
Water or gas pipes are not suitable materials for aerial masts and
may result in injury!
Fastening clamp
Parabolic reflector
Feed arm
Feed holder
min.48
Multifeed bar
