Team C Torch E Anleitung Seite 8

1

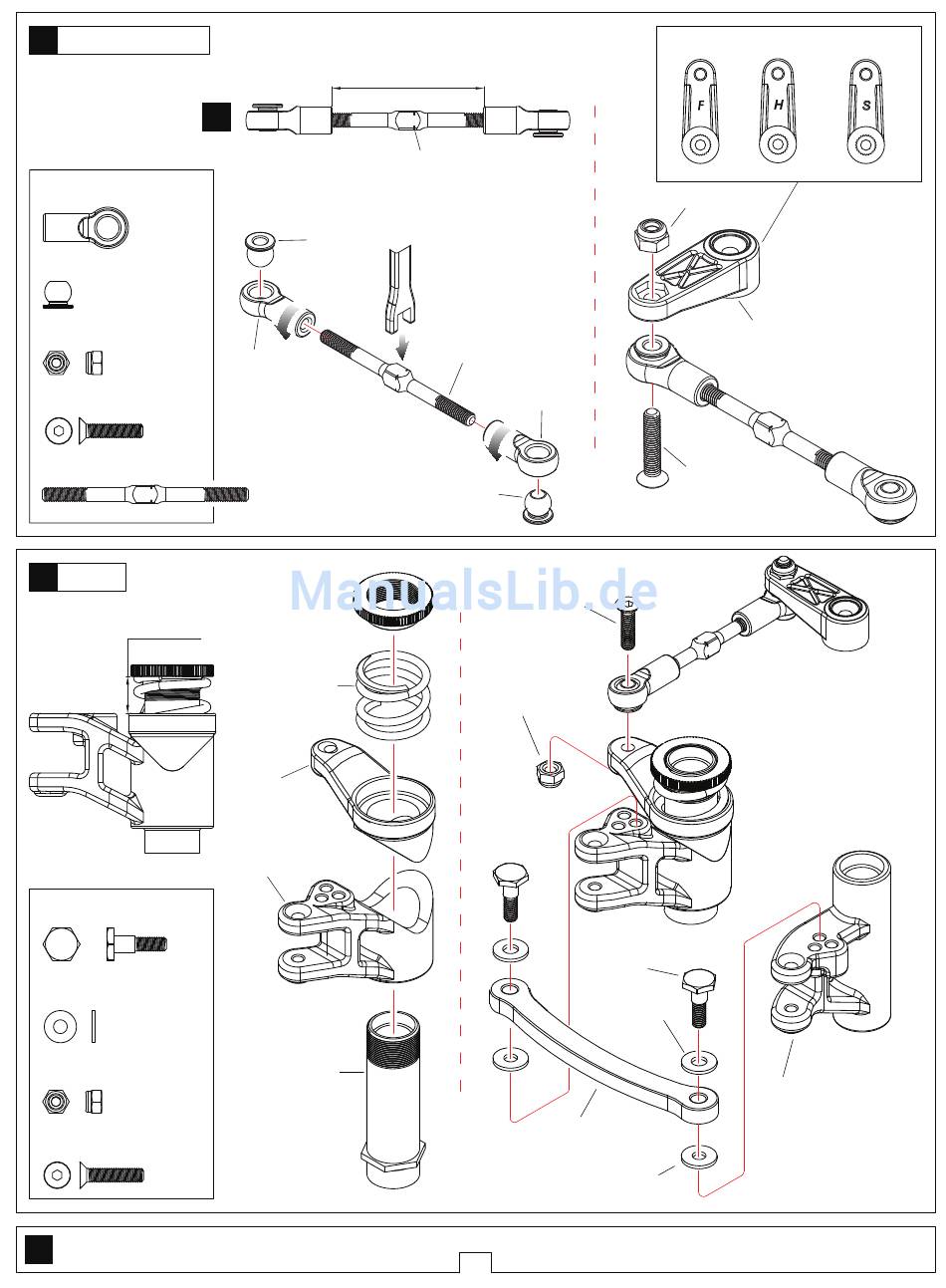

Servo Saver Turnbuckle
Servo Saver Gewindestange
1:1
T08760 5.8 Ball End
Kugelpfanne
............2
T08759 5.8 Ball stud
Kugelkopf
........................2
T08666 M3 Nylon Nut
Nylon Mutter
.....................1
T08674 M3x14 Screw
Schraube
.........1
TG8019 3x45 Turnbuckle
Gewindestange
............1
A
2
-
Buffer
Bag
Servo Saver
Approx.8mm
circa.8mm
T08651 Buffer Screw
Schraube Ackermannstrebe
......2
T02081 3x7x0.8 Washer
Beilagscheibe
.....................2
T08666 M3 Nylon Nut
Nylon Mutter
.....................1
T08674 M3x14 Screw
Schraube
.........1
True-to -scale diagram
1:1
1:1 Größe
A
-
Bag
Approx.33mm
circa.33mm
▲Projection.Note direction
Hinweis Richtung
T08759
5.8 Ball stud
Kugelkopf
T08760
5.8 Ball End
Kugelpfanne
T08650
Servo Saver Nut
Servo Saver Mutter
T08650
Servo Saver Spring
Servo Saver Feder
T08762
Servo Saver-Top
Servo Saver oben
T08762
Servo Saver-Bottom
Servo Saver unten
T08650
Servo Saver Body
Servo Saver Gehäuse
4mm
TG8019
3x45 Turnbuckle
Gewindestange
T08760
5.8 Ball End
Kugelpfanne
T08759
5.8 Ball stud
Kugelkopf
T08674 M3x14
T08666 M3
T08702
Buffer Screw
Schraube
Ackermannstrebe
T08702 3.6x7x0.8
T08702
Steering Rack
Ackermanstrebe
T02081 3x7x0.8
1
Select the servo horn matching the servo being used.
Wählen Sie ein Servo Horn für Ihr Servo.
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08666 M3
T08620
Steering Servo Horn-F
Lenk Servo Horn-F
T08674 M3x14
T08609
Servo Saver-Left
Servo Saver links
