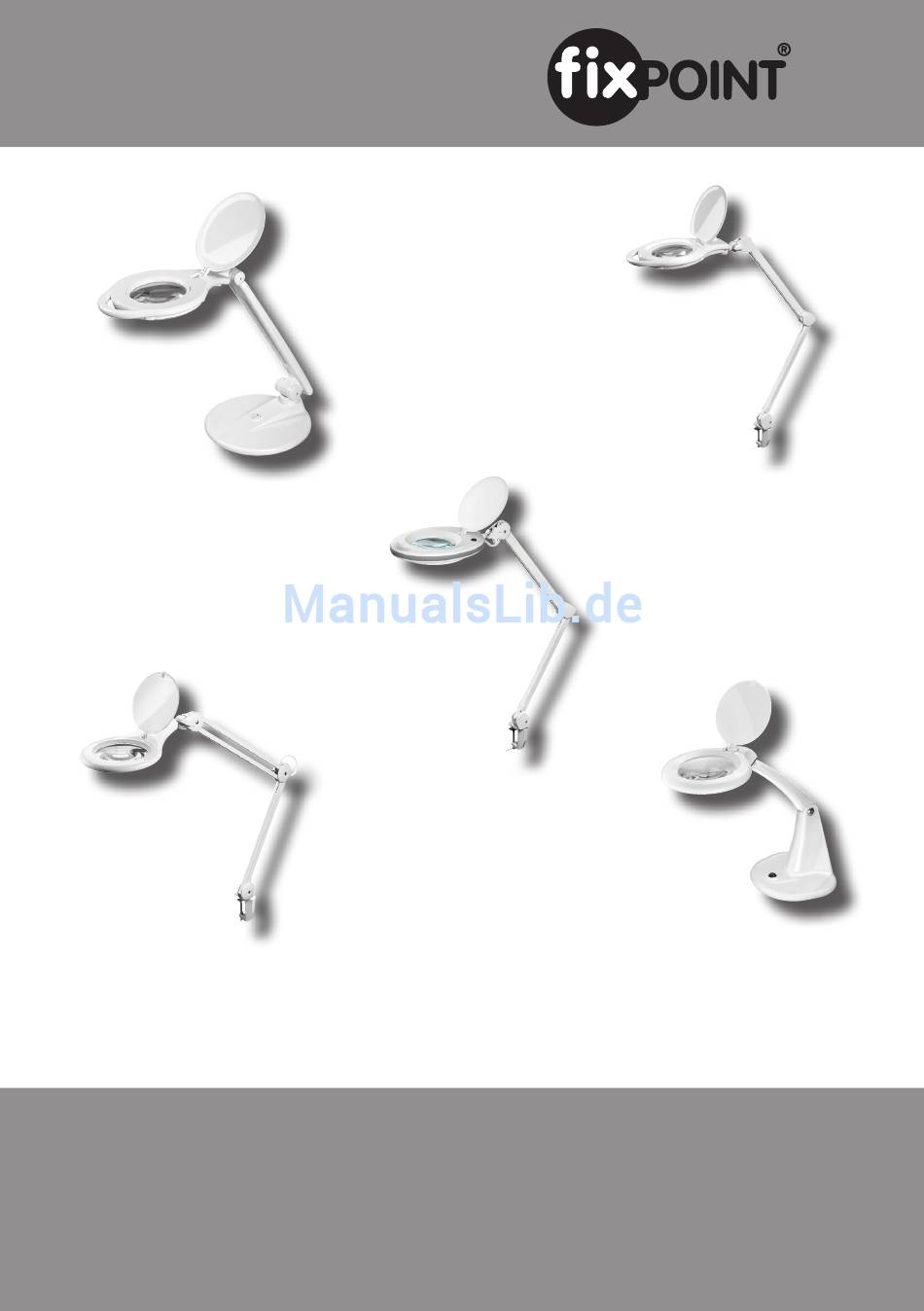

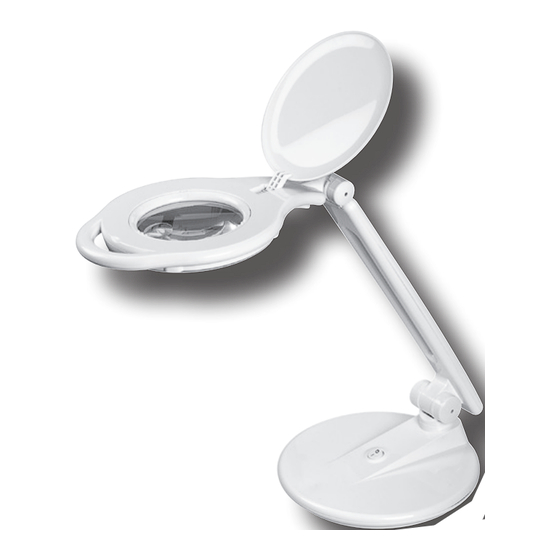

Art.-nr.: 77456 WZ lens light 100 LED WZ lens light 125 LED easy line white easy line white Item No. 77455 Item No. 77456 WZ Lupenleuchte 125 LED easy line Art.-nr.: 45268 WZ lens light with 125 mm lens Item No. 45268 WZ Lupenleuchte 125 LED weiß...
Tisch- oder Arbeitsplatten mit einer Stärke von 20-60 mm. Nicht geeignet sind Faser-, Kunststoff- und Hohlprofilplatten, weil diese mit der Zeit nachgeben können. 5.2 Befestigungskontrolle: Beachten Sie, dass an der Montagestelle durch Bewegen Ihrer Fixpoint -LED Lupenleuchte ® während des Gebrauchs Beschädigungen der Tischplattenoberfläche entstehen können.
Leuchte ausgerichtet werden. Bild 1 5.5 Gelenkjustierung (Standfußmodelle): Für einen festen Halt können die Gelenke mit dem Innensechskant- schlüssel (bei Modell 77455 im Etui am Netzkabel) nachgezogen werden. Bild 2+3 Nicht erreichbare Gelenke dürfen nicht durch Gehäusedemontage justiert werden! Bei zu hohen Kräften kann das Gerät allerdings Schaden nehmen.
Druckfehler und Änderungen an Gerät, Verpackung oder Anleitung behalten wir uns vor. 7 Lupenwechsel: 7.1 Modelle 77450/45271, 77455 und 77456: 1. Stellen Sie die Leuchte in Ausgangsstellung auf und schalten Sie sie aus. 2. Drehen Sie den Haltering gegen den Uhrzeigersinn per Hand auf bis dieser locker ist und nehmen Sie ihn von der Lampe wie abgebildet.
190 x 230 x 290 mm Kabellänge 1600 mm 1500 mm Gelenkarmlänge 900 mm Standfuß Modelle 77455 77456 Betriebsspannung 220-240 V AC bei 50 Hz 220-240 V AC bei 50 Hz Leistungsaufnahme 60 LEDs - 5 W 90 LEDs - 6 W...
Verwertung und Entsorgung von Altgeräten leisten Sie einen wichtigen Beitrag zum Schutz unserer Umwelt. WEEE Richtlinie: 2012/19/EU WEEE Nr.: 82898622 12 EG-Konformitätserklärung: Mit dem CE Zeichen erklärt Fixpoint , eine registrierte Marke der Wentronic ® GmbH, dass das Gerät die grundlegenden Anforderungen und Richtlinien der europäischen Bestimmungen erfüllt.
5.5 Adjustment of the Hinged Bracket 5.6 Engaging 5.7 Using the Magnifier 6 Warranty and Liability 7 Changing the Lens 7.1 Models 77450/45271, 77455 and 77456 7.2 Model 77451 8 Care, Maintenance, Storage and Transport 9 Troubleshooting 10 Specifications 11 Notes on Waste Disposal...
20 to 60 mm. Prepregs, fibre boards and hollow profile boards are not useful, because they can ease or brake easily during use. 5.2 Mounting Control: Mind that moving of your Fixpoint -Lenslight could cause scratches to the table surface during ®...
5.5 Adjustment of the Hinge Bracket (models with clamp only): The pivots can be fastened by the Allen key (model 77455 - etui on the mains cable) for a certain hold. Fig. 2+3 Unreachable hinges must not be adjusted e.g. by demounting the housing! By using too much force the device can be damaged.
7 for a bulb change. • Please store your Fixpoint®-Lenslight in a dry and dustproof surround when not used for longer time. The lamp must be stored impenetrable for children. Please disconnect the device from mains when not in use.
Cable Length 1600 mm 1500 mm Lenght of Hinge Bracket 900 mm Stand Model 77455 77456 Operating Voltage 220-240 V AC at 50 Hz 220-240 V AC at 50 Hz Power Consumption 60 LEDs - 5 W 90 LEDs - 6 W...
12 CE Declaration: With the CE sign Fixpoint , a registered brand of the Wentronic GmbH ensures, ® that the product is conformed to the basic standards and directives. All trade marks and registered brands are the property of their respective owners.
Seite 16
Revision Date: 2013-06-10 Version 5 Fixpoint is a registered ® trademark of Wentronic GmbH in Germany and/or other countries. Wentronic GmbH Pillmannstraße 12 38112 Braunschweig Germany Designed and Developed in Germany. Assembled in China...
