Multisport
Recommendations
Thank you for choosing a STRAMATEL scoreboard!
We hope that you will be fully satisfied with our product. For any information, please do not hesitate to contact us.
In order to install the scoreboard set correctly, we recommend that the instructions indicated are followed correctly, and that the
material supplied by STRAMATEL is used correctly without any alteration.
However, if extra information is required, please contact Stramatel technical service with the model reference and serial number (on
the sticker under the control console).
Any alteration made to the equipment delivered may deteriorate it and result in the cancelling of the warranty.
Caution: Installation must be performed by qualified staff and must comply with IEC 364 and national wiring regulations.

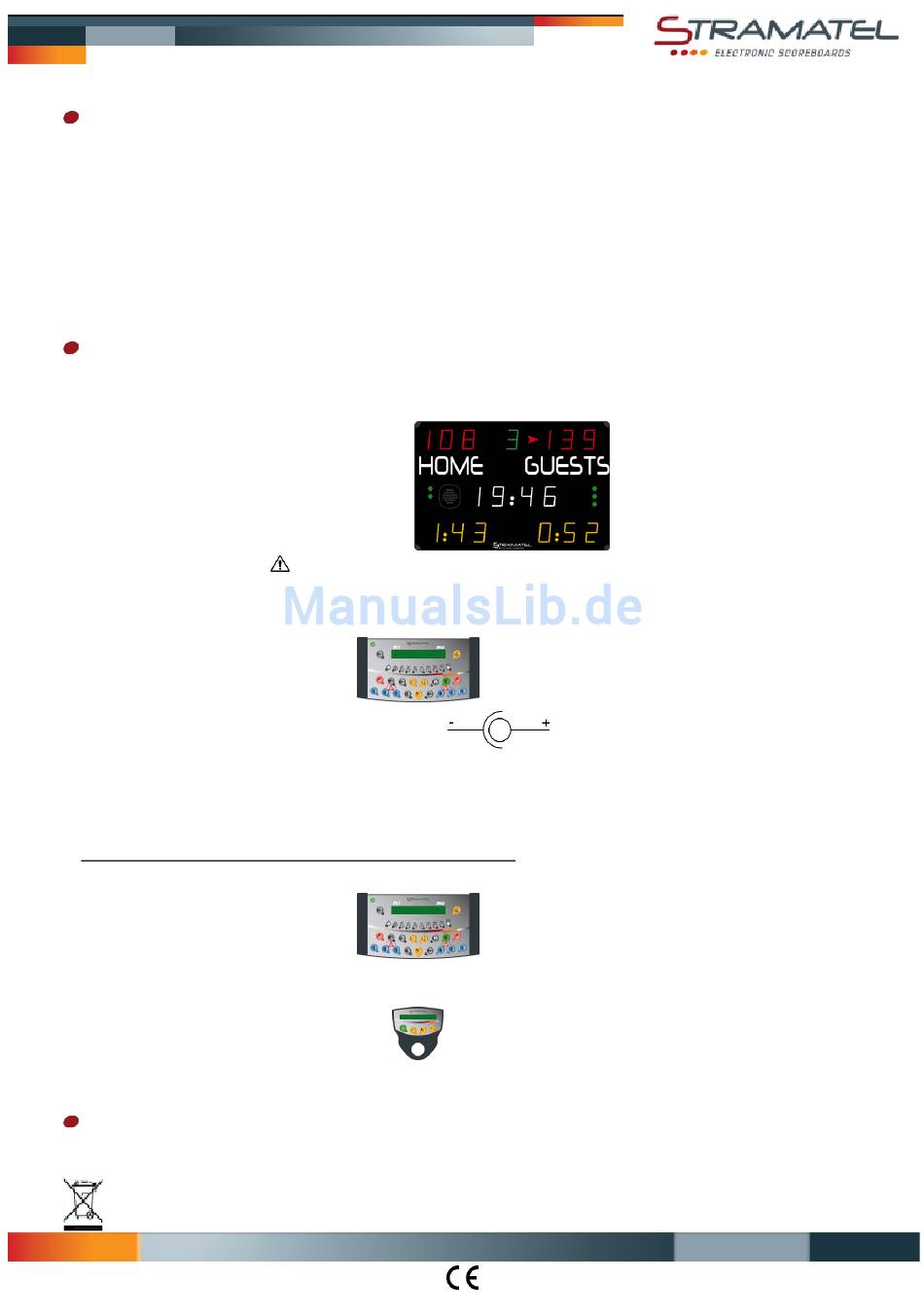

Technical data

Equipment for indoor use only.
Use a soft dry cloth to clean the equipment (Never use water or other liquids – risk of electric shock).
Scoreboard
Class I equipment – Must be connected to earth.
Dimensions 1500 x 1000 x 90 mm
Weight 24 kg
Power supply 100-240V 50/60Hz 0,74-0,31A
Power consumed 74VA
Horn loudness (120dBa at 1m):
reasonable distance from the scoreboard. The horn is not equipped with the possibility to adjust the loudness of its sound. However, it
is possible to dampen down the sound by replacing the grill in front of the horn by a full plate of the same dimension (180x160mm).
Main control console – Radio controlled model
Dimensions 340 x 175 x 60 mm
Weight 790 g
Transmission frequency 869,7 - 870,0 MHz
Power supply 100-240V 50/60Hz / 12Vdc 500mA
Internal batteries NIMH 5x1,2V 1300mAh (16 hours autonomy)
Use only power supply and batteries supplied by STRAMATEL.
Control console recharge: turn off and disconnect the control consoles. Plug the power supply into the back of the main control
console, then plug it into an appropriate mains outlet (the socket should be as close as possible to the control console and must be
easily accessible).
Leave the main control console under constant recharge when not in use.
Main control console – Cable transmission model
Dimensions 340 x 175 x 60 mm
Weight 650 g
Power supply: the control console is powered by the scoreboard. It should only be connected to the STRAMATEL system supplied.
Separate timer control console
Dimensions 145 x 150 x 40 mm
Weight 180 g
Power supply: the console is powered by the main control console. It should only be connected to the STRAMATEL system supplied.

Environment and recycling

Please help us to protect the environment by disposing of the packaging in accordance with the national regulations for waste processing.
Recycling of obsolete appliances: appliances with this label must not be disposed off with the general waste. They must be
collected separately and disposed off according to local regulations.
ZI de Bel Air 44850 LE CELLIER FRANCE
IA452MS7000_A - Installation 452MS7000.docx
Compact Range
the high sound pressure can deteriorate hearing. Therefore, the spectators should be kept at a
