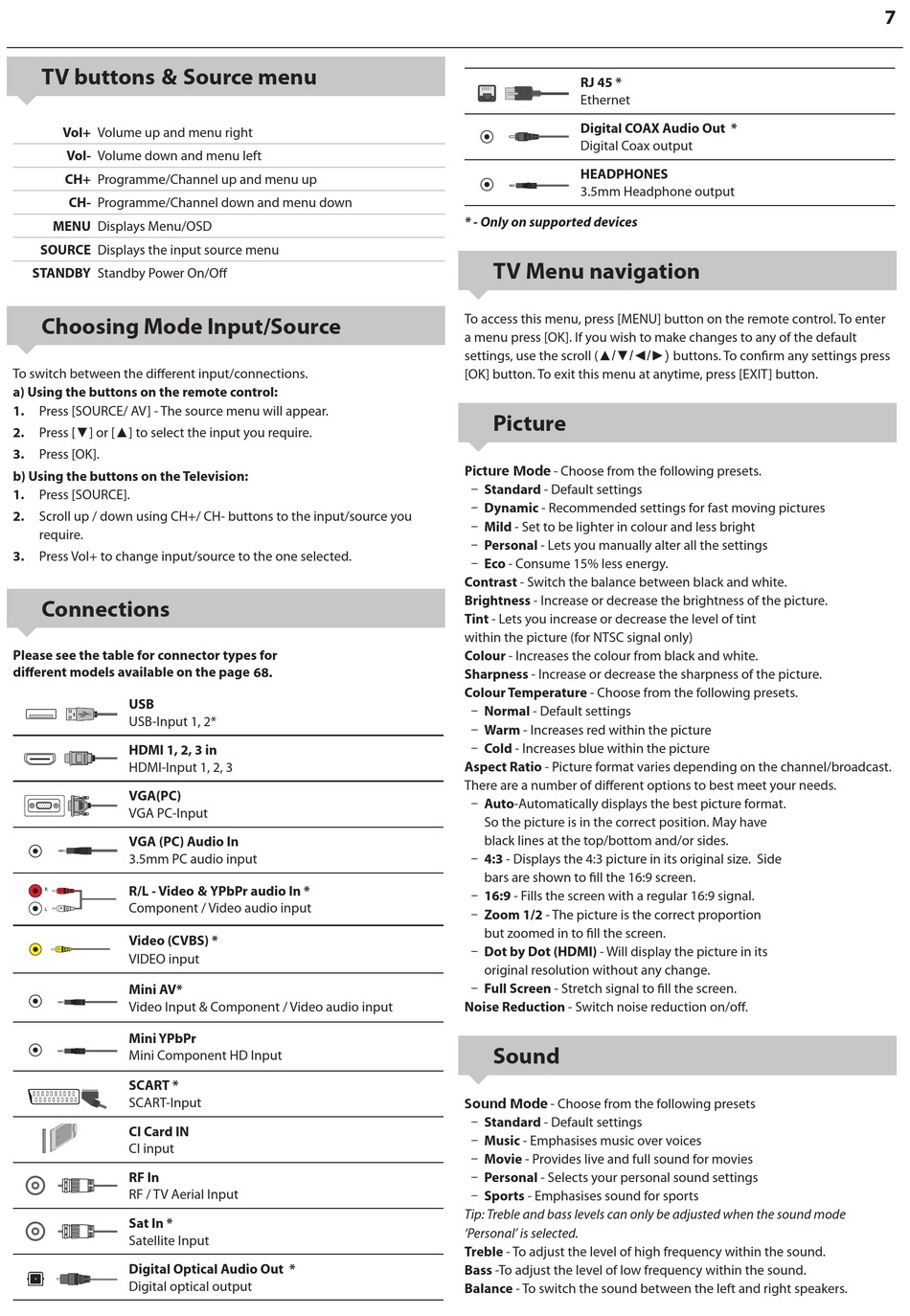

Sharp LC-32CHE5100EW Benutzerhandbuch Seite 7

TV buttons & Source menu

Vol+ Volume up and menu right
Vol- Volume down and menu left
CH+ Programme/Channel up and menu up
CH- Programme/Channel down and menu down
MENU Displays Menu/OSD
SOURCE Displays the input source menu
STANDBY Standby Power On/Off
Choosing Mode Input/Source

To switch between the diff erent input/connections.
a) Using the buttons on the remote control:
1. Press [SOURCE/ AV] - The source menu will appear.
2. Press [▼] or [▲] to select the input you require.
3. Press [OK].
b) Using the buttons on the Television:
1. Press [SOURCE].
2. Scroll up / down using CH+/ CH- buttons to the input/source you
require.
3. Press Vol+ to change input/source to the one selected.
Connections

Please see the table for connector types for
diff erent models available on the page 12.
USB
USB-Input 1, 2*
HDMI 1, 2, 3 in
HDMI-Input 1, 2, 3
VGA(PC)
VGA PC-Input
VGA (PC) Audio In
3.5mm PC audio input
R/L - Video & YPbPr audio In *
R
Component / Video audio input
L
Video (CVBS) *
VIDEO input
Mini AV*
Video Input & Component / Video audio input
Mini YPbPr
Mini Component HD Input
SCART *
SCART-Input
CI Card IN
CI input
RF In
RF / TV Aerial Input
Sat In *
Satellite Input
Digital Optical Audio Out *
Digital optical output
68.
*
RJ 45 *
Ethernet
Digital COAX Audio Out *
Digital Coax output
HEADPHONES
3.5mm Headphone output
* - Only on supported devices
TV Menu navigation

To access this menu, press [MENU] button on the remote control. To enter
a menu press [OK]. If you wish to make changes to any of the default
settings, use the scroll (▲/▼/◄/►) buttons. To confi rm any settings press
[OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets.
– Standard - Default settings
– Dynamic - Recommended settings for fast moving pictures
– Mild - Set to be lighter in colour and less bright
– Personal - Lets you manually alter all the settings
– Eco - Consume 15% less energy.
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Tint - Lets you increase or decrease the level of tint
within the picture (for NTSC signal only)
Colour - Increases the colour from black and white.
Sharpness - Increase or decrease the sharpness of the picture.
Colour Temperature - Choose from the following presets.
– Normal - Default settings
– Warm - Increases red within the picture
– Cold - Increases blue within the picture
Aspect Ratio - Picture format varies depending on the channel/broadcast.
There are a number of diff erent options to best meet your needs.
– Auto-Automatically displays the best picture format.
So the picture is in the correct position. May have
black lines at the top/bottom and/or sides.
– 4:3 - Displays the 4:3 picture in its original size. Side
bars are shown to fi ll the 16:9 screen.
– 16:9 - Fills the screen with a regular 16:9 signal.
– Zoom 1/2 - The picture is the correct proportion
but zoomed in to fi ll the screen.
– Dot by Dot (HDMI) - Will display the picture in its
original resolution without any change.
– Full Screen - Stretch signal to fi ll the screen.
Noise Reduction - Switch noise reduction on/off .
Sound

Sound Mode - Choose from the following presets
– Standard - Default settings
– Music - Emphasises music over voices
– Movie - Provides live and full sound for movies
– Personal - Selects your personal sound settings
– Sports - Emphasises sound for sports
Tip: Treble and bass levels can only be adjusted when the sound mode
'Personal' is selected.
Treble - To adjust the level of high frequency within the sound.
Bass -To adjust the level of low frequency within the sound.
Balance - To switch the sound between the left and right speakers.
7
