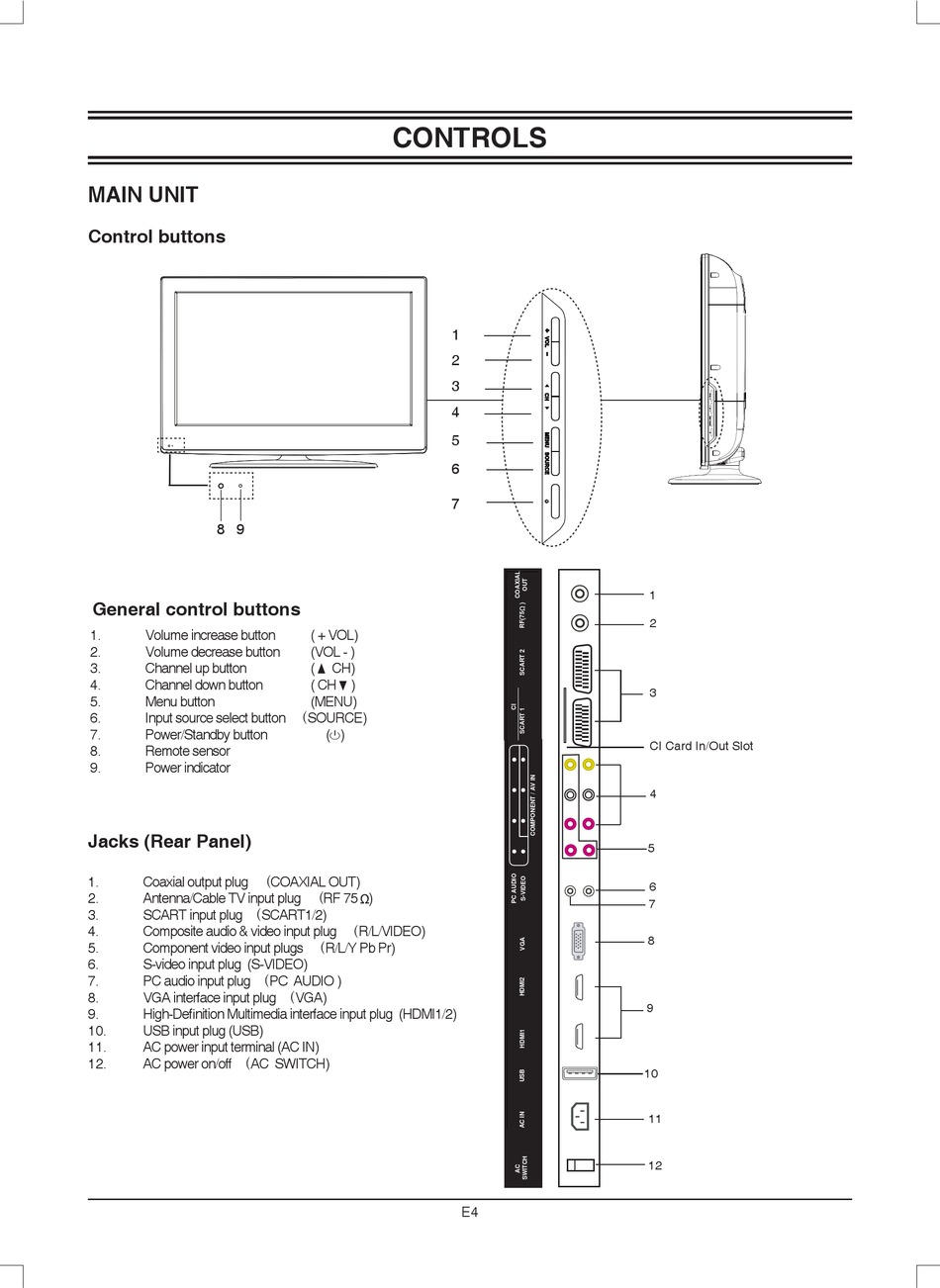

MAIN UNIT

Control buttons
8 9
General control buttons
1. Volume increase button
2. Volume decrease button
3. Channel up button
4. Channel down button
5. Menu button
6. Input source select button
7. Power/Standby button
8. Remote sensor
9. Power indicator
Jacks (Rear Panel)
1. Coaxial output plug
2. Antenna/Cable TV input plug
3. SCART input plug SCART1/2)
4. Composite audio & video input plug
5. Component video input plugs
6. S-video input plug (S-VIDEO)
7. PC audio input plug
8. VGA interface input plug
9. High-Defi nition Multimedia interface input plug (HDMI1/2)
10. USB input plug (USB)
11. AC power input terminal (AC IN)
12. AC power on/off AC SWITCH)

CONTROLS

( + VOL)
(VOL - )
( o CH)
( CH p )
(MENU)
SOURCE)
(z)
COAXIAL OUT)
RF 75 )
R/L/VIDEO)
R/L/Y Pb Pr)
PC AUDIO )
VGA)
1
2
3
4
5
6
7
E4
1
2
3
CI Card In/Out Slot
4
5
6
7
8
9
10
11
12
