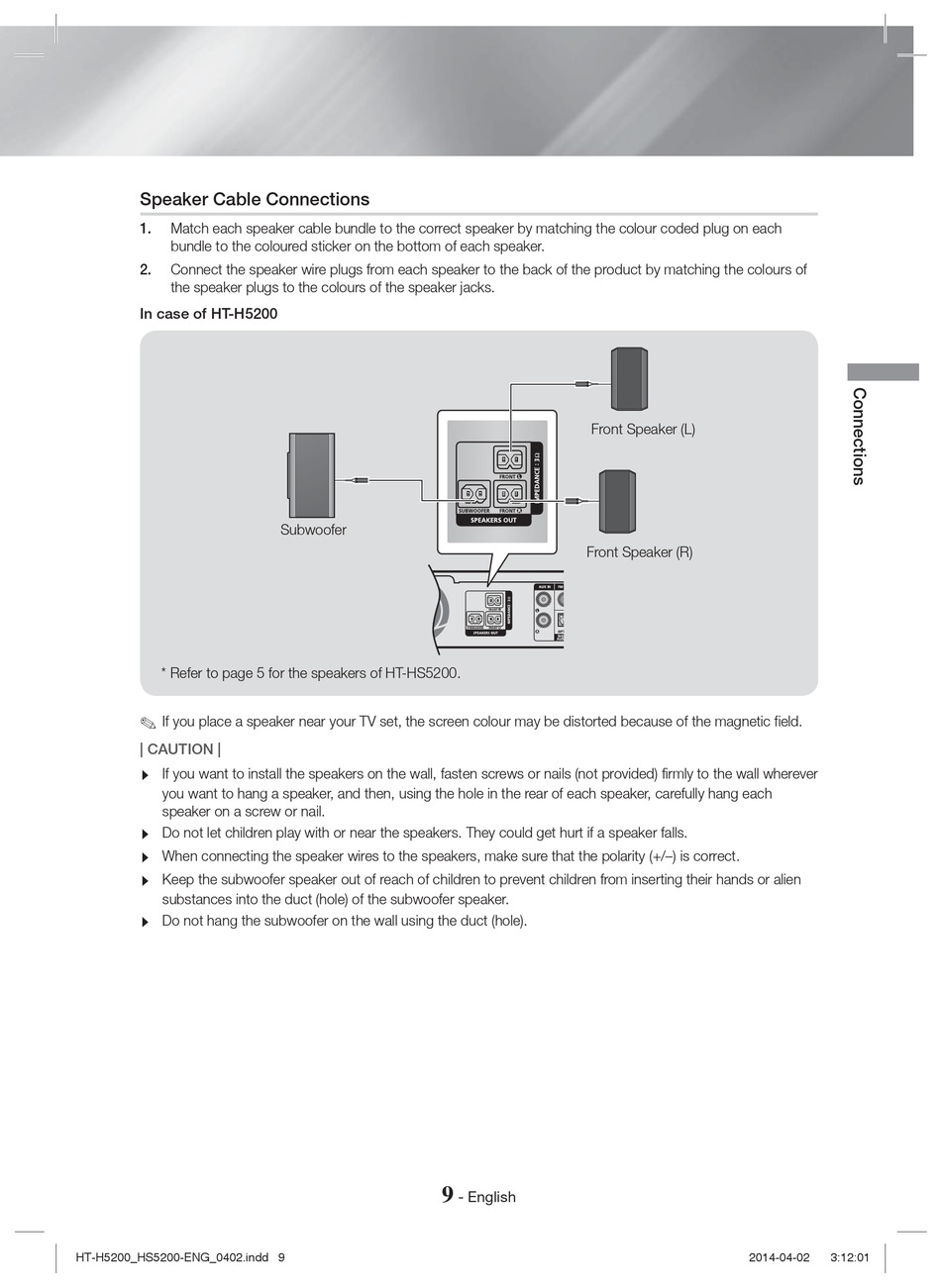

Speaker Cable Connections
1. Match each speaker cable bundle to the correct speaker by matching the colour coded plug on each
bundle to the coloured sticker on the bottom of each speaker.
2. Connect the speaker wire plugs from each speaker to the back of the product by matching the colours of
the speaker plugs to the colours of the speaker jacks.
In case of HT-H5200
* Refer to page 5 for the speakers of HT-HS5200.
✎
If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field.
| CAUTION |
\
If you want to install the speakers on the wall, fasten screws or nails (not provided) firmly to the wall wherever
you want to hang a speaker, and then, using the hole in the rear of each speaker, carefully hang each
speaker on a screw or nail.
\
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
\
When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
\
Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien
substances into the duct (hole) of the subwoofer speaker.
\
Do not hang the subwoofer on the wall using the duct (hole).
HT-H5200_HS5200-ENG_0402.indd 9 HT-H5200_HS5200-ENG_0402.indd 9
Subwoofer
9
- English
Front Speaker (L)
Front Speaker (R)
