Installation Using Half-Sleeve
1. Install half-sleeve in the dashboard.
a. Install adapter if necessary (optional).
b. Install half-sleeve into adapter or dashboard (use only the
supplied screws). Do not force the sleeve into the opening or
cause it to bend or bow.
WARNING! Only connect the unit to a 12-volt power supply
with proper grounding.
c. Locate the series of bend-tabs along the top, bottom and sides
of the mounting sleeve. With the sleeve fully inserted into
the dashboard opening, bend as many of the tabs outward
as necessary so that the sleeve is firmly secured to the
dashboard.
2. Use the M5 x 6 screws (provided) to install the mounting brackets to
each side of the radio using the holes indicated in the diagram. DO
NOT USE OTHER SCREWS.
3. Place the radio in front of the dashboard opening so the wiring can
be brought through the mounting sleeve.
4. Complete wiring as illustrated in the wiring diagram. Once the wiring
is complete, reconnect the battery negative terminal. If there is no
ACC available, connect the ACC lead to the power supply with a
switch.
CAUTION! Be careful not to damage the car wiring.
5. A fter completing the wiring connections, turn the unit on to confirm
operation (ignition switch must be on). If unit does not operate,
recheck all wiring until problem is corrected.
Once proper operation is achieved, turn off the ignition switch
and proceed with final mounting of the chassis.
a. Connect wiring adapter to existing wiring harness.
b. Connect antenna lead.
c. Carefully slide the radio into the half-sleeve, making sure it is
right-side-up. Use the supplied screws to attach the radio to the
half sleeve.
Using the Cosmetic Trim Ring
A cosmetic trim ring is packaged with the head unit for installation
flexibility. This unit will fit into most import dashes with little or no
modification to the dash board/cavity. Some US domestic vehicle
dashes will accept a Double-DIN chassis, but there is usually a small
gap between the radio and dash piece after installation is complete. In
this case, use the appropriate trim ring to conceal any gaps that may be
present.
NOTE: For proper operation of the CD/DVD player, the chassis must be
mounted within 30° of horizontal. Make sure the unit is mounted within
this limitation.

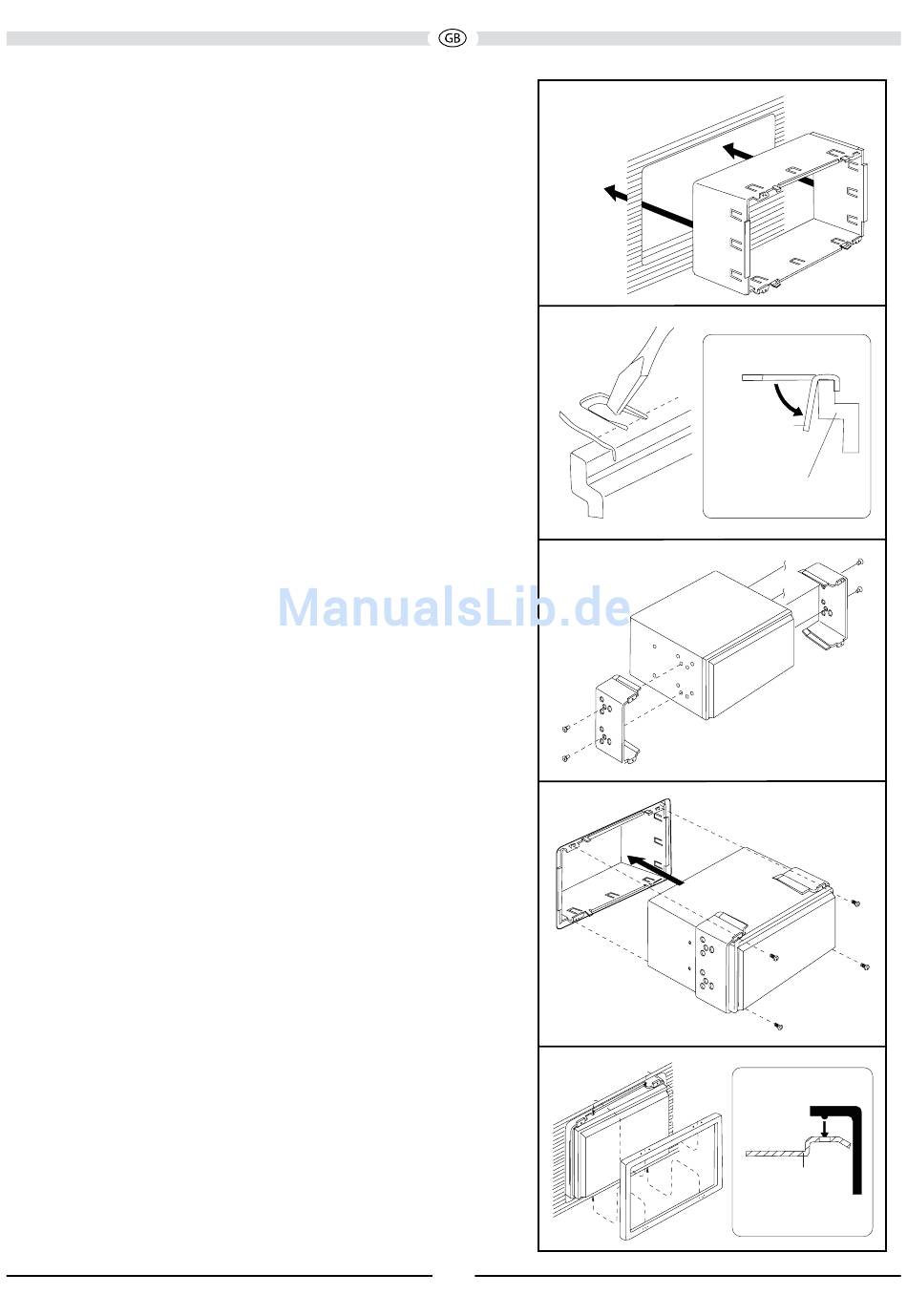

Step 1-b
Step 1-c
Step 2
Step 5-c
6
TAB
DASHBOARD
TRIM RING
MOUNTING
SLEEVE
