EURORACK UB1202/UB1002/UB802/UB502 Bedienungsanleitung

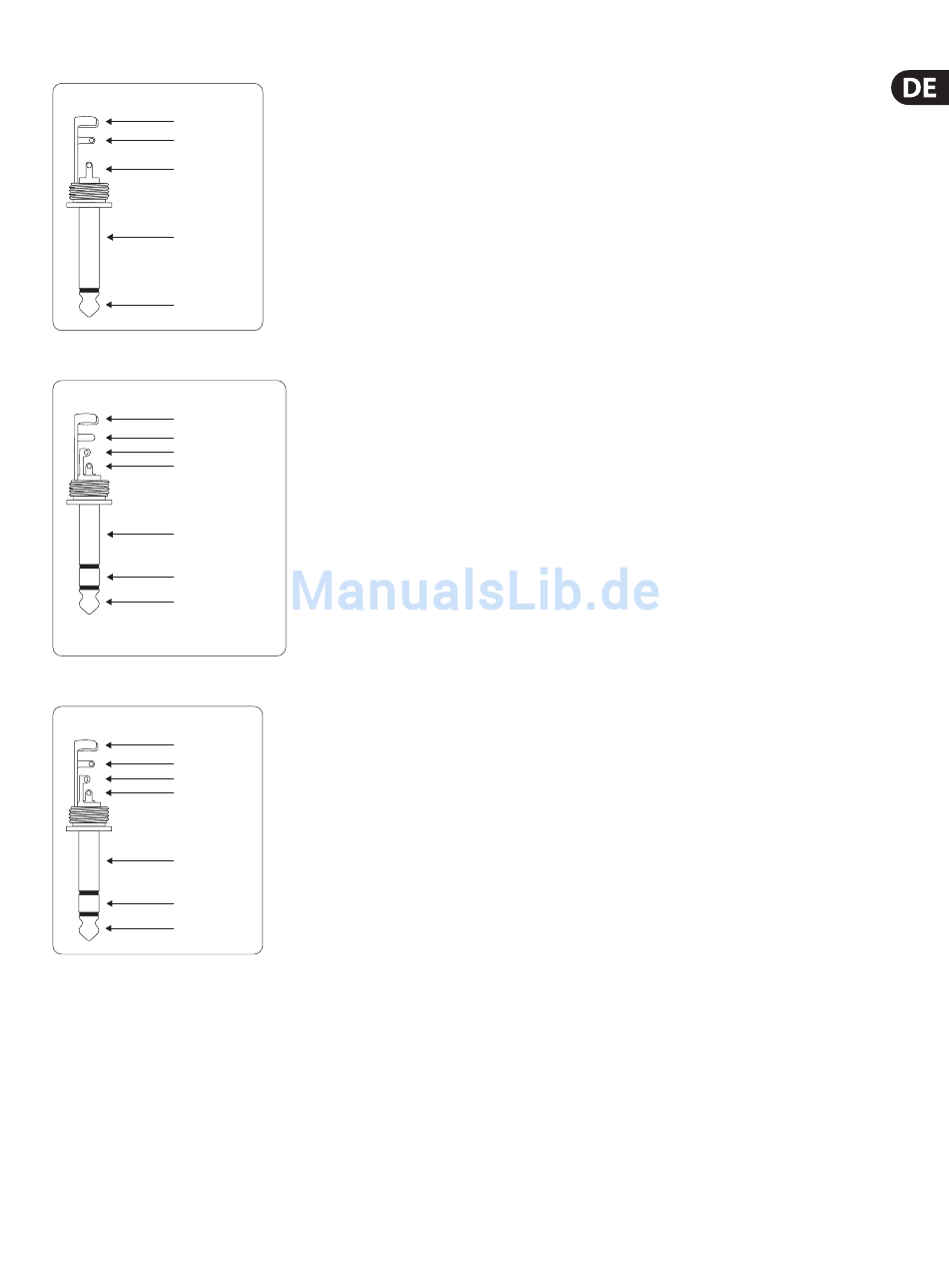

Unbalanced ¼" TS connector
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
tip
(signal)
Abb. 3.2: 6,3-mm-monoklinkenstecker
Balanced ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
cold (-ve)
tip
hot (+ve)
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Abb. 3.3: 6,3-mm-stereoklinkenstecker
¼" TRS headphones connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
right signal
tip
left signal
Abb. 3.4: Kopfhörer-stereoklinkenstecker
