Instructions Manual
Lithium Balancing Charger
1.
Features:
-
For more accuracy, safety and reliability micra processor in the Charger monitors the entire
charging process.
-
This Charger charges 2 (7.4V) and 3 (11.1 V) cell Lithium-Ion and Lithium-Polymer batteries.
-
The charging status is displayed via LEDs
-
Auto-detection of voltage differences between cells ensures maximum capacity and life span of
your batteries.
-
Input jack: DC 15-18 V, 1000 mA
2.
Attention: Important Safety Rules
-
We recommend an old metal ammunition container for storage and charging of Li-Ion and Li-Po
batteries.
-
Never leave batteries in your model. Store them properly.
-
Use this charger for 2 and 3-cell Li-Ion and Li-Po batteries only.
-
Never disassemble, alter or use the charger for other than the design purpose.
-
Never charge a battery immediately after the fl ight. Let it cool down fi rst. Otherwise the battery will
be damaged or destroyed. It may catch fi re or even explode!
-
Never charge a battery which has changed its shape or has a "puffed up" cell. This indicates a
damaged battery and it may short circuit itself, catch fi re or even explode.
-
Never charge near a heat source or electronic equipment.
-
Never charge in direct sun shine or inside a car.
-
Never leave the battery unattended during charge process.
-
Never let the charger get wet nor use it under moist conditions to avoid short circuitry and other
hazard as described before.
-
Never pour liquids onto the charger or let foreign objects get into the charger. In such a case, im-
mediately cut off the power source, disconnect the battery and return the charger to your local
hobby shop or send it direct to us for service.
-
Always place the charger and battery on a fl at, non-fl ammable surface.
-
Never drop the charger nor hit it.
-
Never puncture a Li-Ion or Li-Poly battery.
-
Always check for correct polarity when connecting the battery. Otherwise the battery will be
damaged or destroyed. It may catch fi re or even explode!
-
Never charge more than one battery at a time. Otherwise the batteries will be damaged or
destroyed. They may catch fi re or even explode!
-
Always discard batteries according to the local regulation. Do not discard batteries with your
household garbage.
3.
:
Monitoring the charge process
-
Connect the charger via its power jack to a 15V – 18V power source. The Power LED will light up
red, the Charge LED green.
-
When charging a 2-cell (7.4V) Li-Ion or Li-Po battery, plug the special battery connector into the
charge jack for 2-cell (7.4V) batteries. The Charge LED will fl ash red indicating that the battery
charger is in charge mode. As soon as the battery is fully charged the LED will turn green.
-
When charging a 3-cell (11.1V) Li-Ion or Li-Po battery, plug the special battery connector into the
charge jack for 3-cell (11.1V) batteries. The Charge LED will fl ash red indicating that the battery
charger is in charge mode. As soon as the battery is fully charged the LED will turn green.
:
IKARUS USA
Ikarus Modellflugsport, Inh. Norbert Grüntjens
5876 Enterprise Parkway
Im Webertal 22 · 78713 Schramberg-Waldmössingen
Fort Myers, FL 33905
T el. +49(0)74 02 / 92 91 90 · Fax +49(0)74 02 / 92 91 50
Phone: +1-239-690-0003
info@ikarus.net · www.ikarus.net
Fax: +1-239-690-0028
Hotline: (0,99 € / Min.) +49(0)9001-79 50 20
info@ikarus-usa.net • www.ikarus.net

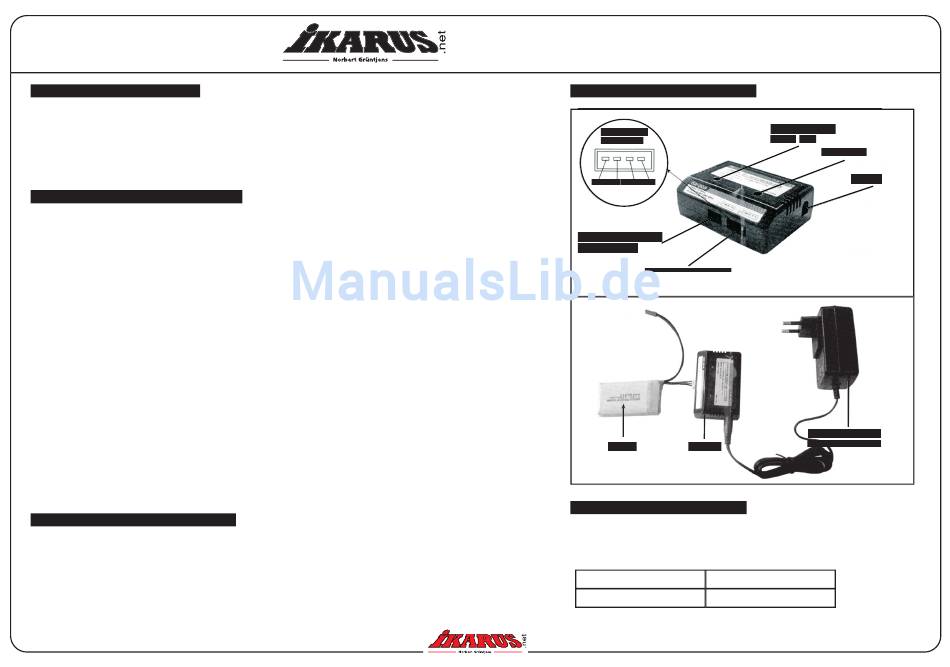

4.
Features and Schematics:
Polarity Assign-
ment Diagram
12.6V 8.4V 4.2V 0V
Charge jack for 2-cell
Charge jack for 2-cell
(7.4V) batteries
(7.4V) batteries
Charge jack for 3-cell
Charge jack for 3-cell
(11.1V) batteries
Battery
5.
Technical Specifi cation:
Output current:
Input current:
Output voltage:
2 cells 7.4V charge jack
8,4V
Charge/ Charge
Status LED
Power LED
Input Jack
Input Jack
Power Adapter/ Power
Power Adapter/ Power
Charger
750 mA
15V – 18V 1000 mA DC
3 cells 11.1V charge jack
12.6V
6993023
6993023-0906
Source
Source
