Integral 33 / CS I55 – Integral 1/3/5

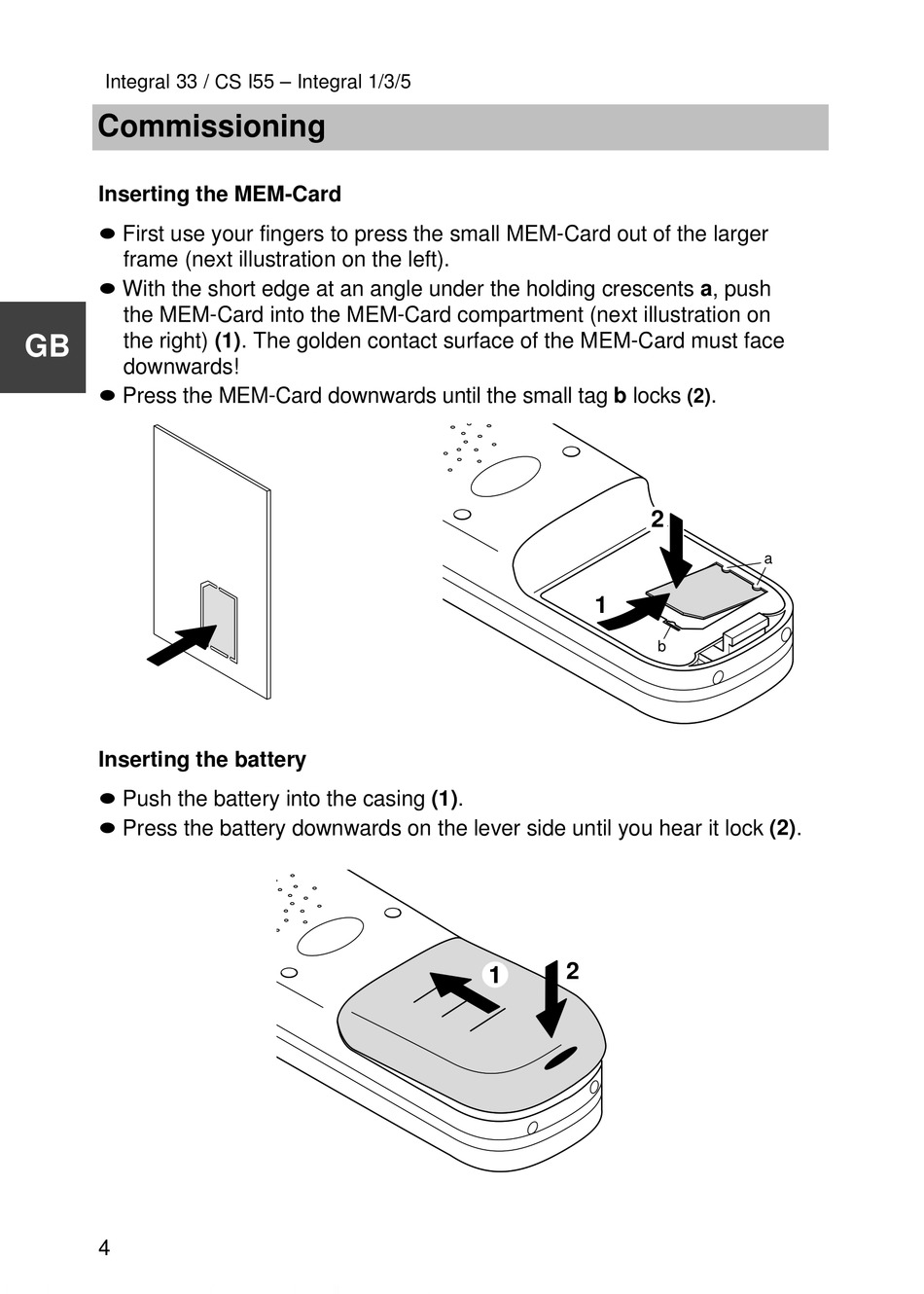

Commissioning
Inserting the MEM-Card
D First use your fingers to press the small MEM-Card out of the larger
frame (next illustration on the left).
D With the short edge at an angle under the holding crescents a, push
the MEM-Card into the MEM-Card compartment (next illustration on
the right) (1). The golden contact surface of the MEM-Card must face
GB
downwards!
D Press the MEM-Card downwards until the small tag b locks
Inserting the battery
D Push the battery into the casing (1).
D Press the battery downwards on the lever side until you hear it lock (2).
4
.
(2)
2
1
b
2
a
