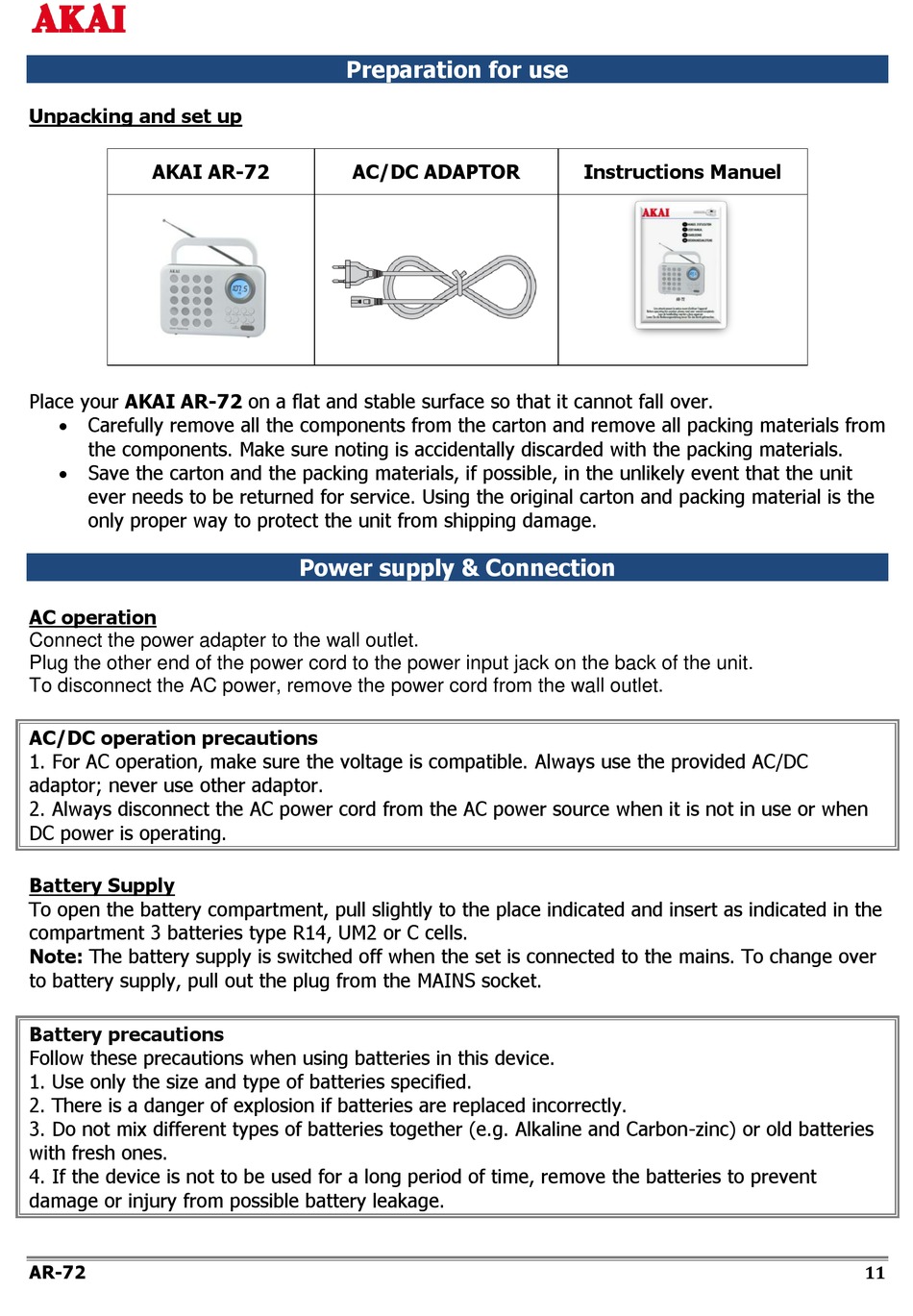

Preparation For Use; Power Supply Connection - Akai AR-72 Bedienungsanleitung

Unpacking and set up
AKAI AR-72
Place your AKAI AR-72 on a flat and stable surface so that it cannot fall over.
 Carefully remove all the components from the carton and remove all packing materials from
the components. Make sure noting is accidentally discarded with the packing materials.
 Save the carton and the packing materials, if possible, in the unlikely event that the unit
ever needs to be returned for service. Using the original carton and packing material is the
only proper way to protect the unit from shipping damage.
AC operation
Connect the power adapter to the wall outlet.
Plug the other end of the power cord to the power input jack on the back of the unit.
To disconnect the AC power, remove the power cord from the wall outlet.
AC/DC operation precautions
1. For AC operation, make sure the voltage is compatible. Always use the provided AC/DC
adaptor; never use other adaptor.
2. Always disconnect the AC power cord from the AC power source when it is not in use or when
DC power is operating.
Battery Supply
To open the battery compartment, pull slightly to the place indicated and insert as indicated in the
compartment 3 batteries type R14, UM2 or C cells.
Note: The battery supply is switched off when the set is connected to the mains. To change over
to battery supply, pull out the plug from the MAINS socket.
Battery precautions
Follow these precautions when using batteries in this device.
1. Use only the size and type of batteries specified.
2. There is a danger of explosion if batteries are replaced incorrectly.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries
with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
AR-72

Preparation for use

AC/DC ADAPTOR
Power supply & Connection
Instructions Manuel
11
