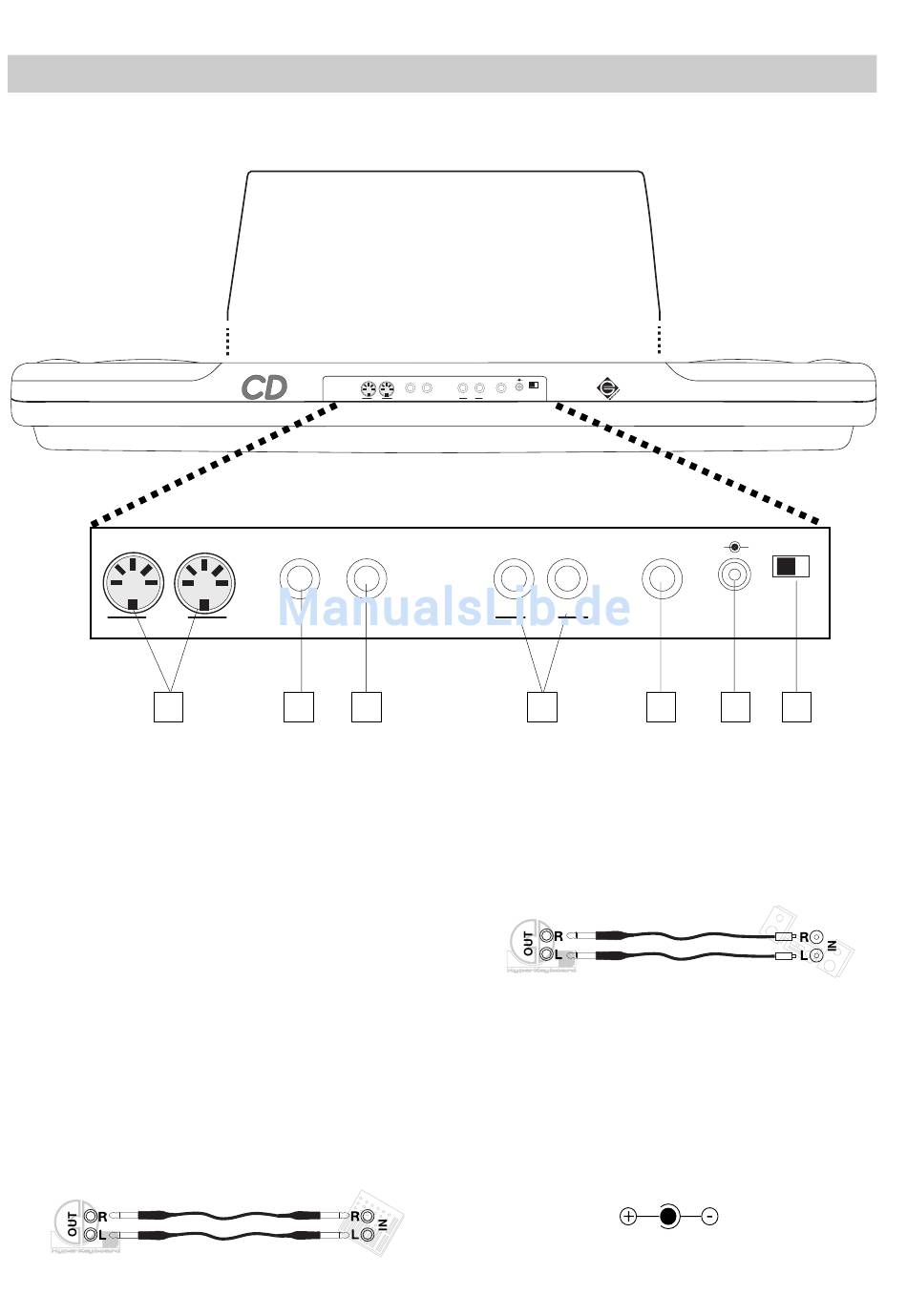

Connection panel

IN
MIDI
1
1. MIDI IN/OUT ports. Sockets for connection to other musi-
cal instruments (or computer). [MIDI IN] allows another in-
strument to control CD10. [MIDI OUT] allows CD10 to con-
trol another instrument.
2. Damper. Socket for the Damper (or Sustain) pedal. This
pedal holds the notes of the Upper section.
3. Volume. Socket for the Volume pedal. Controls the general
volume of the instrument.
4. OUTPUT LEFT/RIGHT sockets. Sockets for connection to
an amplifier or an amplified mixer. Connect both the sockets
for the stereo reproduction or only the [RIGHT/M] output for
mono. Use cables with 1/4' mono jacks on one end to connect
to CD10, and mono jacks suited to the inputs of the amplifier/
mixer at the other end.
Use two 1/4" mono jacks to connect to an amplification sys-
tem for musical instruments:
6
OUT DAMPER VOLUME
2 3
IN OUT DAMPER VOLUME LEFT RIGHT/M PHONES ON/OFF
12 V D.C.
MIDI OUT
LEFT RIGHT/M
OUT
4
Use two RCA type mono jacks to connect to a home stereo
system:
5. Phones. Stereo headphones. Use an RCA-1/4' adapter for
walkman or minidisc headphones.
6. Power supply socket. Connect an optional power supply to
this socket. If batteries are present in the battery compartment,
the power supply will have priority.
Important: Do not use a power supply of a different brand that
is not designed specifically for the CD10. Some power sup-
plies may appear to be similar to the proper power supply but
may damage the circuits of the instrument. Check that the
adapter shows the following symbol (= internal positive pole):
7. ON/OFF switch. Switches the instrument [ON] or [OFF].
PHONES ON/OFF
12 V D.C.
5 6 7
