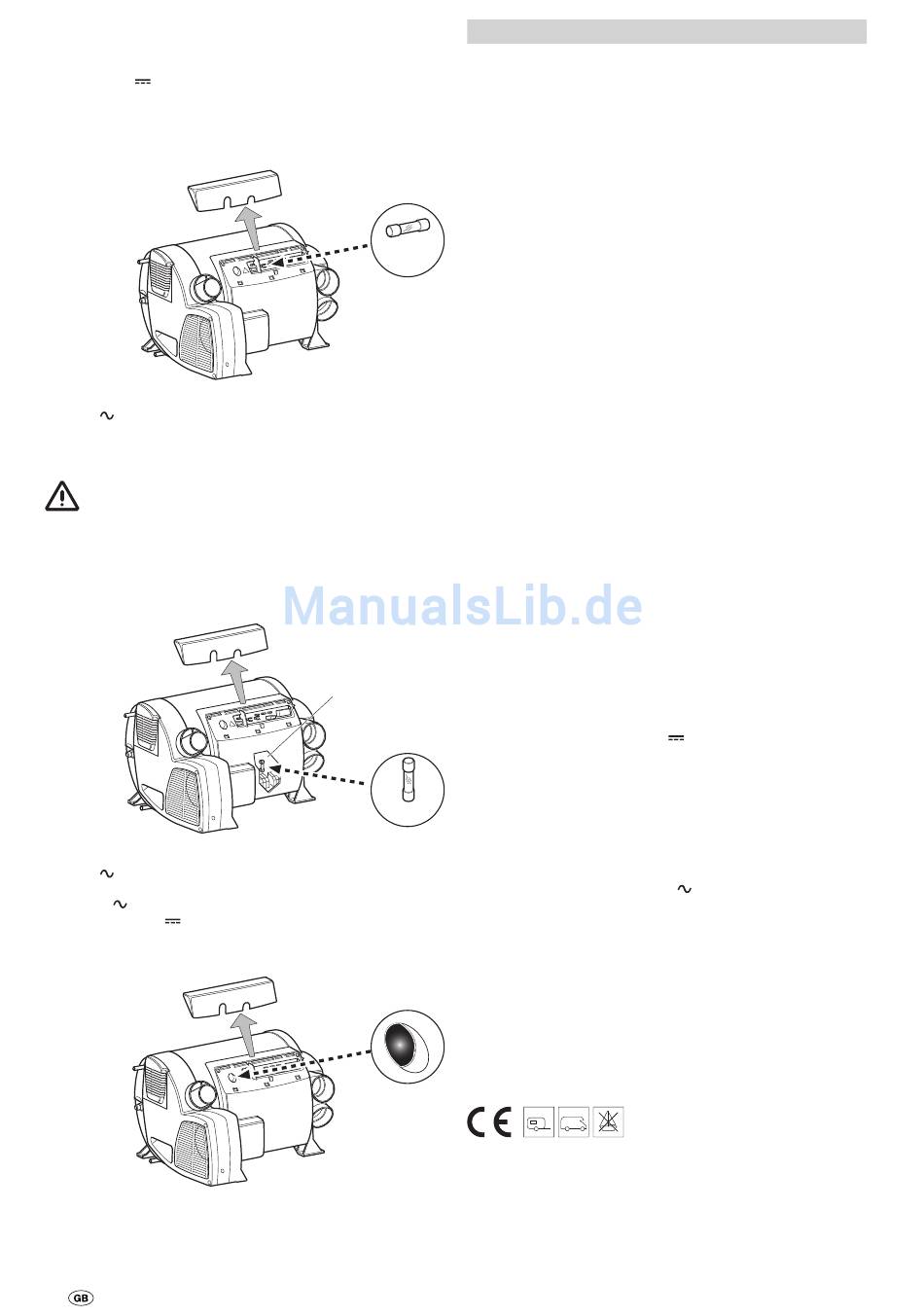

Fuses

Fuse 12 V

The fuse is in the electronics beneath the connection cover.
Always replace the fuse of the unit with an identical fuse.
Appliance fuse: 10 A – slow-acting – 5 x 20 mm (T 10 A)
Figure 5
230 V fuse (Combi E)
The fuse and the power supply lines must only be replaced by
an expert!
The unit must be disconnected from the mains (all
poles) before opening the electronic housing lid.
The fuse is in the power electronics (14) beneath the elec-
tronic housing lid.
This fine fuse must always be replaced with a fuse of the
same type: 10 A, slow-acting, interrupting capacity "H".
Figure 6
230 V overheating protection (Combi E)
The 230 V heating facility has a mechanical overheating
switch. If the 12 V power supply is interrupted during oper-
ation or during the after-run period, for example, the tempera-
tures within the unit could activate the overheating protection.
Figure 7
To reset the overheating protection, allow heater to cool, re-
move connection cover and press red reset button.
8

Technical data

determined in accordance with EN 624 or Truma test
conditions
Device category
I in accordance with EN 437
3 B/P
Type of gas
Liquid gas (propane / butane)
Operating pressure
30 mbar (see type plate)
Water capacity
10 litres
Heating time from approx. 15 °C to approx. 60 °C
Boiler approx. 20 minutes (measured according to EN 15033)
T 10 A
Heater + boiler approx. 80 min.
Pump pressure
max. 2.8 bar
System pressure
max. 4.5 bar
Rated thermal output (automatic operating levels)
Gas mode
Combi 2 E*: 2000 W
Combi 4 (E)*: 2000 W / 4000 W
Combi 6 (E)*: 2000 W / 4000 W / 6000 W
Electrical mode
Combi 2 E* / Combi 4 E* / Combi 6 E*: 900 W / 1800 W
Mixed mode (gas and electrical)
Combi 2 E* / Combi 4 E*: max. 3800 W
Combi 6 E*: max. 5800 W
Gas consumption
Combi 2 E*: 160 g/h
Combi 4 (E)*: 160 – 320 g/h
Combi 6 (E)*: 160 – 480 g/h
Standby heat requirement (all units)
Gas mode 5.2 g/h
Destination countries
Combi 2 E*: GB, IE
Combi 4 (E)* / Combi 6 (E)*:
DE, AT, CH, DK, FI, NL, NO, SE, SK, CZ, CY, BE, IT, PT, RO,
GR, IE, LU, IS, PL, EE, LT, LV, MT, SI, HU, ES, FR, GB, BG, RU
Air delivery volume (free-blowing without warm air duct)
Combi 2 E* /
Combi 4 (E)*: With 3 warm air outlets max. 249 m³/h
14
Combi 6 (E)*: With 4 warm air outlets max. 287 m³/h
Power consumption at 12 V
Heater + boiler
Combi 2 E* /
Combi 4 (E)*: Max. 5.6 A for short periods
T 10 A
Combi 6 (E)*: Max. 5.6 A for short periods
Boiler heating maximum 0.4 A
Stand-by approx. 0.001 A
Heating element – FrostControl (optional): maximum 0.4 A
Power consumption at 230 V
Combi 2 E* / Combi 4 E* / Combi 6 E*
3.9 A (900 W) or 7.8 A (1800 W)
Protection class
IP 21
Weight (without water)
Heater:
Heater with
peripheral devices: 15.6 kg
CE product ID number
Combi 2 E*: CE-0085CN0021
Combi 4 (E)* / Combi 6 (E)*: CE-0085BS0085
* (UK) CP plus ready
With 4 warm air outlets max. 287 m³/h
(average power consumption approx. 1.1 A)
(average power consumption approx. 1.3 A)
15.1 kg
