The controls for LED spots 1-4 are now allocated to the built in LED lights.

3. Operation

The Showlite LDO-10 LED Operator uses 3 different operation modes: Manual, Auto and

Music (sound) mode. After switching on net power the last mode is active which was on for

longer than 10sec before last power off. By pressing button (13) Auto mode will be active,

button Music (14) switches to sound control mode, the LEDs red/green indicate the active

mode. If you want to switch to Manual mode, just press the button of the actual active

mode, both LEDs are off.

In all modes you can press the button (11) Blackout, all LED spots turn off

(standby). The red LED close to the button starts flashing. By pressing the

Blackout button again, the last mode and settings will appear. Master dimmer

control (7) is active in all modes, you can adjust overall brightness from 0% to 100%.

3.1 Manual mode

In Manual mode all settings are made by the controls for LED spots 1-1. Manual mode is

primarily used to create and save your own scenes. Your scenes (or the preset scenes) will

afterwards be executed in a chase in Auto and Music mode.

Switch the controller to Manual mode (see above). Press button (4) to select User/Bank,

green LED turns on. Use controls as shown below to design your scene:

- set colors of spots 1-4 with rotary switches (1)

- adjust brightness of spots 1-4 with dimmer faders (2)

note: master dimmer (7) is active

- fadetime control (9) is active as well, turn anti-clockwise to set fade time to "0",

all changes e.g. color switching will be executed immediately. If you turn control

clockwise, fade time will increase

Save a scene: when you are satisfied with all your settings you can save your scene in a

chase. There are up to 12 scenes per chaser bank and 12 banks for storage. Preset button

(4) until green LED Fader/Preset is on. With rotary switch (5) you can choose a scene

number, with rotary swich (3) you select a chase (bank). Press short time on pushbutton

Save/Delete (6). The green LED is flashing, the scene is now stored.

Select / Edit / Delete a scene: press button (4) until yellow User/Bank LED is on. With

rotary switch (5) you can choose a scene number, with rotary switch (3) you select a chase

(bank). The actual settings are valid now for spots 1-4. You can make any change of

settings (see above) as you want. Save your changes according to description above. To

delete a scene press button (4) Save/Delete for longer than 2sec. All LEDs flash and the

scene is deleted.

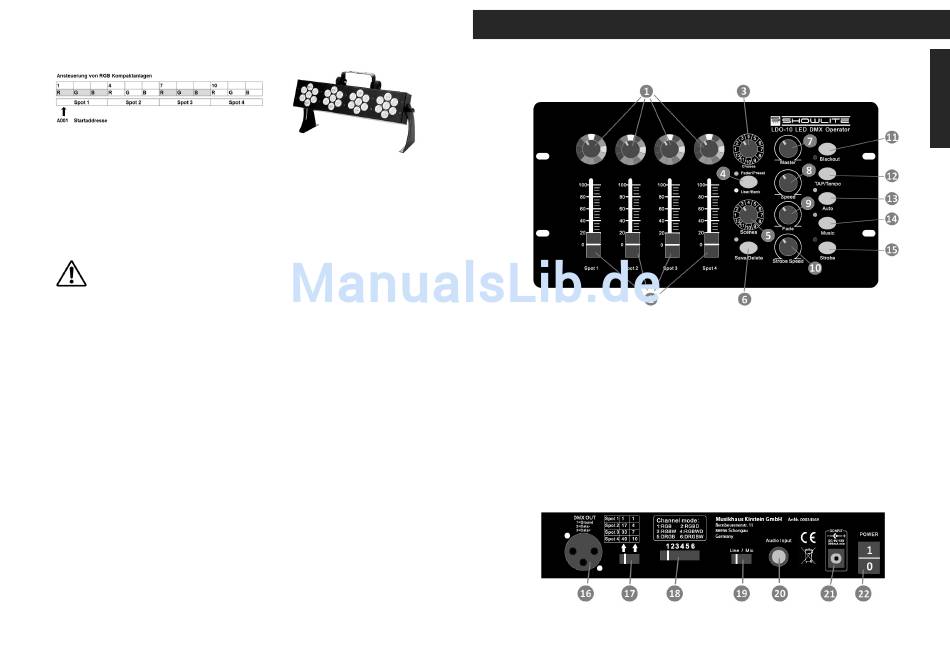

1. Frontseitige Bedienelemente

1. Farbwahlschalter Spot 1-4 12-stufig

2. Fader Helligkeit Spot 1-4 / 0...100%

3. Anwahl Chaser/Bank 12-stufig

4. Wahltaster Preset/User Bank

5. Wahlschalter für Szenen 12-stufig

6. Funktionstaste Save/Delete

7. Master Helligkeit

8. Regler Geschwindigkeit Lauflicht

2. Rückseitige Anschlüsse
