1. Area of Use
The drain pipe filter is used to filter rain water from roof areas for domestic use, such as
for watering the garden, flushing the toilet and washing machine use.
The roof area to which it can be connected is approximately 150 m², local precipitation
conditions should, however, be taken into account.

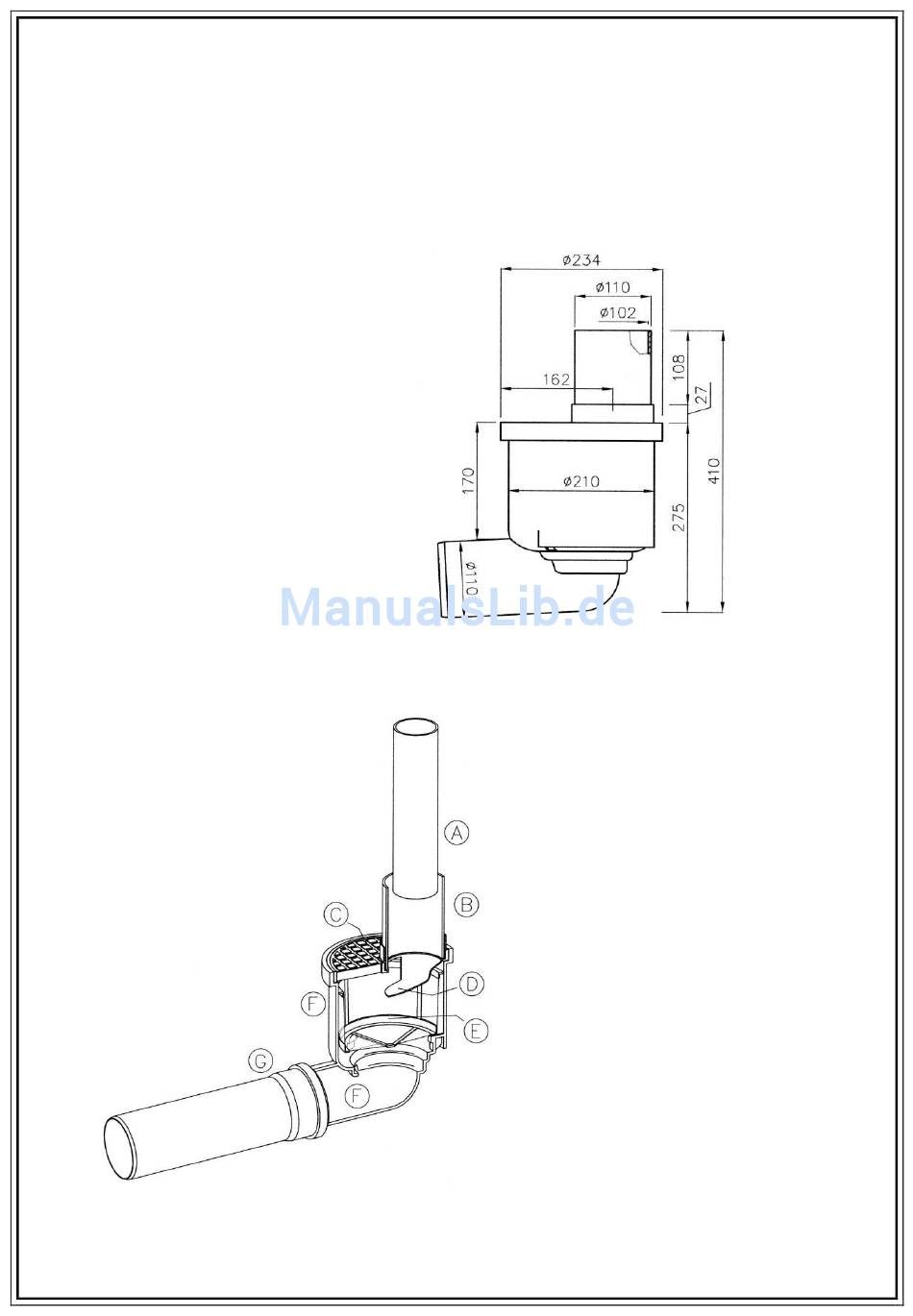

2. Outer Dimensions
3. Components
Regen-Ablauffilter
DORW2180
A Drain pipe (provided by
customer), maximum outer
diameter 102 mm
B Connection pipe made of DN100
plastic, 150 mm long, can be slid
upwards onto the drain pipe
C Cover, removable
D Flexible deflector plate on the
cover
E Filter cage, mesh size 0.9 mm,
removable
F Filter housing
G DN100 inlet pipe to the
rainwater tank (provided by
customer)
01.03.2013
5/8
