Tone Generator

•
Power on the CableMaster 600/650.
•
Use the left or right arrow buttons to select the tone generator icon
press the enter button.
•
The CableMaster 600/650 will automatically activate the tone generator upon
entering the tone generator menu.
•
Connect your cable to either the RJ45 jack or coax connector located on the top
of the CableMaster 600/650.
•
To switch between network and coax cables, press the coax cable/RJ45
soft key /
•

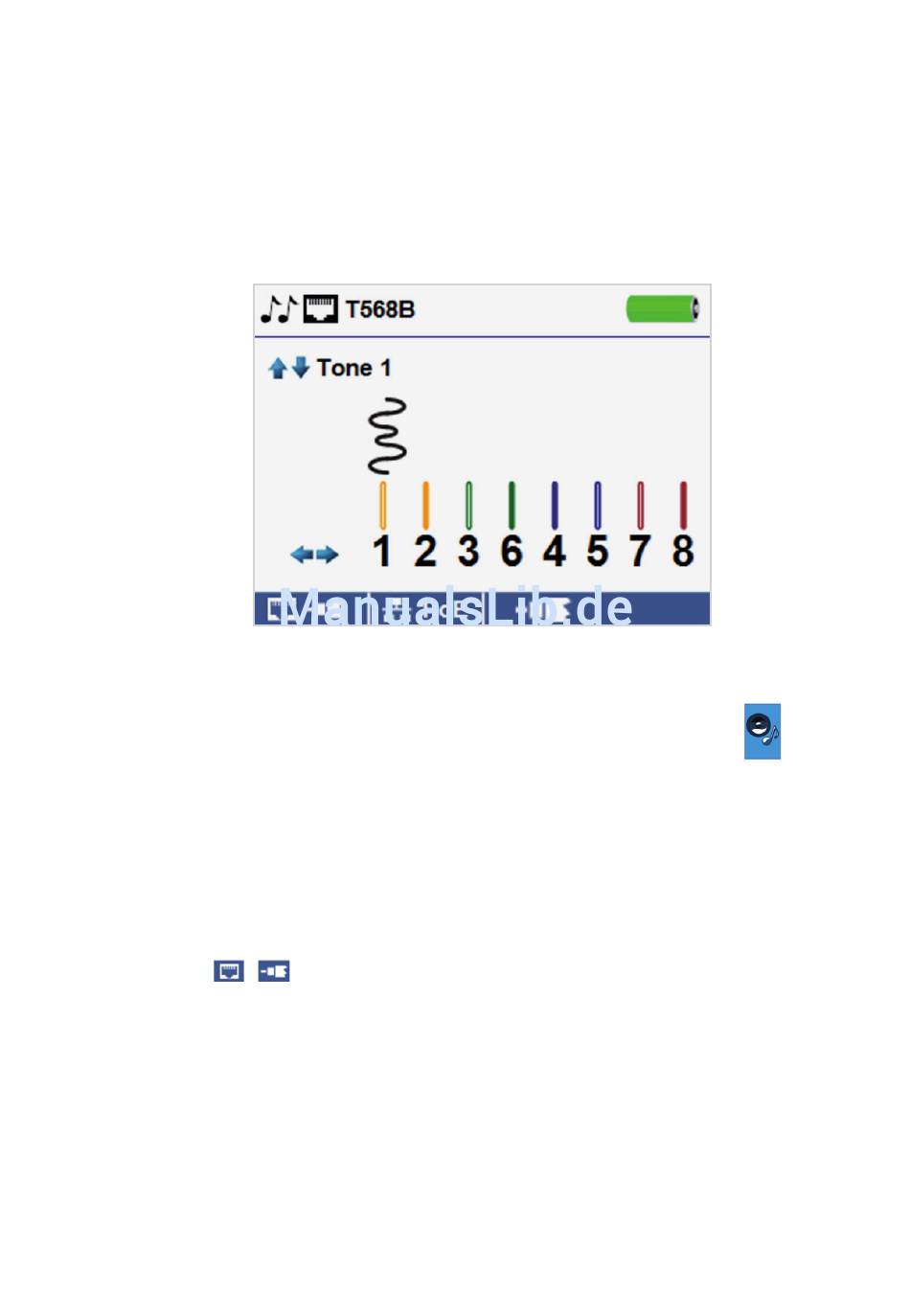

Press the up or down arrow buttons to select tone cadences 1 thru 4.
•
Press the left or right arrow buttons to select which pin or pair to place the tone.
•
Use a tone probe (P/N TP200 TrakAll) alongside the cable or at the end of the
cable to hear an audible tone.
