DV02

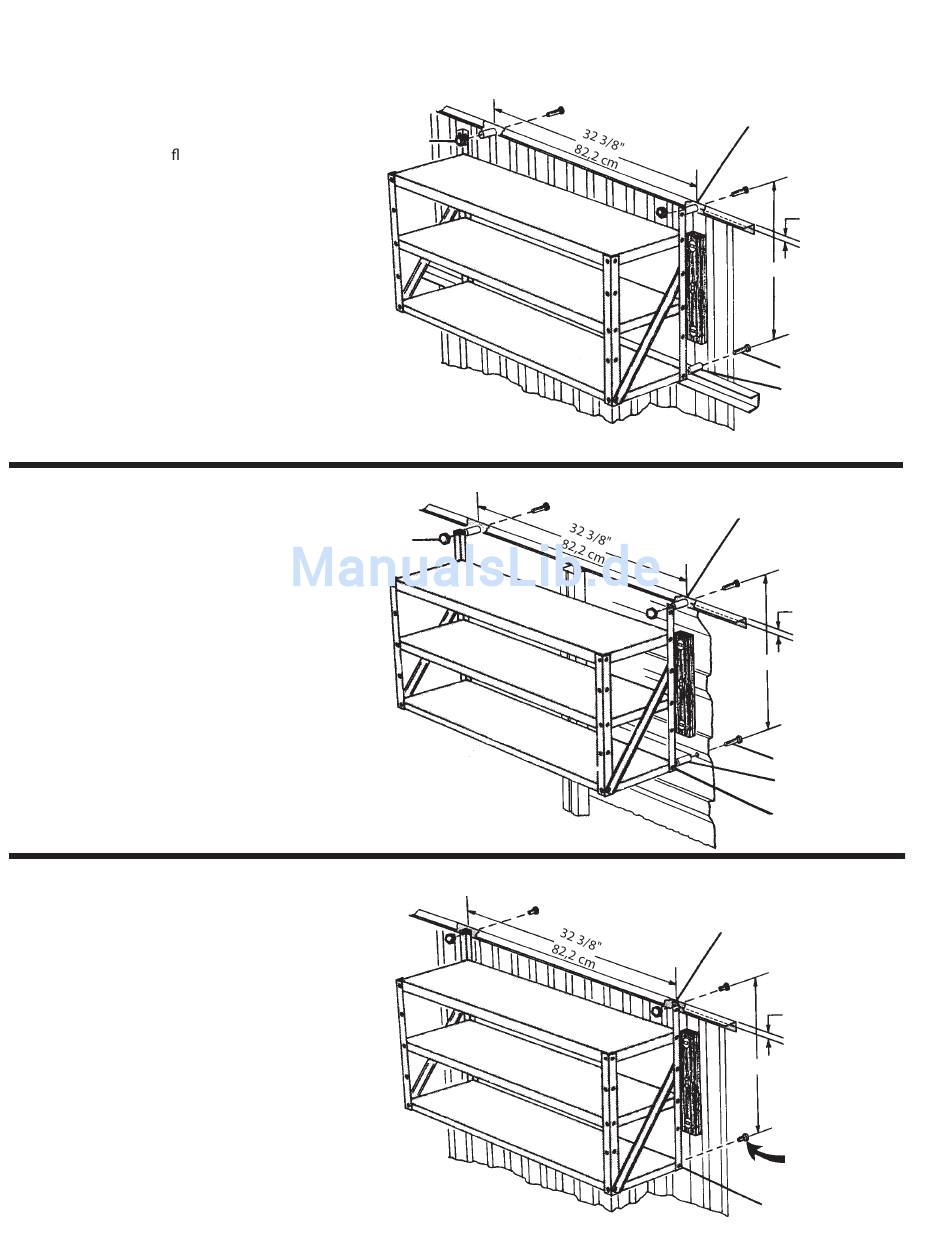

ASSEMBLY PROCEDURE WHEN MOUNTING TO VERTICAL SIDED BUILDINGS WITH 60" (152,4 cm) WALL HEIGHT
1
Locate shelf unit on desired wall. Drill two
1/4" (6 mm) dia. holes through upper wall
angle and wall panel 32 3/8" (82,2 cm) apart,
3/8" (10 mm) below top ange of angle.
2
Using a square or level measure down
29 1/2" (74,9 cm) from each hole. Check
bottom holes to make sure they are 32 3/8"
(82,2 cm) apart. Drill two 1/4" (6 mm) dia.
holes at these locations.
3
Temporarily remove the two bolts and nuts
from the back of the bottom shelf. Position
shelf aligning holes in rear posts with holes
drilled in panel and fasten with four #8-32x
1 1/2" (38 mm) bolts and nuts and either 3/4"
(19 mm) or 1" (25 mm) shims. Hardware for
mounting shelf unit is not supplied. Consult
your local hardware store for these parts.
ASSEMBLY PROCEDURE WHEN MOUNTING TO HORIZONTAL SIDED BUILDINGS OVER VERTICAL WALL STUDS
1
Follow directions for Steps 1, 2 and 3 above.
ASSEMBLY PROCEDURE WHEN MOUNTING TO VERTICAL SIDED BUILDINGS WITH
1
Follow directions for Steps 1 and 2 above.
2
Temporarily remove the two bolts and nuts
from the back of the bottom shelf. Position
shelf aligning holes in rear posts with holes
drilled in panel and fasten with four
#8-32x1/4" (6 mm) bolts provided, as shown.
* Shelf may be attached to horizontal sided buildings
if located between wall studs using this procedure.
Mounting Instructions
#8-32
Hex Nut
#8-32
Hex Nut
62" (157,5 cm), 67" (170,2 cm) or 71 1/4" (181,0 cm) WALL HEIGHT*
2
Drill 1/4" (6 mm) dia. holes
through wall panel and angle
3/8" (10 mm)
29 1/2" (74,9 cm)
#8-32x1 1/2"
(38 mm) Bolt
3/4" (19 mm) or
1" (25 mm) Shim
Drill 1/4" (6 mm) dia.
holes through wall panel
Drill 1/4" (6 mm) dia.
holes through siding
panel and angle
3/8" (10 mm)
29 1/2" (74,9 cm)
#8-32x1 1/2"
(38 mm) Bolt
3/4" (19 mm) or
1" (25 mm) Shim
Drill 1/4" (6 mm) dia. holes
through siding panel
Drill 1/4" (6 mm) dia.
holes through wall panel and angle
3/8" (10 mm)
29 1/2" (74,9 cm)
Temporarily
remove two bottom
bolts and nuts
Drill 1/4" (6 mm) dia.
holes through
wall panel
