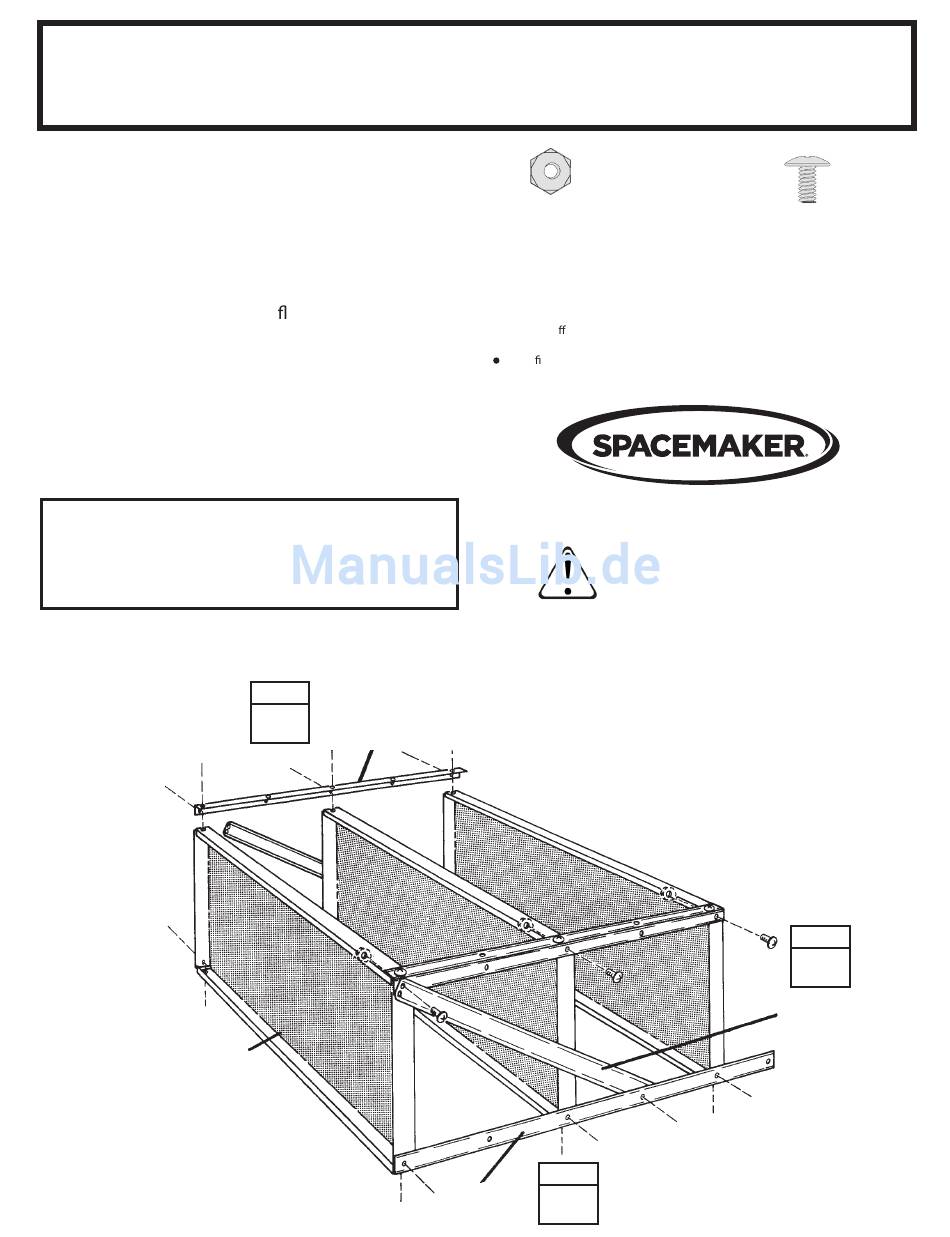

Owner's Manual & Assembly Instructios
DV01
Wall Shelf
Model No. SS900CL
1
Place two rear posts on a at surface parallel to
each other. Position shelves at desired locations
and fasten with bolts and nuts.
2
Place front posts opposite the rear posts and
secure to shelves using bolts and nuts.
3
Fasten braces to the inside of rear posts and
outside of front posts with bolts and nuts.
First remove and reinsert bolt and nut fastening
bottom shelf to side leg of front post. Fasten
opposite end of brace to rear post.
SHELF
7053
NOTE
STEP
2
FRONT POST
7056
65103
#8-32 Hex Nut
(26)
Keep this Owner's Manual for future reference.
Wash o inked part numbers on coated shelves with soap and water.
If you nd a part is missing, include the model no. of your shelf and contact:
www.mygardenhome.de
CAUTION: SOME PARTS HAVE SHARP EDGES.
CARE MUST BE TAKEN WHEN HANDLING THE
VARIOUS PIECES TO AVOID A MISHAP. WEAR
GLOVES WHEN HANDLING METAL PARTS.
STEP
REAR POST
1
7057
66013
#8-32x1/4" (6 mm) Bolt
(26)
STEP
3
BRACE
3903
725500318
