• Do not use the awning if it is damaged or if it is not properly fastened. Contact an
authorised technician for repairs.
• Under normal circumstances it is not necessary to lubricated the moving parts of the
awning.
If lubrication is necessary, petroleum based lubricants may not be used.
• When lubricating, use a spray nozzle with tube. Thoroughly lubricate the area between
the end of the supporting bar and the bracket. Avoid spraying the awning canopy.
ADJUSTING THE MOTOR CONTROLS
• The motor interval is set at the factory, in which case the awning requires no additional
adjustment. However, the user can adjust the interval with the assistance of a qualified
technician.
• In the following cases the motor requires minor adjustment:
– The awning does not extend properly.
– The awning canopy is loose.
– The motor does not stop automatically with the awning is fully retracted.
• Fit the hexagonal tip on the adjustment tool P1 in the adjustment knob P3 for the upper limit.
• Turn anticlockwise to bring the canopy closer to the roller and anticlockwise to
increase the distance from the supporting bar.
• Fit the hexagonal tip on the adjustment tool P1 in the adjustment knob P2 for the lower limit.
• Turn clockwise to extend the canopy further and anticlockwise to extend it less.
• Wait 30 minutes before restarting if the motor does not function after the adjustment.
• The motor shall not be overloaded or used to frequently – this will effect the motors
service life.
• The motor not come into contact with water or other liquid.
WARNING! Make sure that the awning's canopy extends and retracts from the upper
edge of the roller and not from the lower edge.
10
P2
P4
P3
P1

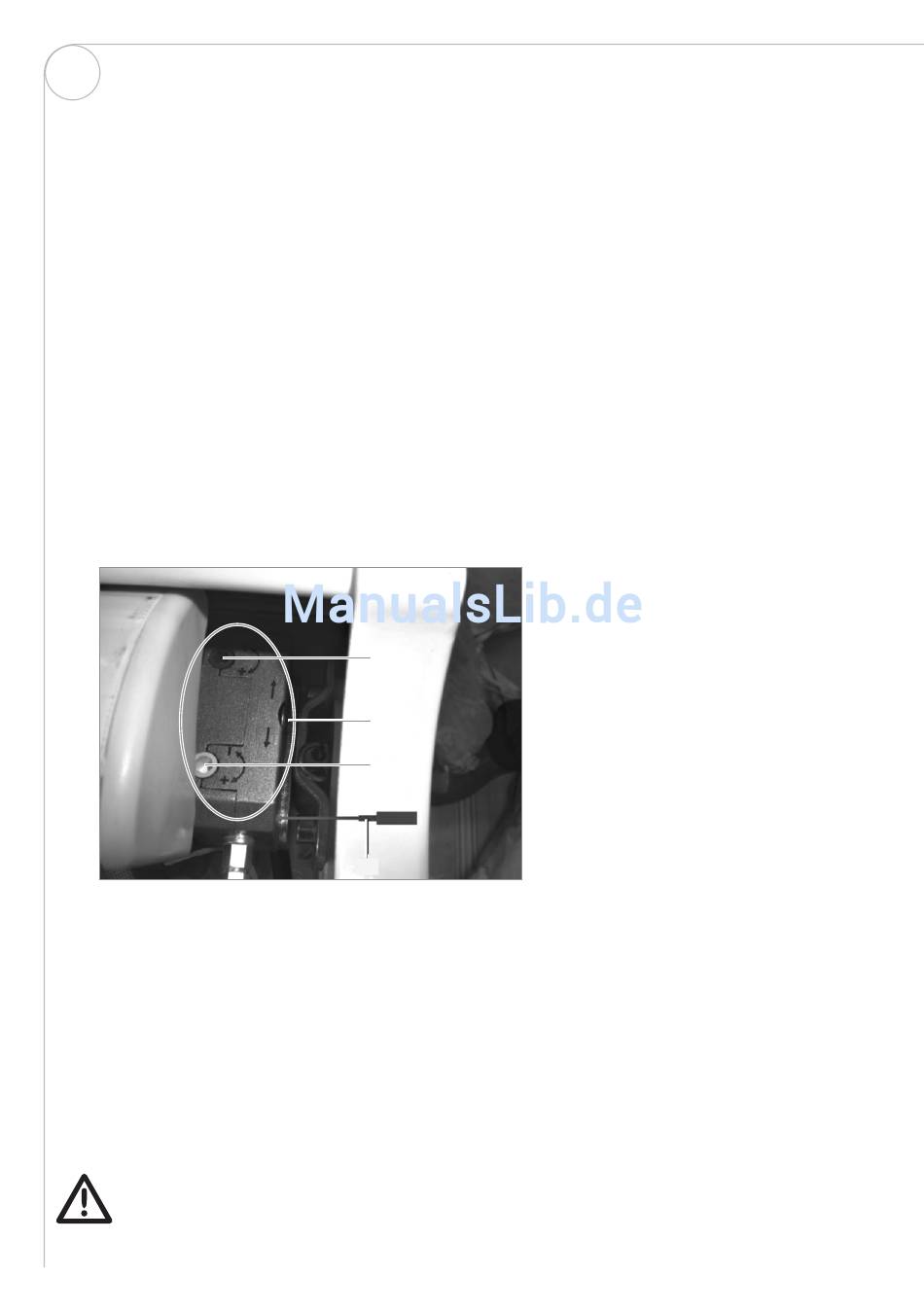

P1 Adjustment tool for motor controls
P2 Adjustment knob for lower limit
P3 Adjustment knob for upper limit
P4 Indicator for adjustment and alignment
