Unfolding Steps - e-TWOW BOOSTER PLUS Handbuch

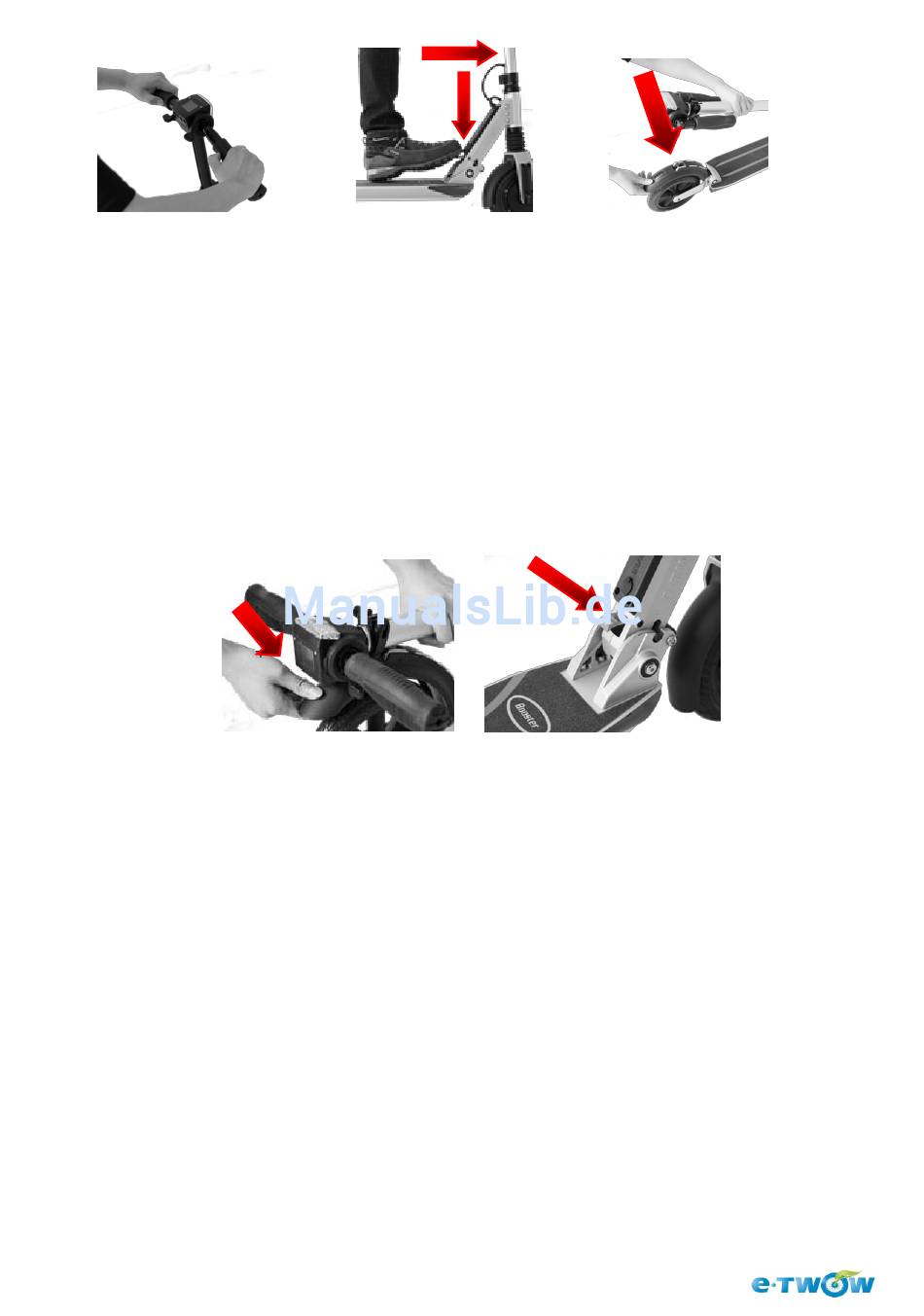

(e) (f) (g)

Unfolding steps

1. Press the rear brake fender in the direction of the arrow, as shown in figure (h), until the
folding hook is released from the opening located on the rear brake. Then, lift the handlebar until
it reaches the normal position and the locking bolt comes into place, like in figure (i).
2. Raise the two handles of the handlebar until they automatically return to the normal position,
figure A.
3. Push the lock lever like is shown in figure (a) and (b) and lift the handlebars to the desired
height. Now press the button shown in figure (c) and secure it in one of the two holes, as desired.
Then close the lock lever and make sure that you always keep the lever secured and tightly
closed.
(h) (i)
7
