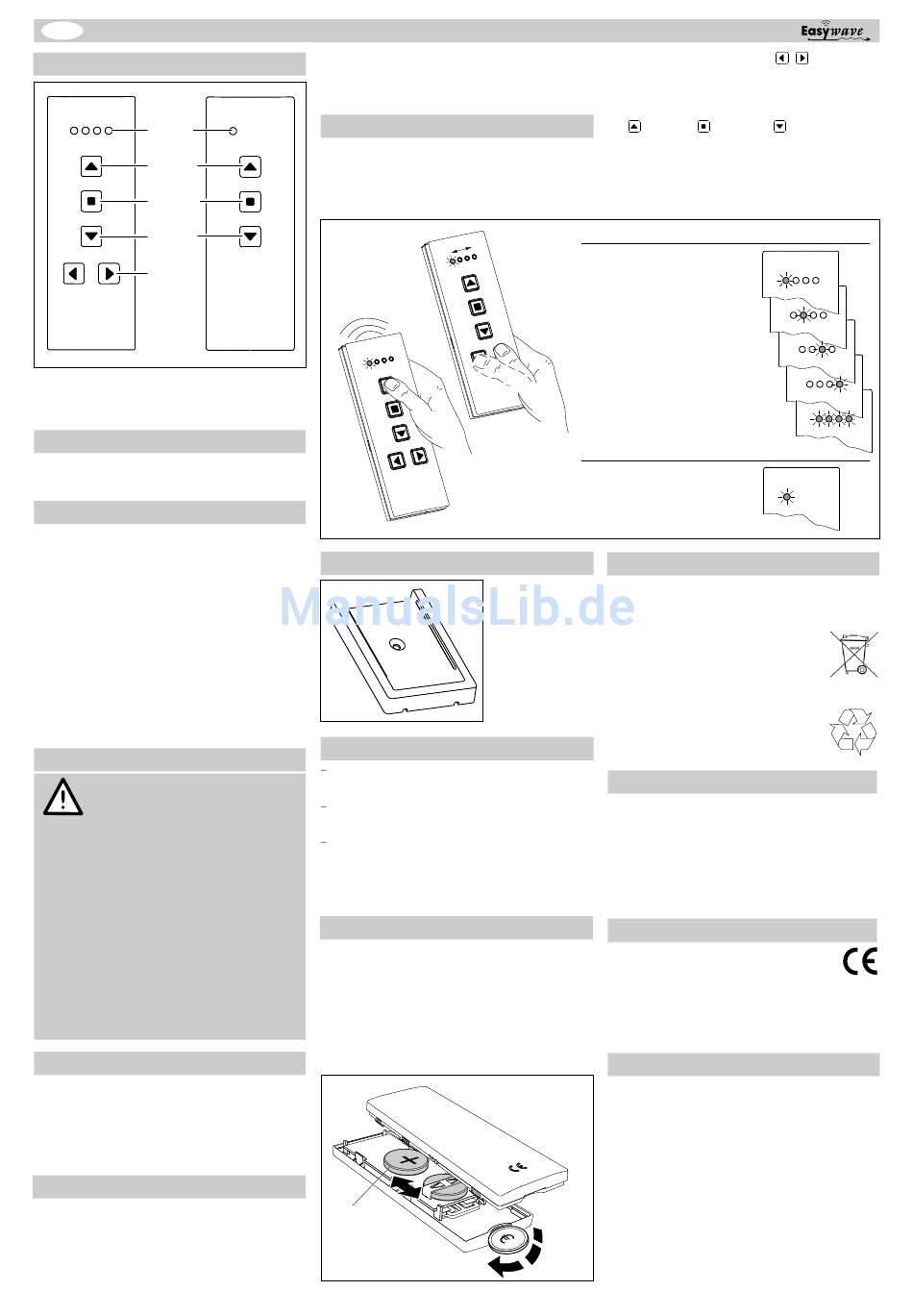

Hand Transmitter RT32
GB
D
D
Models
LED
UP(A)
STOP(C)
DOWN(B)
Level
selection
RT32-5004-01
4x
UP/STOP/DOWN
1x
-button operation
-button operation
3
3
Scope of Delivery
Transmitter RT32 incl. battery, mounting plate,
operating instruction
Technical Data
Frequency:
868.30 MHz
Modulation:
FSK
Coding:
Easywave A/B/C
Power supply:
1x 3V battery, CR 2032
Indicator:
LED
Degree of
protection:
IP 54
Operating
temperature:
-20°C to +60°C
Range:
free-field: approx. 150 m
buildings: approx. 30 m
Dimensions:
38 x 109 x 14 mm
Weight:
37 g (incl. battery)
Safety Advice
Before using the transmitter,
c a r e f u l l y r e a d t h r o u g h t h e
operating instruction!
Note also the operating instructions of the
radio receiver.
Never operate doors or other items of
equipment without keeping them under
watch as you do so. Persons could be placed
in danger!
Keep the Mini Transmitter away from
children!
Check at regular intervals that the device is
ready to transmit!
Have faulty transmitters checked by the
manufacturer!
Do not make any unauthorized alterations or
modifications to the Mini Transmitter!
Intended Use
The transmitter may only be used to operate
Easywave radio controls.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use!
Function
The hand transmitters RT32 are radio
transmitters with 3-button operation. By pushing
a button the Easywave code A/B/C is transmitted
and the associated Easywave receivers are
switched in their selected operating mode. The
transmitter version RT32-5004-01 supports up
to four levels. The group function allows the
simultaneous controlling of all radio receivers.
Using the Transmitter
Transfer the tramsmission code of the button A
to the radio receivers of the devices to be
operated. For this read the operating
instructions supplied with the radio receivers.
fig. 1
RT32-5001-01
UP/STOP/DOWN
fig. 2
Install Accessories
Troubleshooting
If the LED's light up too faintly:
change the battery.
If the LED's don't light up at all:
check that the battery is correctly poled.
If the radio receiver still doesn't react:
go closer to the radio control or teach in the
transmission code(s) to the radio receiver
again.
Replacing the Battery
1. Insert a small coin into the slot at the
bottom of the transmitter. Turn the coin
diagonally and carefully press the two
halves of the housing apart.
2. Replace the battery. Use only batteries of
type CR2032.
Make sure the polarity is correct!
CR2032
Select with the level buttons
level, the LED(s) glows approx. 2 Seconds (see
fig. 1).
For sending you press one of the buttons
UP
according level lights up (see fig. 2).
Pressing the level button for the first time,
selects the last need level.
Level
RT32-5004E-01
2 s
1
2
3
4
1-4 (group
function)
RT32-5001E-01
1
Disposal
Fasten the
Waste electrical products and batteries
should not be disposed of with household
mounting plate
waste!
(by sticking PAD
Dispose of the waste product via a
or screw) at the
collection point for electronic scrap
desired mounting
or via your specialist dealer.
place.
Dispose of used batteries in a re-
cycling bin for batteries or via the
specialist trade.
Put the packaging material into a
recycling bin for cardboard and
paper.
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by repair or
replacement any product defects arising from
material or production faults.
Any unauthorized tampering with, or
modifications to, the product shall render this
warranty null and void.
Conformity
This product conforms to the basic
requirements of the R&TTE
Directive 1999/5/EC.
For use in: EU/CH/FL/IS/N
The Declaration of Conformity can be found
on the Internet at: www.eldat.de.
Customer Service
If, despite correct handling, faults or mal-
functions occur or if the product was damaged,
please contact the company at the address
below:
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-0
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-Mail:
the desired
or STOP
or DOWN
, the LED of the
Transmission Code
A1/B1/C1
A2/B2/C2
A3/B3/C3
A4/B4/C4
all codings
A/B/C
info@eldat.de
88211 0510 D/GB
