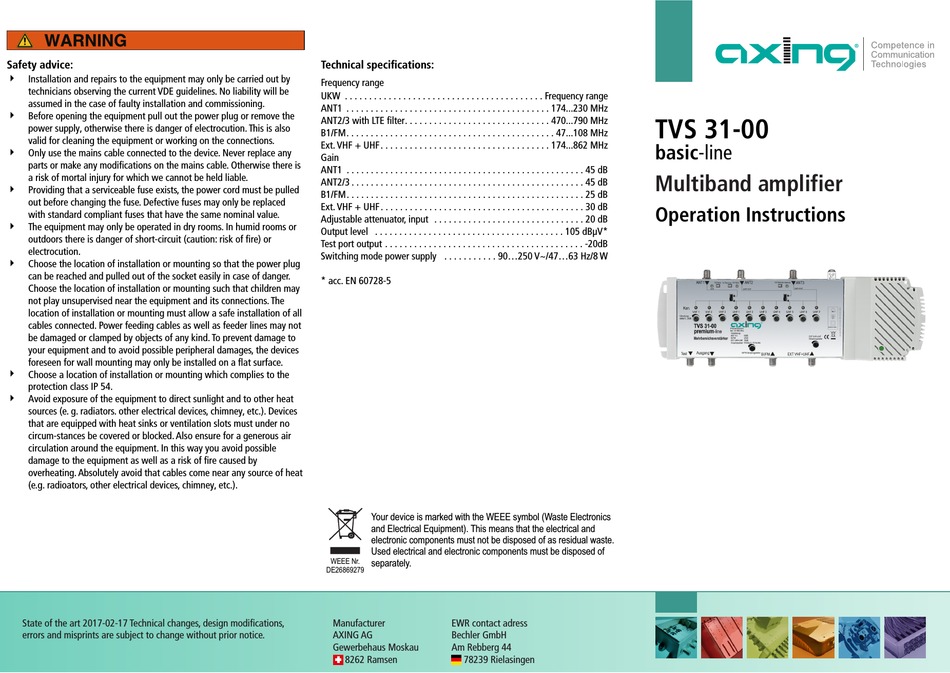

axing TVS 31-00 Betriebsanleitung Seite 3

Safety advice:
4
Installation and repairs to the equipment may only be carried out by
technicians observing the current VDE guidelines. No liability will be
assumed in the case of faulty installation and commissioning.
4
Before opening the equipment pull out the power plug or remove the
power supply, otherwise there is danger of electrocution. This is also
valid for cleaning the equipment or working on the connections.
4
Only use the mains cable connected to the device. Never replace any
parts or make any modifications on the mains cable. Otherwise there is
a risk of mortal injury for which we cannot be held liable.
4
Providing that a serviceable fuse exists, the power cord must be pulled
out before changing the fuse. Defective fuses may only be replaced
with standard compliant fuses that have the same nominal value.
4
The equipment may only be operated in dry rooms. In humid rooms or
outdoors there is danger of short-circuit (caution: risk of fire) or
electrocution.
4
Choose the location of installation or mounting so that the power plug
can be reached and pulled out of the socket easily in case of danger.
Choose the location of installation or mounting such that children may
not play unsupervised near the equipment and its connections. The
location of installation or mounting must allow a safe installation of all
cables connected. Power feeding cables as well as feeder lines may not
be damaged or clamped by objects of any kind. To prevent damage to
your equipment and to avoid possible peripheral damages, the devices
foreseen for wall mounting may only be installed on a flat surface.
4
Choose a location of installation or mounting which complies to the
protection class IP 54.
4
Avoid exposure of the equipment to direct sunlight and to other heat
sources (e. g. radiators. other electrical devices, chimney, etc.). Devices
that are equipped with heat sinks or ventilation slots must under no
circum-stances be covered or blocked. Also ensure for a generous air
circulation around the equipment. In this way you avoid possible
damage to the equipment as well as a risk of fire caused by
overheating. Absolutely avoid that cables come near any source of heat
(e.g. radioators, other electrical devices, chimney, etc.).
State of the art 201 7-02-17 Technical changes, design modifications,
errors and misprints are subject to change without prior notice.
Technical specifications:
Frequency range
UKW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frequency range
ANT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174...230 MHz
ANT2/3 with LTE filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470...790 MHz
B1/FM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47...108 MHz
Ext. VHF + UHF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174...862 MHz
Gain
ANT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 dB
ANT2/3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 dB
B1/FM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 dB
Ext. VHF + UHF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB
Adjustable attenuator, input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 dB
Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 dBµV*
Test port output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20dB
Switching mode power supply . . . . . . . . . . . 90...250 V~/47...63 Hz/8 W
* acc. EN 60728-5
Your device is marked with the WEEE symbol (Waste Electronics
and Electrical Equipment). This means that the electrical and
electronic components must not be disposed of as residual waste.
Used electrical and electronic components must be disposed of
WEEE Nr.
separately.
DE26869279
Manufacturer EWR contact adress
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
8262 Ramsen 78239 Rielasingen
TVS 31-00
basic-line
Multiband amplifier
Operation Instructions
