24 The controller
A

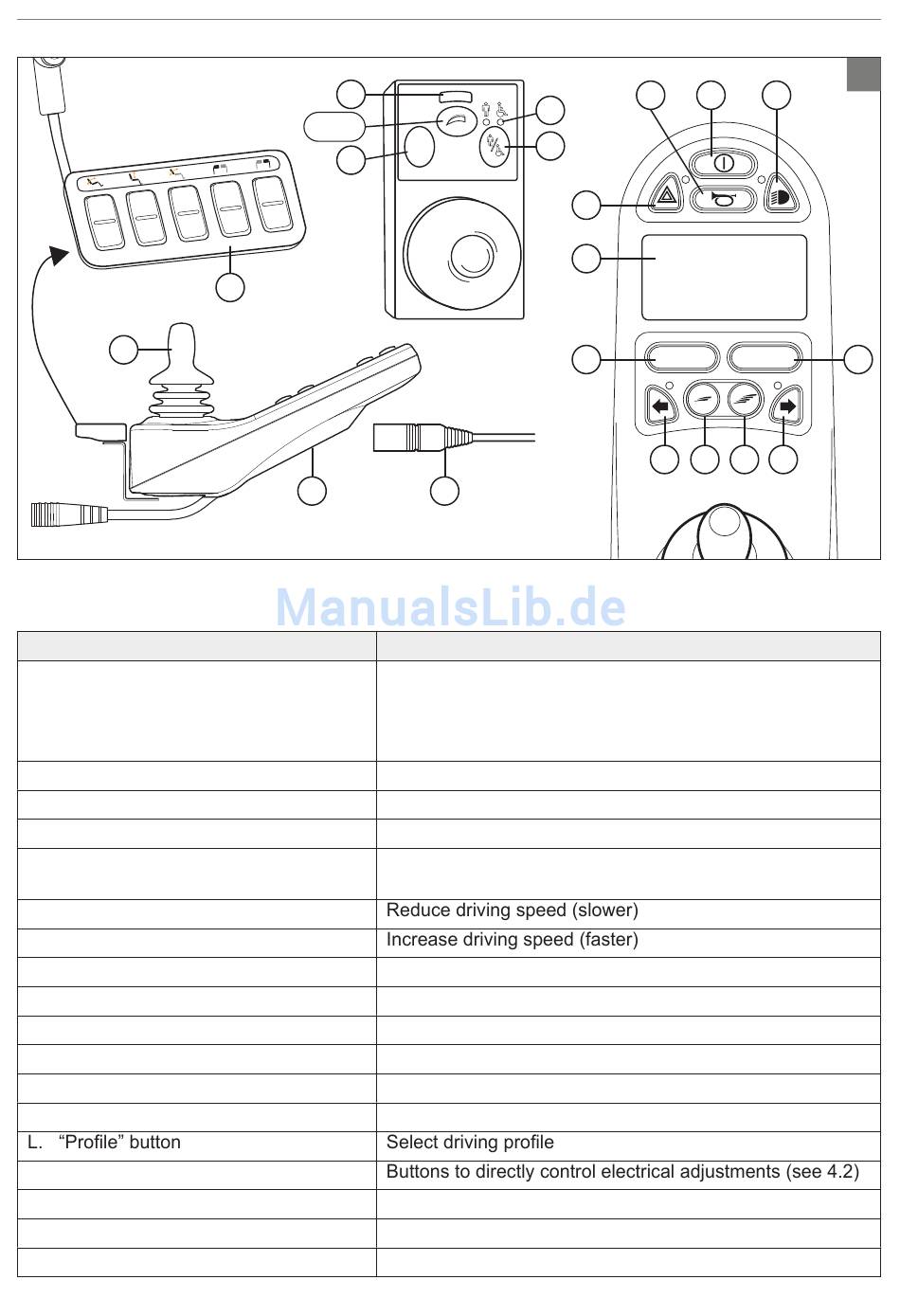

2.4 Main components

Part
A. Joystick
B. On/off switch
C. Horn
D. LCD colour display screen
E. "Mode" button
F1: Speed regulator
F2: Speed regulator
G. Charge connector
H. Charge plug for the battery charger
I. Lights button
J. Hazard lights
K1: Direction indicator left
K2: Direction indicator right
M. Direct access
N. Maximum speed
O. User/attendant switch
P. User/attendant indicator
N
F1+F2
E
M
G
Function
In the 'drive' mode: driving and steering
In the 'adjustment options' mode::
•
•
Switching the controller on or off
Warning signal with sound
Display and feedback
Changing between the 'driving' and the 'adjustment
options' mode
Input for the battery charger
Connector for the battery charger
Switching the lights on or off
Warning signal with lights
Switches the left direction indicator on or off
Switches the right direction indicator on or off
Displays the maximum speed limit
Switching between user and attendant controller
Displays the active controller
P
MODE O
H
Left/right to select the adjustment options
Front/back to select the adjustment options
C B
J
D
E MODE PROFILE
K1 F1 F2 K2
R-net
4
I
L
