Clearaudio smart phono V2 Bedienungsanleitung Seite 3

User manual / Bedienungsanleitung
- Setup –
Connect the ground of the turntable/tonearm to the
To select either the MC (moving coil) or MM (moving magnet) mode of the
phono headphone V2
(one each for left and right channels):
Position MM = button not pressed, Position MC = button pressed in.
MM Adjustment

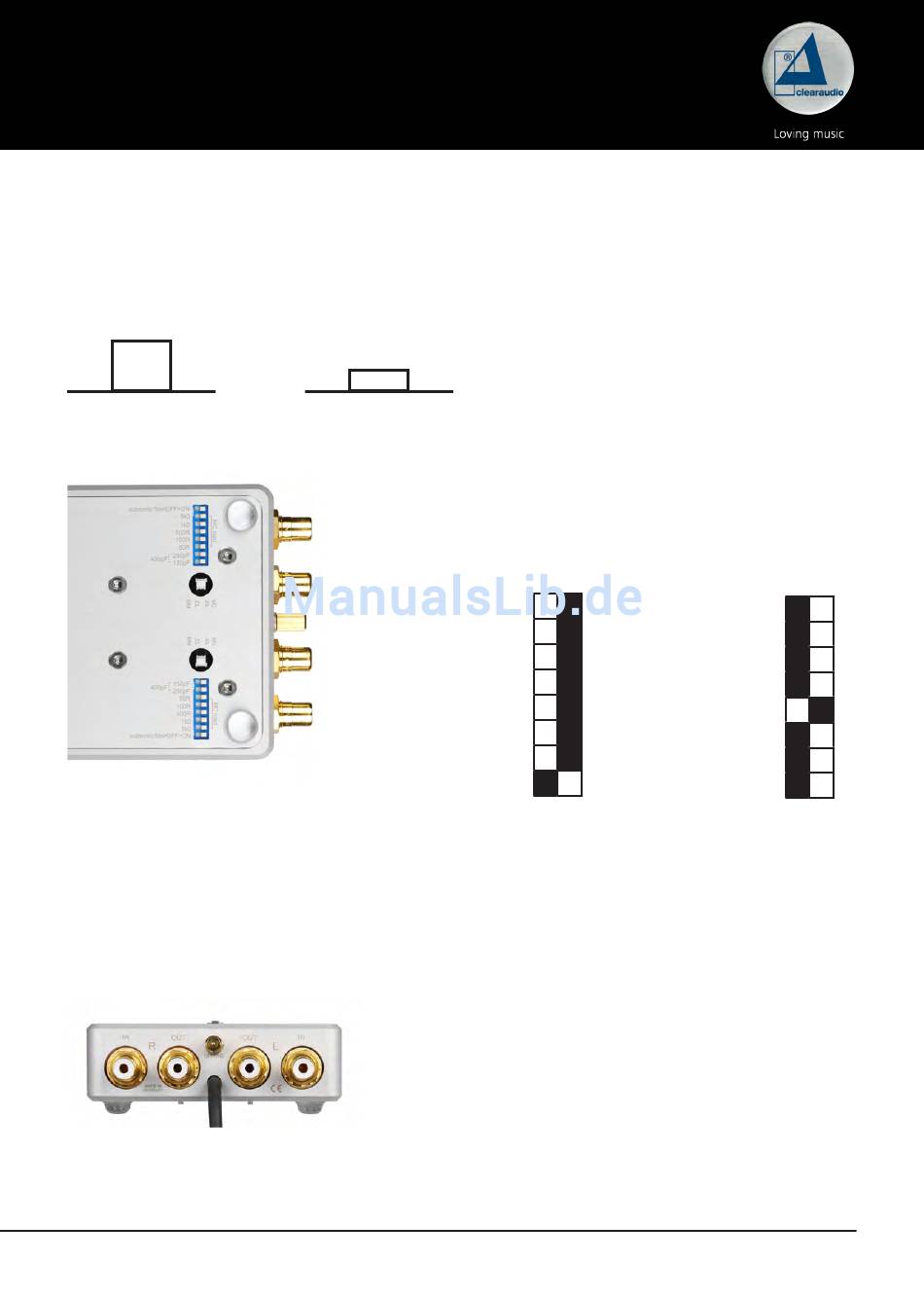

Pic. 1: Adjustment MM / MC
Pic. 2.1: View from the bottom side
Now you can proceed with connecting the
MC/MM cartridge and preamplifier. The input impedance (input load resistor / capacitance) can be
adjusted according to the cartridge requirements, using the jumpers on the bottom of the unit.
Finally, connect the power supply to the mains. For disconnecting, please follow these instructions
in reverse order.
Pic. 3: Rear view
Made in Germany
according to your cartridge type, simply use the switches on the bottom side
MC Adjustment
Subsonic Off>ON
Pic. 2.2: Basic Adjustment
smart phono V2 / smart phono headphone V2
smart phono V2 / smart phono headphone V2.
150pf
250 pf
50R
100R
500R
1K0
5K0
Subsonic Off>ON
Pic. 2.3: Adjustment 500 Ohm
smart phono V2 / smart
150pf
250 pf
50R
100R
500R
1K0
5K0
to your
3
