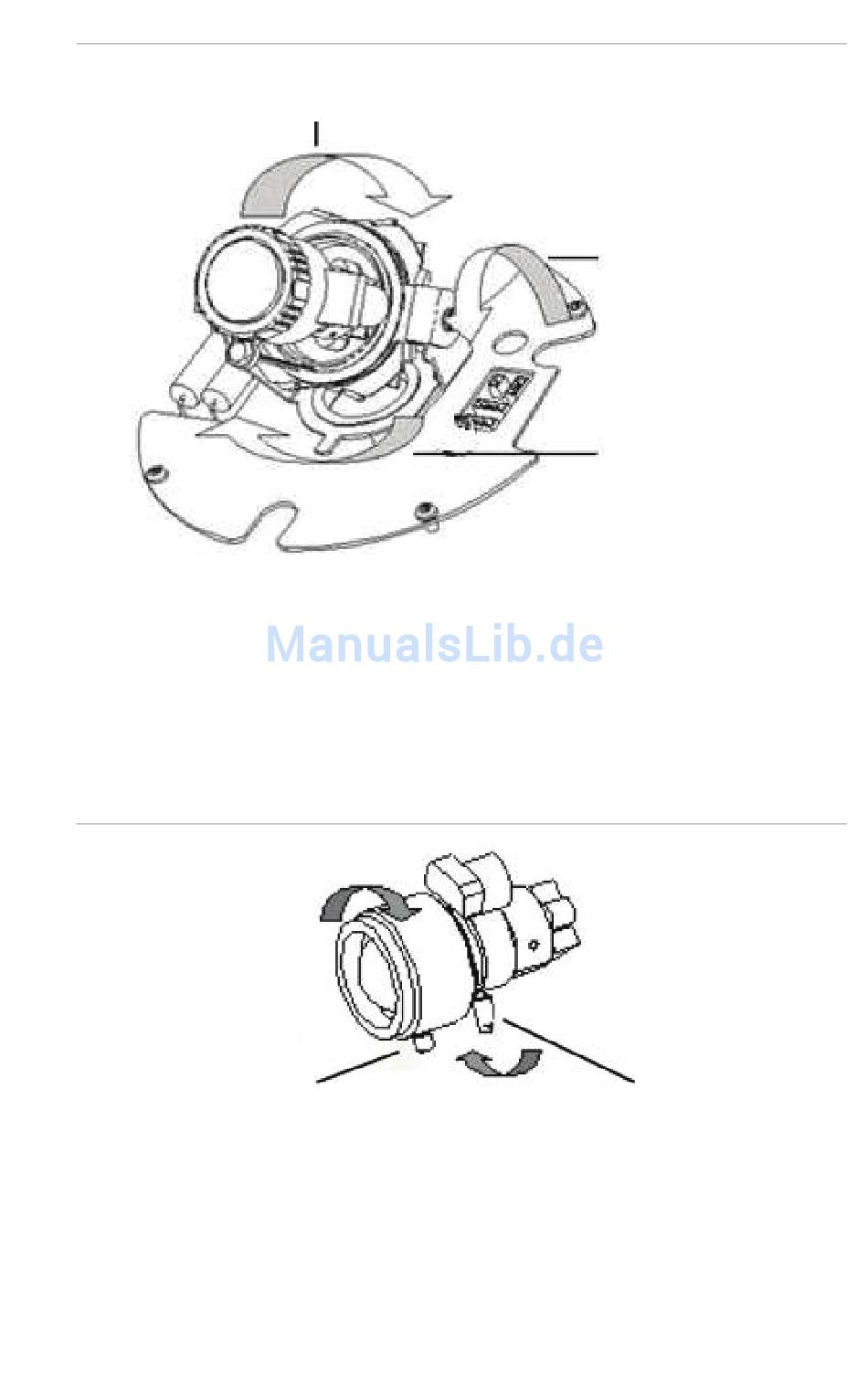

Figure 3: Camera adjustment
Platform horizontal adjustment

Zoom and focus adjustment

See Figure 4 below for the location of the zoom and focus ring
thumbscrews.
Figure 4: Zoom and focus adjustment
Zoom ring thumbscrew for
VA2 and focus ring for
VA9 lens
UVD-IP-EVRDNR(-P) Camera User Manual
Platform vertical
adjustment
Rotor horizontal
adjustment
Focus ring thumbscrew for
VA2 and zooming ring for
VA9 lens
