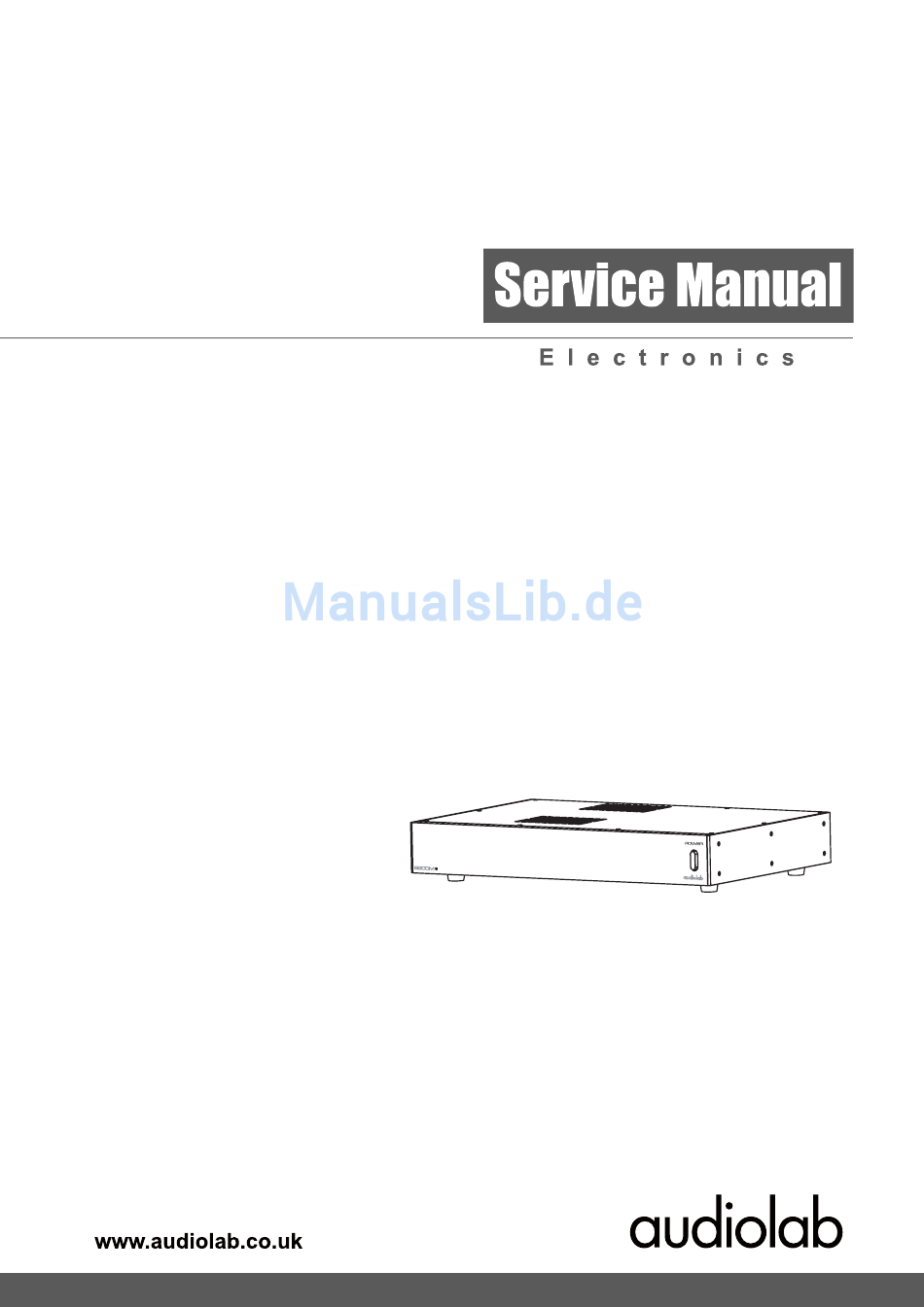

- Seite 1 8200M...
-
Seite 2: Version History
VERSION HISTORY Date Update Content 2011.06.13 First Version 8200M... -
Seite 3: Inhaltsverzeichnis
CONTENT Introduction Specification Assembly Sketch Schematic Diagram Wir ng Di gram Silk screen of Bottom Maintenance Alignment Procedure Assembly Parts List 11-12 Electronic Parts List 13-17 8200M... -
Seite 4: Introduction
This manual has been prepared with the greatest care, it is intended for information only and no liability shall be accepted for errors or changes to specification. For further service information, parts lists and updates, please contact our web-site at www.international audio group.com . 2011 International Audio Group Limited. All rights reserved. 8200M... -
Seite 5: Specification
Less than 0.05% Polarity (Phase) Non-Inverting Muting Muting controlled automatically Operating Temperature Range 10-35 °C Power Requirements(Depending on 50-60Hz 100V, 110-120V, and 220-230V models available Region) Maximum Power Consumption: 300 VA Dimensions (W×H×D) 444×78×326mm Weight Net: 8.4 kg Shipping: 9.8 kg 8200M... -
Seite 6: Assembly Sketch
ASSEMBLY SKETCH 8200M... -
Seite 7: Schematic Diagram
SCHEMATIC DIAGRAM 8200M-Mainboard-P1/3 8200M... - Seite 8 SCHEMATIC DIAGRAM 8200M-Mainboard-P2/3 8200M...
- Seite 9 SCHEMATIC DIAGRAM 8200M-Mainboard-P3/3 8200M...
-
Seite 10: Wiring Diagram
WIRING DIAGRAM 8200M-Wiring Diagram-P1/1 8200M... -
Seite 11: Silk Screen Of Top Bottom
SILK SCREEN OF BOTTOM 8200M-MainBoard-Top Silkscreeen-P1/1 8200M... - Seite 12 SILK SCREEN OF BOTTOM 8200M-MainBoard-Bottom Silkscreeen-P1/1 8200M...
-
Seite 13: Maintenance Alignment Procedure
MAINTENANCE ALIGNMENT PROCEDURE 8200M -Bias Procedure And Ageing test step-P1/1 Audiolab 8200M Bias Procedure This procedure must only be carried out after the unit has passed a full functional test . 1.Connect the unit to be biased to mains and switch on. The mains voltage should be set to 230VAC ±... -
Seite 14: Assembly Parts List
ASSEMBLY PARTS LIST 8200M-Assembly Bom-P1/2 PART NAME DESCRIPTION 300-1031410001R Front Panel finish and anodized 215-1027410001R Button Cap painted 215-1027410002R Power Button painted 215-1027410003R Mains Switch Bracket painted 215-1027410004R M3 NI 215-1027410005R 20*10*10mm，EVA 215-1027410006R Chassis painted and silkscreen 215-1027410007R Screw M3*10... - Seite 15 ASSEMBLY PARTS LIST 8200M-Assembly Bom-P2/2 Remark:Colour Difference Table PART NAME DESCRIPTION 300-1031410001R screened, light grey(silver anodized) Front Panel 300-1031410002R screened, light grey(black anodized) 215-1027410001R silver painted,ABS757# Button Cap 215-1027420001R black painted,ABS757# 215-1027410000R silver painted,ABS757# Power Button 215-1027420000R black painted,ABS757# 309-1031410000R...
-
Seite 16: Electronic Parts List
ELECTRONIC PARTS LIST 8200M-Electronic Bom-P1/5 8200M-Electronic Bom-P1/5 PART NAME DISCRIPTION LOCATION 046-9400000400R 909 Terminal red/black 062-1220000200R Mains Cable 2meter American SWITCH MAINS２P 041-1376000000QR Mains Switch SDDSA 3289A 071-1100000000R Tie Wrap 100MM YJ-100 MAINS INLET 2 POLE 2 044-1700000000QR Mains Inlet... - Seite 17 ELECTRONIC PARTS LIST 8200M-Electronic Bom-P2/5 PART NAME DISCRIPTION LOCATION R125.159.126.160. 001-5601205010QR Resistor 560R 1/4W 1% 001-3301205010QR Resistor 330R 1/4W 1% R141 001-2203205010QR Resistor 22K 1/4W 1% R137.138.152.153 001-1000205010QR Resistor 10R 1/4W 1% R135.136 001-1803205010QR Resistor 18K 1/4W 1% R108 001-1802205010QR...
- Seite 18 ELECTRONIC PARTS LIST 8200M-Electronic Bom-P3/5 PART NAME DISCRIPTION LOCATION 016-4710832201R 470pF 63V 2.5% C103 2U2 10% 50V MSK2 013-2250120505QR C101.102 WIMA 080-0315000010QR Inductor 1.5UH L201 DIODE BZV86-2V0 067-3300086000QR ZENER DIODE D112.113 STABLSTOR D101-102.106- 109.114- 067-1104148000R DIODE IN4148 119.201.203.205- 209.211 067-2204002000R...
- Seite 19 ELECTRONIC PARTS LIST 8200M-Electronic Bom-P4/5 PART NAME DISCRIPTION LOCATION 001-1002205014QR Resistor 1K 1/4W 1% R209 001-3303205010R Resistor 33K 1/4W F R201 324-0380250101QR Insulation 38*25MM Q121~Q124 071-2480000000QR Tie Wrap YJ-330 R134.208.222.22 001-4702205010QR Resistor 4K7 1/4W 1% 3.224 47P 10% 125V 836-4700012505QR...
- Seite 20 BC556B PNP TO-92 Q130.111.102- 123 018-1400556115-1R Transistor Fairchild 107.202.208 Q108~110.131.11 124 018-1400546115-1R Transistor BC546BRL1G TO-92 ON 2.203.205.207.12 9.201 single layer FR4 KB 20Z 053-103141A000R 8200M AMP ISS5 blue / OSP 277*245.5*1.6MM DIODE B80C5000A 126 034-1115003307-1R Rectifier BRIDGE 80V/5A DIOTEC 8200M...
