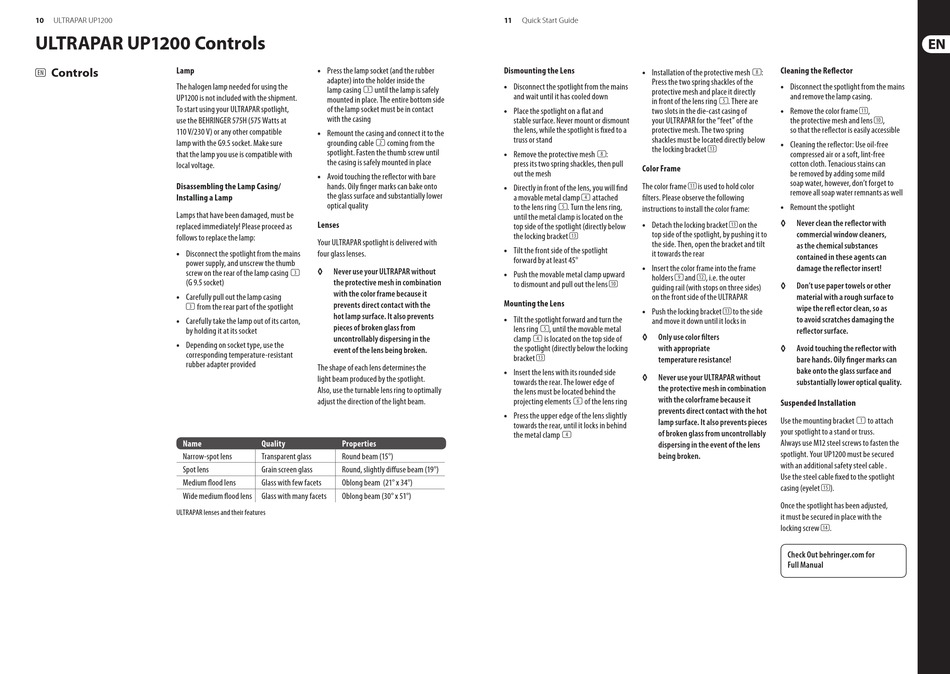

ULTRAPAR UP1200
ULTRAPAR UP1200 Controls
Controls
Lamp
(EN)
The halogen lamp needed for using the
UP1200 is not included with the shipment.
To start using your ULTRAPAR spotlight,
use the BEHRINGER 575H (575 Watts at
110 V/230 V) or any other compatible
lamp with the G9.5 socket. Make sure
that the lamp you use is compatible with
local voltage.
Disassembling the Lamp Casing/
Installing a Lamp
Lamps that have been damaged, must be
replaced immediately! Please proceed as
follows to replace the lamp:
• Disconnect the spotlight from the mains
power supply, and unscrew the thumb
screw on the rear of the lamp casing (3)
(G 9.5 socket)
• Carefully pull out the lamp casing
(3) from the rear part of the spotlight
• Carefully take the lamp out of its carton,
by holding it at its socket
• Depending on socket type, use the
corresponding temperature-resistant
rubber adapter provided
Name
Narrow-spot lens
Spot lens
Medium flood lens
Wide medium flood lens
ULTRAPAR lenses and their features
• Press the lamp socket (and the rubber
adapter) into the holder inside the
lamp casing (3) until the lamp is safely
mounted in place. The entire bottom side
of the lamp socket must be in contact
with the casing
• Remount the casing and connect it to the
grounding cable (2) coming from the
spotlight. Fasten the thumb screw until
the casing is safely mounted in place
• Avoid touching the reflector with bare
hands. Oily finger marks can bake onto
the glass surface and substantially lower
optical quality
Lenses
Your ULTRAPAR spotlight is delivered with
four glass lenses.
◊
Never use your ULTRAPAR without
the protective mesh in combination
with the color frame because it
prevents direct contact with the
hot lamp surface. It also prevents
pieces of broken glass from
uncontrollably dispersing in the
event of the lens being broken.
The shape of each lens determines the
light beam produced by the spotlight.
Also, use the turnable lens ring to optimally
adjust the direction of the light beam.
Quality Properties
Transparent glass Round beam (15°)
Grain screen glass Round, slightly diffuse beam (19°)
Glass with few facets Oblong beam (21° x 34°)
Glass with many facets Oblong beam (30° x 51°)
11
Quick Start Guide
Dismounting the Lens
• Installation of the protective mesh (8):
Press the two spring shackles of the
• Disconnect the spotlight from the mains
protective mesh and place it directly
and wait until it has cooled down
in front of the lens ring (5). There are
• Place the spotlight on a flat and
two slots in the die-cast casing of
stable surface. Never mount or dismount your ULTRAPAR for the "feet" of the
the lens, while the spotlight is fixed to a protective mesh. The two spring
truss or stand shackles must be located directly below
the locking bracket (13)
• Remove the protective mesh (8):
press its two spring shackles, then pull
Color Frame
out the mesh
The color frame (11) is used to hold color
• Directly in front of the lens, you will find
a movable metal clamp (4) attached filters. Please observe the following
to the lens ring (5). Turn the lens ring,
instructions to install the color frame:
until the metal clamp is located on the
• Detach the locking bracket (13) on the
top side of the spotlight (directly below
top side of the spotlight, by pushing it to
the locking bracket (13)
the side. Then, open the bracket and tilt
• Tilt the front side of the spotlight
it towards the rear
forward by at least 45°
• Insert the color frame into the frame
• Push the movable metal clamp upward
holders (9) and (12), i.e. the outer
to dismount and pull out the lens (10)
guiding rail (with stops on three sides)
on the front side of the ULTRAPAR
Mounting the Lens
• Push the locking bracket (13) to the side
• Tilt the spotlight forward and turn the
and move it down until it locks in
lens ring (5), until the movable metal
◊
Only use color filters
clamp (4) is located on the top side of
the spotlight (directly below the locking
with appropriate
bracket (13)
temperature resistance!
• Insert the lens with its rounded side
◊
Never use your ULTRAPAR without
towards the rear. The lower edge of
the protective mesh in combination
the lens must be located behind the
with the colorframe because it
projecting elements (6) of the lens ring
prevents direct contact with the hot
• Press the upper edge of the lens slightly
lamp surface. It also prevents pieces
towards the rear, until it locks in behind
of broken glass from uncontrollably
the metal clamp (4)
dispersing in the event of the lens
being broken.
Cleaning the Reflector
• Disconnect the spotlight from the mains
and remove the lamp casing.
• Remove the color frame (11),
the protective mesh and lens (10),
so that the reflector is easily accessible
• Cleaning the reflector: Use oil-free
compressed air or a soft, lint-free
cotton cloth. Tenacious stains can
be removed by adding some mild
soap water, however, don't forget to
remove all soap water remnants as well
• Remount the spotlight
◊
Never clean the reflector with
commercial window cleaners,
as the chemical substances
contained in these agents can
damage the reflector insert!
◊
Don't use paper towels or other
material with a rough surface to
wipe the refl ector clean, so as
to avoid scratches damaging the
reflector surface.
◊
Avoid touching the reflector with
bare hands. Oily finger marks can
bake onto the glass surface and
substantially lower optical quality.
Suspended Installation
Use the mounting bracket (1) to attach
your spotlight to a stand or truss.
Always use M12 steel screws to fasten the
spotlight. Your UP1200 must be secured
with an additional safety steel cable .
Use the steel cable fixed to the spotlight
casing (eyelet (15)).
Once the spotlight has been adjusted,
it must be secured in place with the
locking screw (14).
Check Out behringer.com for
Full Manual
