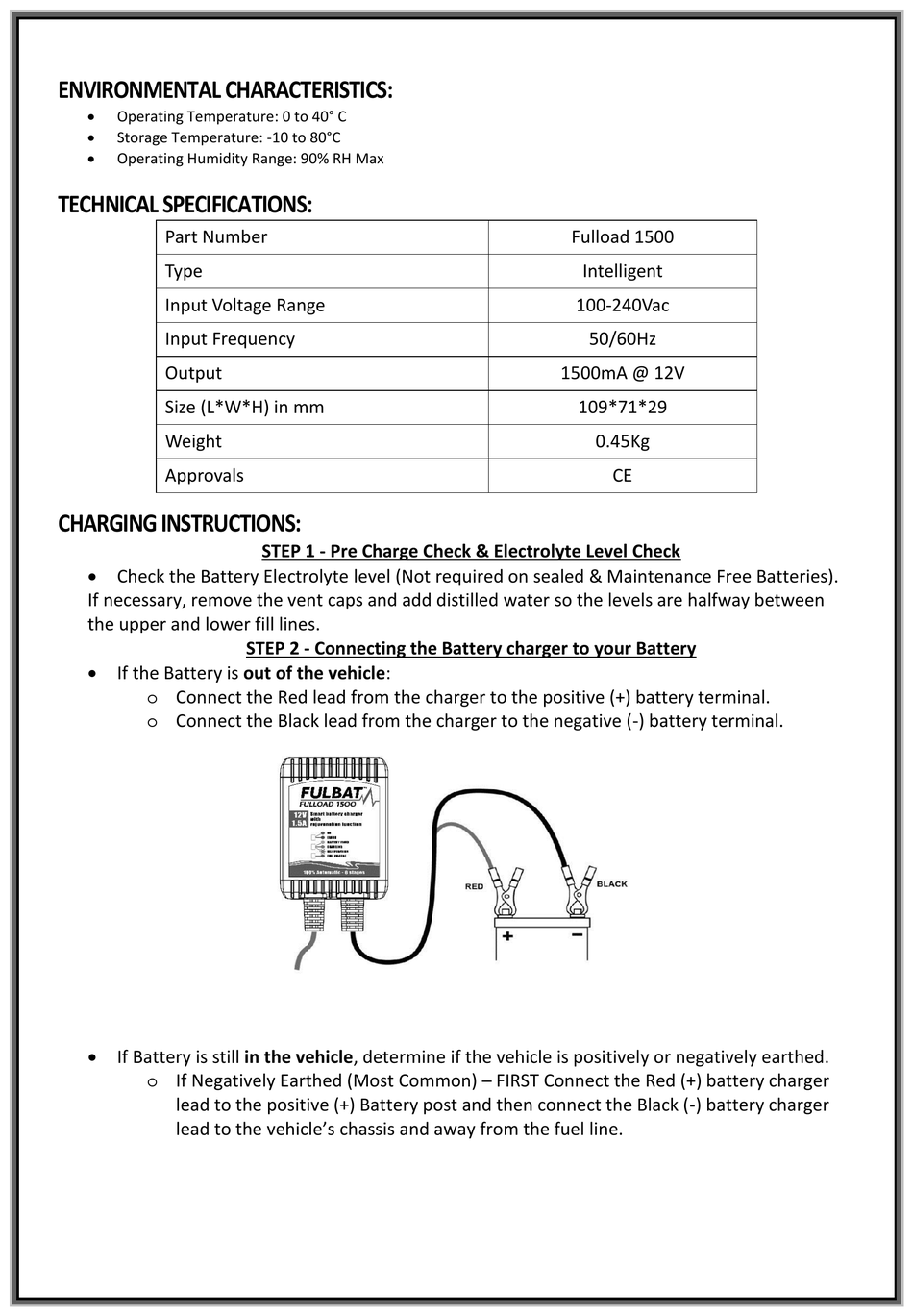

Technical Specifications; Charging Instructions - Fulbat Fulload 1500 Benutzerhandbuch

ENVIRONMENTAL CHARACTERISTICS:

Operating Temperature: 0 to 40° C

Storage Temperature: -10 to 80°C

Operating Humidity Range: 90% RH Max

TECHNICAL SPECIFICATIONS:

Part Number
Type
Input Voltage Range
Input Frequency
Output
Size (L*W*H) in mm
Weight
Approvals

CHARGING INSTRUCTIONS:

 Check the Battery Electrolyte level (Not required on sealed & Maintenance Free Batteries).
If necessary, remove the vent caps and add distilled water so the levels are halfway between
the upper and lower fill lines.
 If the Battery is out of the vehicle:
o Connect the Red lead from the charger to the positive (+) battery terminal.
o Connect the Black lead from the charger to the negative (-) battery terminal.
 If Battery is still in the vehicle, determine if the vehicle is positively or negatively earthed.
o If Negatively Earthed (Most Common) – FIRST Connect the Red (+) battery charger
lead to the positive (+) Battery post and then connect the Black (-) battery charger
lead to the vehicle's chassis and away from the fuel line.
STEP 1 - Pre Charge Check & Electrolyte Level Check
STEP 2 - Connecting the Battery charger to your Battery
Fulload 1500
Intelligent
100-240Vac
50/60Hz
1500mA @ 12V
109*71*29
0.45Kg
CE
