D-Link DWL-P200 Schnellinstallationsanleitung

Warning: Please follow the
instructions in this guide carefully.
Connecting these adapters
incorrectly may result in damage to
you network devices.
About Power Over Ethernet.
The DWL-P200 Power Over Ethernet (POE) Adapters are designed to supply
operational power to a Network Device. These adapters eliminate the need to use an
additional AC/DC power supply at the Network Device giving you the ability to mount an
Network Device virtually anywhere in a building where power outlets are not available,
( for example in, ceilings, attics). D-Link's DWL-P200 Adapters take advantage of the
unused cable pairs within Ethernet Cat 5 cabling. The Base Unit inserts DC voltage into
the unused wires therefore allowing the single Category 5 cable to carry both Ethernet
data and DC power to an Network Device. The POE Terminal Unit splits the data and
DC power apart, which is then supplied to the Network Device.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2012 D-Link Company. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice.

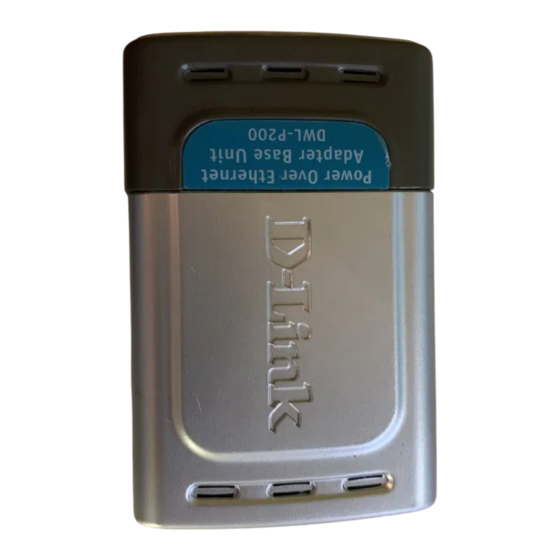

DWL-P200 Base Unit and Terminal Unit
Ethernet (CAT5 UTP/Straight Through) Cable
Female-to-Female Power Connector
48V DC Power Adapter
DWL-P200
Power Over
Ethernet Adapters
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
