1. Control Elements

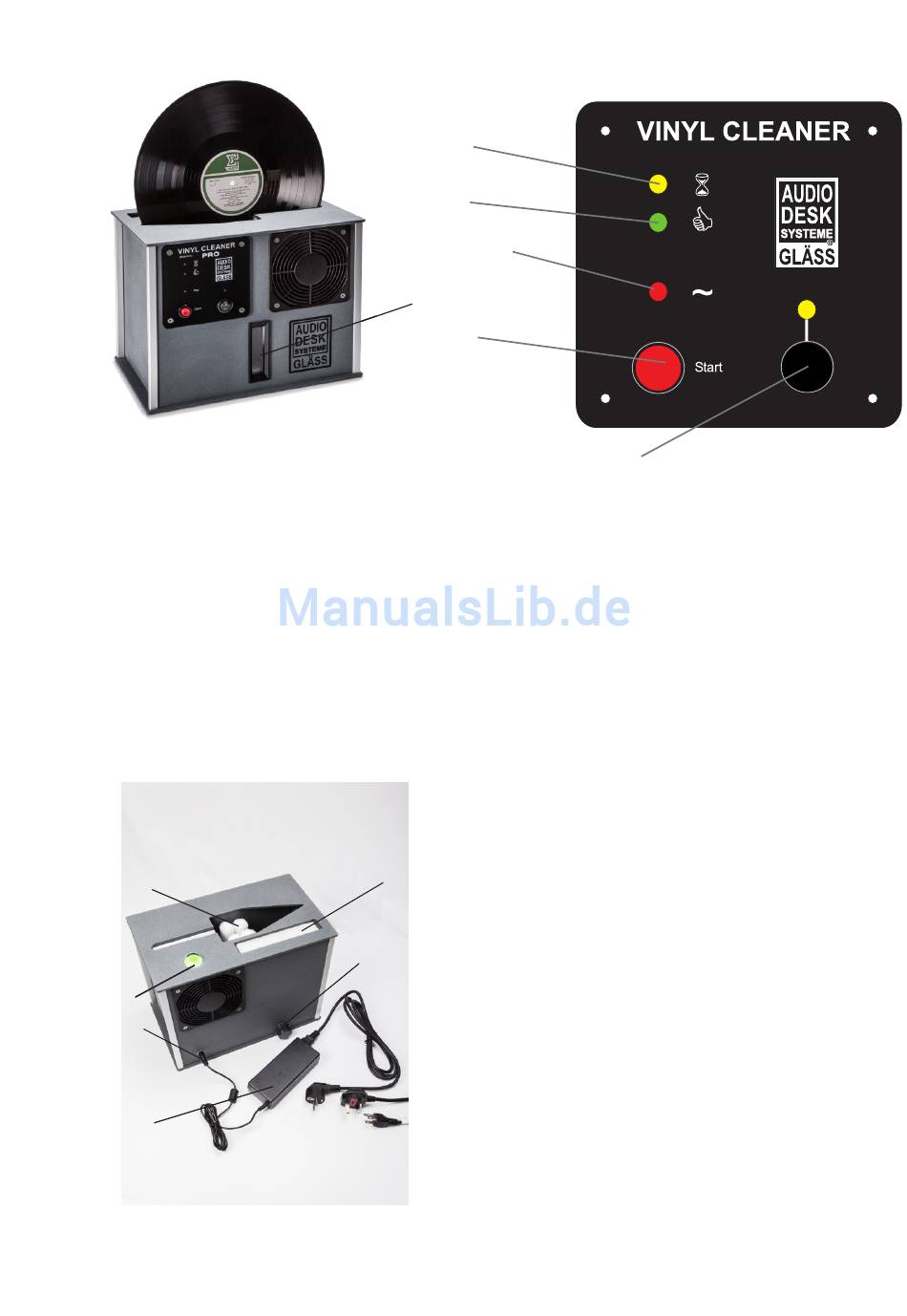

Picture 1: Front view
1 The yellow LED (1) lights up when the cleaning procedure is underway.
2 The green LED (2) lights up when the apparatus is ready for use or when the
cleaning process is completed and the cleaned disc can be removed.
3 The red LED (3) is for safety purposes. It lights up when the apparatus has
insufficient liquid and when it needs to be refilled.
4 Red starter button to begin the cleaning process.
5 Main switch with operation display.
6 Level indicator. The float must touch the top edge of the level-indicating
window prior to cleaning.
7
8
9
10
Picture 3: Rear view
( with call outs )
6
12
11
1
2
3
4
7 Cleaning barrels
8 Spirit-level
9 Electrical connection
(+ 24 V, Middle = plus terminal)
10 AC/DC power supply (separate)
11 Milled srew (outlet valve)
12 Filter cover with fluid filter
underneath
Page 2
PRO
ON
OFF
Picture 2: Display
