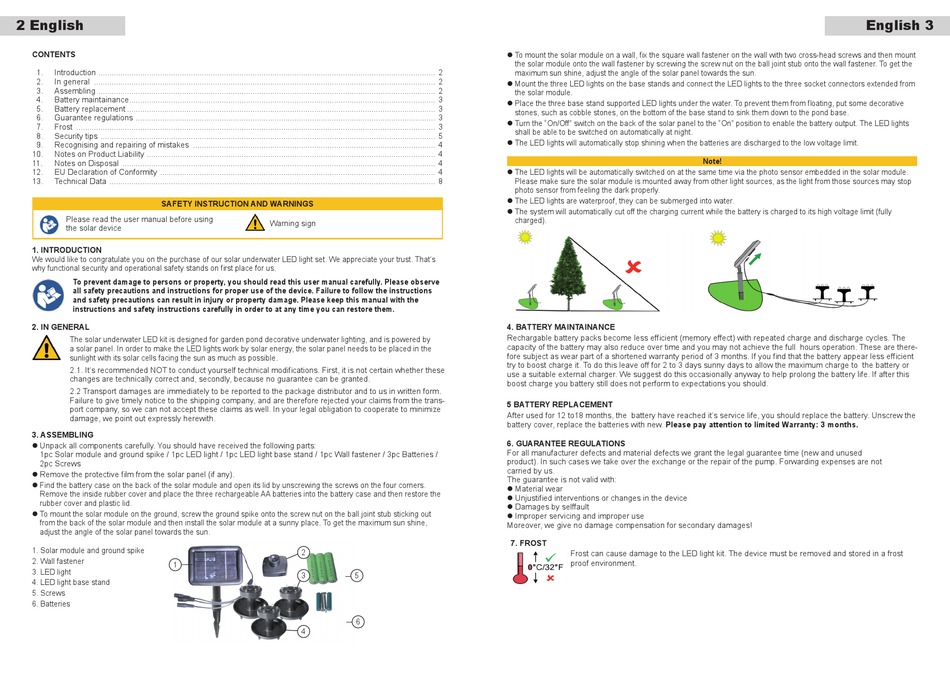

2 English
CONTENTS
1.
Introduction ......................................................................................................................................................... 2
2.
In general ........................................................................................................................................................... 2
3.
Assembling ......................................................................................................................................................... 2
4.
Battery maintainance........................................................................................................................................... 3
5.
Battery replacement ............................................................................................................................................ 3
6.
Guarantee regulations ........................................................................................................................................ 3
7.
Frost ................................................................................................................................................................... 3
8.
Security tips ........................................................................................................................................................ 5
9.
Recognising and repairing of mistakes .............................................................................................................. 4
10.
Notes on Product Liability ................................................................................................................................... 4
11.
Notes on Disposal .............................................................................................................................................. 4
12.
EU Declaration of Conformity ............................................................................................................................. 4
13.
Technical Data .................................................................................................................................................... 8
SAFETY INSTRUCTION AND wARNINGS
Please read the user manual before using
the solar device
1. INTRODUCTION
We would like to congratulate you on the purchase of our solar underwater LED light set. We appreciate your trust. That's
why functional security and operational safety stands on fi rst place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the device. Failure to follow the instructions
and safety precautions can result in injury or property damage. Please keep this manual with the
instructions and safety instructions carefully in order to at any time you can restore them.
2. IN GENERAL
The solar underwater LED kit is designed for garden pond decorative underwater lighting, and is powered by
a solar panel. In order to make the LED lights work by solar energy, the solar panel needs to be placed in the
sunlight with its solar cells facing the sun as much as possible.
2.1. It's recommended NOT to conduct yourself technical modifi cations. First, it is not certain whether these
changes are technically correct and, secondly, because no guarantee can be granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in written form.
Failure to give timely notice to the shipping company, and are therefore rejected your claims from the trans-
port company, so we can not accept these claims as well. In your legal obligation to cooperate to minimize
damage, we point out expressly herewith.
3. ASSEmBLING
l Unpack all components carefully. You should have received the following parts:
1pc Solar module and ground spike / 1pc LED light / 1pc LED light base stand / 1pc Wall fastener / 3pc Batteries /
2pc Screws
l Remove the protective fi lm from the solar panel (if any).
l Find the battery case on the back of the solar module and open its lid by unscrewing the screws on the four corners.
Remove the inside rubber cover and place the three rechargeable AA batteries into the battery case and then restore the
rubber cover and plastic lid.
l To mount the solar module on the ground, screw the ground spike onto the screw nut on the ball joint stub sticking out
from the back of the solar module and then install the solar module at a sunny place. To get the maximum sun shine,
adjust the angle of the solar panel towards the sun.
1. Solar module and ground spike
2. Wall fastener
1
3. LED light
4. LED light base stand
5. Screws
6. Batteries
Warning sign
2
3
5
6
4
l To mount the solar module on a wall, fi x the square wall fastener on the wall with two cross-head screws and then mount
the solar module onto the wall fastener by screwing the screw nut on the ball joint stub onto the wall fastener. To get the
maximum sun shine, adjust the angle of the solar panel towards the sun.
l Mount the three LED lights on the base stands and connect the LED lights to the three socket connectors extended from
the solar module.
l Place the three base stand supported LED lights under the water. To prevent them from fl oating, put some decorative
stones, such as cobble stones, on the bottom of the base stand to sink them down to the pond base.
l Turn the "On/Off" switch on the back of the solar panel to the "On" position to enable the battery output. The LED lights
shall be able to be switched on automatically at night.
l The LED lights will automatically stop shining when the batteries are discharged to the low voltage limit.
l The LED lights will be automatically switched on at the same time via the photo sensor embedded in the solar module.
Please make sure the solar module is mounted away from other light sources, as the light from those sources may stop
photo sensor from feeling the dark properly.
l The LED lights are waterproof, they can be submerged into water.
l The system will automatically cut off the charging current while the battery is charged to its high voltage limit (fully
charged).
4. BATTERY mAINTAINANCE
Rechargable battery packs become less effi cient (memory effect) with repeated charge and discharge cycles. The
capacity of the battery may also reduce over time and you may not achieve the full hours operation. These are there-
fore subject as wear part of a shortened warranty period of 3 months. If you fi nd that the battery appear less effi cient
try to boost charge it. To do this leave off for 2 to 3 days sunny days to allow the maximum charge to the battery or
use a suitable external charger. We suggest do this occasionally anyway to help prolong the battery life. If after this
boost charge you battery still does not perform to expectations you should.
5 BATTERY REPLACEmENT
After used for 12 to18 months, the battery have reached it's service life, you should replace the battery. Unscrew the
battery cover, replace the batteries with new. Please pay attention to limited warranty: 3 months.
6. GUARANTEE REGULATIONS
For all manufacturer defects and material defects we grant the legal guarantee time (new and unused
product). In such cases we take over the exchange or the repair of the pump. Forwarding expenses are not
carried by us.
The guarantee is not valid with:
l Material wear
l Unjustifi ed interventions or changes in the device
l Damages by selffault
l Improper servicing and improper use
Moreover, we give no damage compensation for secondary damages!
7. FROST
Frost can cause damage to the LED light kit. The device must be removed and stored in a frost
proof environment.
English 3
Note!
