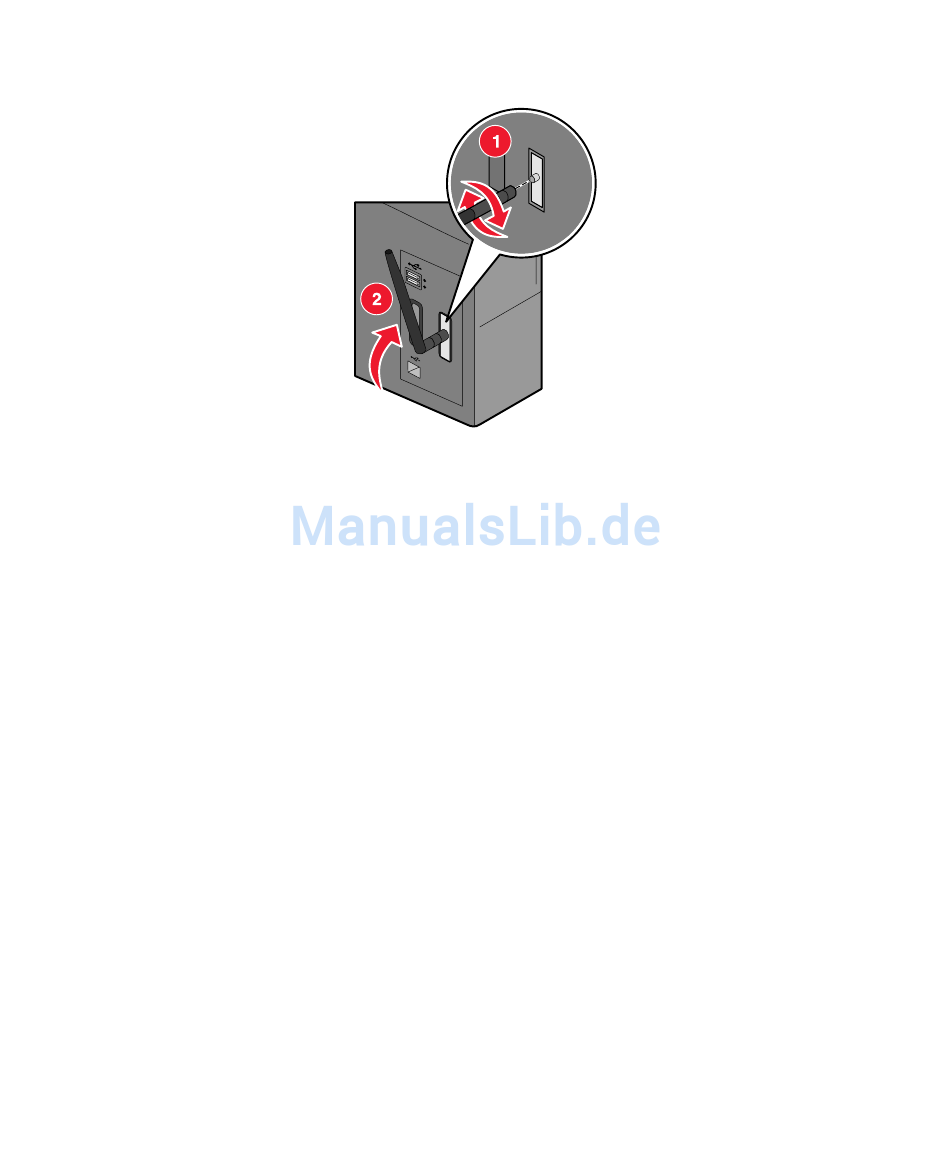

Once the print server is installed, attach the antenna to the option card. Make sure to tighten the connector until the
antenna is attached securely, as a loose connection can result in a poor wireless signal. Then, bend the joint until the
antenna is pointing up.
Note: Some printer configurations create space restrictions that may require the antenna be attached before
installing the option card.
Step 3: Connecting the USB
1
Replace any panel(s) or hardware that was removed.
2
Close all printer doors.
3
Turn the printer on.
cable
Connecting the USB cable
2
